RIEGLER Pressure regulator pneumatic remote controlled »Standard« G 1 1/2
Type number: 637.305
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pneumatic remote-controlled pressure regulator "Standard" made of aluminum, for compressed air preparation - Type 637.305
The RIEGLER pneumatic remote-controlled pressure regulator "Standard", G 1 1/2 reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of aluminum with NBR seals. The maximum inlet pressure is 40 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 31500 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 40 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | Standard |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Connection for pneumat. Remote control | G 1/4 |
| Thread | G 1 1/2 |
| Flow rate | 31500 l/min |

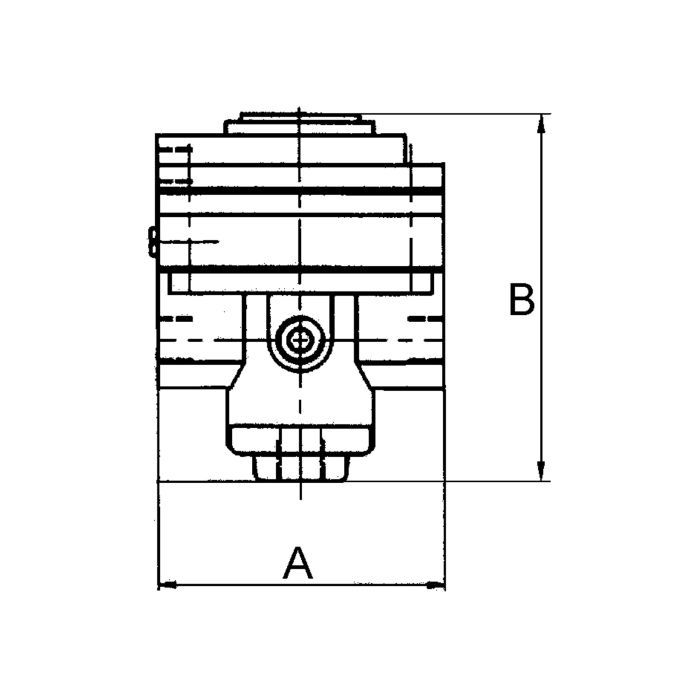

| A | 125 mm |
| B | 123 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101254] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 1](/web/image/product.template/140689/image_128/%5B101254%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%201?unique=e6205f9)
|
Type number: 637.303 |
200.27 € | |
![[101255] RIEGLER Pressure regulator pneumatic remote controlled »Standard« G 1 1/4](/web/image/product.template/140690/image_128/%5B101255%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%20G%201%201-4?unique=8a2aad6)
|
Type number: 637.304 |
337.53 € | |

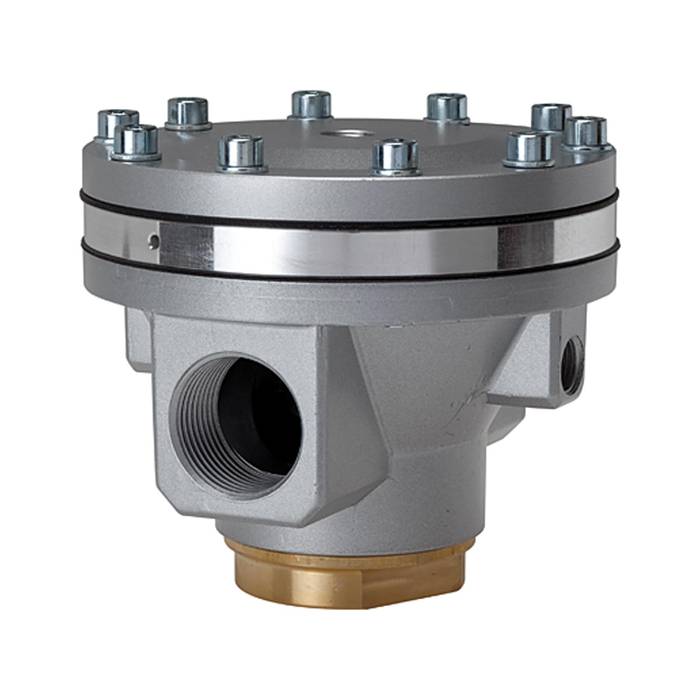

![[101252] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 1/2](/web/image/product.template/140687/image_128/%5B101252%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%201-2?unique=8e19a98)
|
Type number: 637.301 |
130.84 € | |
![[101257] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 2](/web/image/product.template/140692/image_128/%5B101257%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%202?unique=875133f)
|
Type number: 637.306 |
675.30 € | |
![[101253] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 3/4](/web/image/product.template/140688/image_128/%5B101253%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%203-4?unique=5e1789c)
|
Type number: 637.302 |
210.02 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

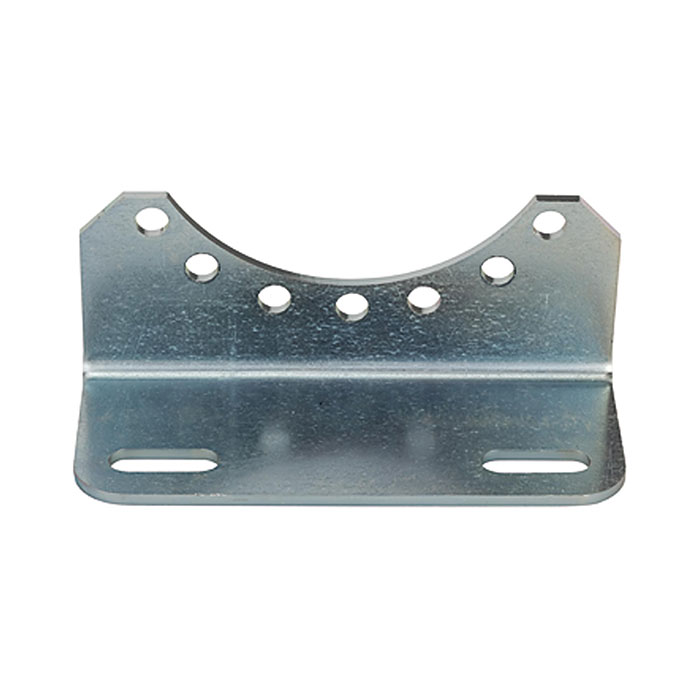

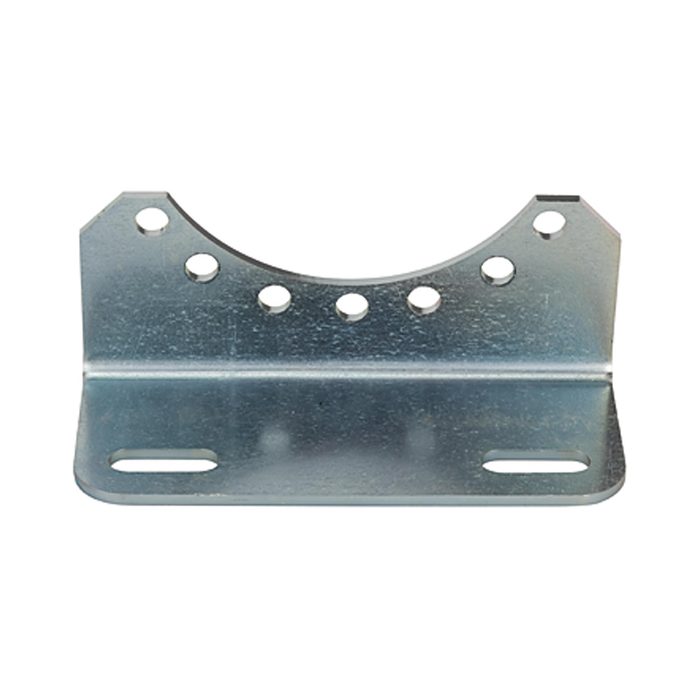

![[100845] RIEGLER Mounting bracket](/web/image/product.template/140282/image_128/%5B100845%5D%20RIEGLER%20Mounting%20bracket?unique=9c13f9d)
|
Type number: H 86 |
9.47 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

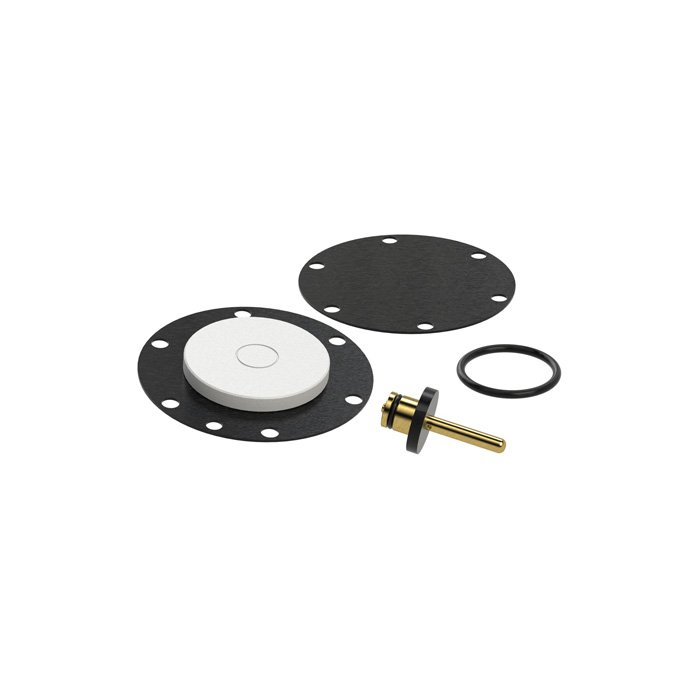

![[130048] RIEGLER Wear parts kit, f. Pneumatic remote pressure regulator "Standard"](/web/image/product.template/273183/image_128/%5B130048%5D%20RIEGLER%20Wear%20parts%20kit%2C%20f.%20Pneumatic%20remote%20pressure%20regulator%20%22Standard%22?unique=9933aa5)
|
