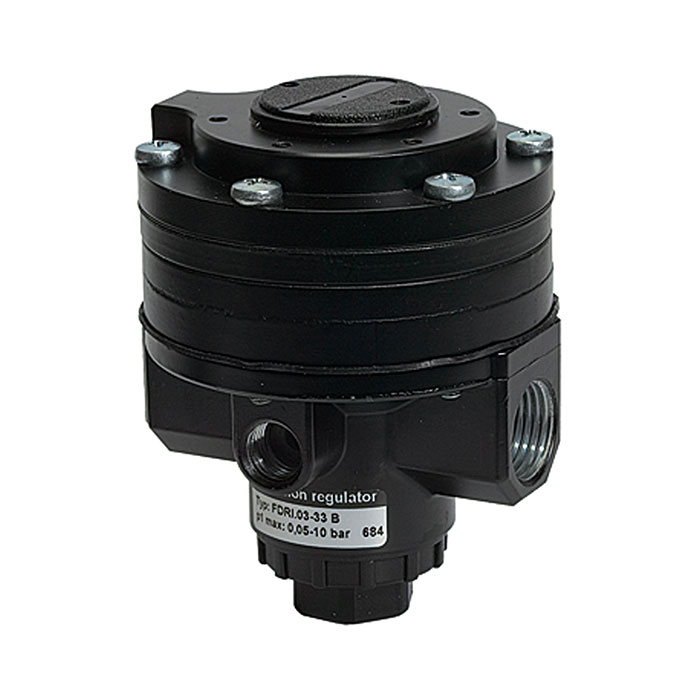

RIEGLER Precision pressure regulator, Pneumat. remote controlled, G 1/2
Type number: 637.603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision pressure regulator made of die-cast zinc, painted black, for compressed air preparation - Type 637.603
The RIEGLER precision pressure regulator, pneum. remote-controlled, G 1/2, 0.05 - 7 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc, painted black with NBR seals. The control range extends from 0.05 bar to 7 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -35 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. Suitable for ultra-fine filtered, non-lubricated compressed air (0.01 µm). The flow rate is 3000 l/min (at P1 = 5 bar, P2 = 3 bar and pressure drop Δp ≤ 0.1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Medium | ultra-fine filtered, unlubricated compressed air (0.01 µm) |
| Housing | Zinc die-cast, painted black |
| Sealing material | NBR |
| Intrinsic air consumption max. | 6 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 5 bar, P<sub>2</sub> = 3 bar and pressure drop Î"<sub>p</sub> ‰¤ 0.1 bar |
| Medium temperature min. | -35 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -35 °C |
| Ambient temperature max. | 60 °C |
| Flow rate | 3000 l/min |
| Pressure gauge connection | G 1/4 |
| Control pressure max. | 10 bar |
| Pilot air connection | G 1/8 |
| Thread | G 1/2 |
| Control range min. | 0.05 bar |
| Control range max. | 7 bar |
| A | 82 mm |
| B | 108 mm |
| C | 64.5 mm |
| D | 43.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 3/8 (for silencer mounting) |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-I, 6b-II, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | FLEX |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=97ac489)
|
Type number: 217-KD |
6.25 € | |

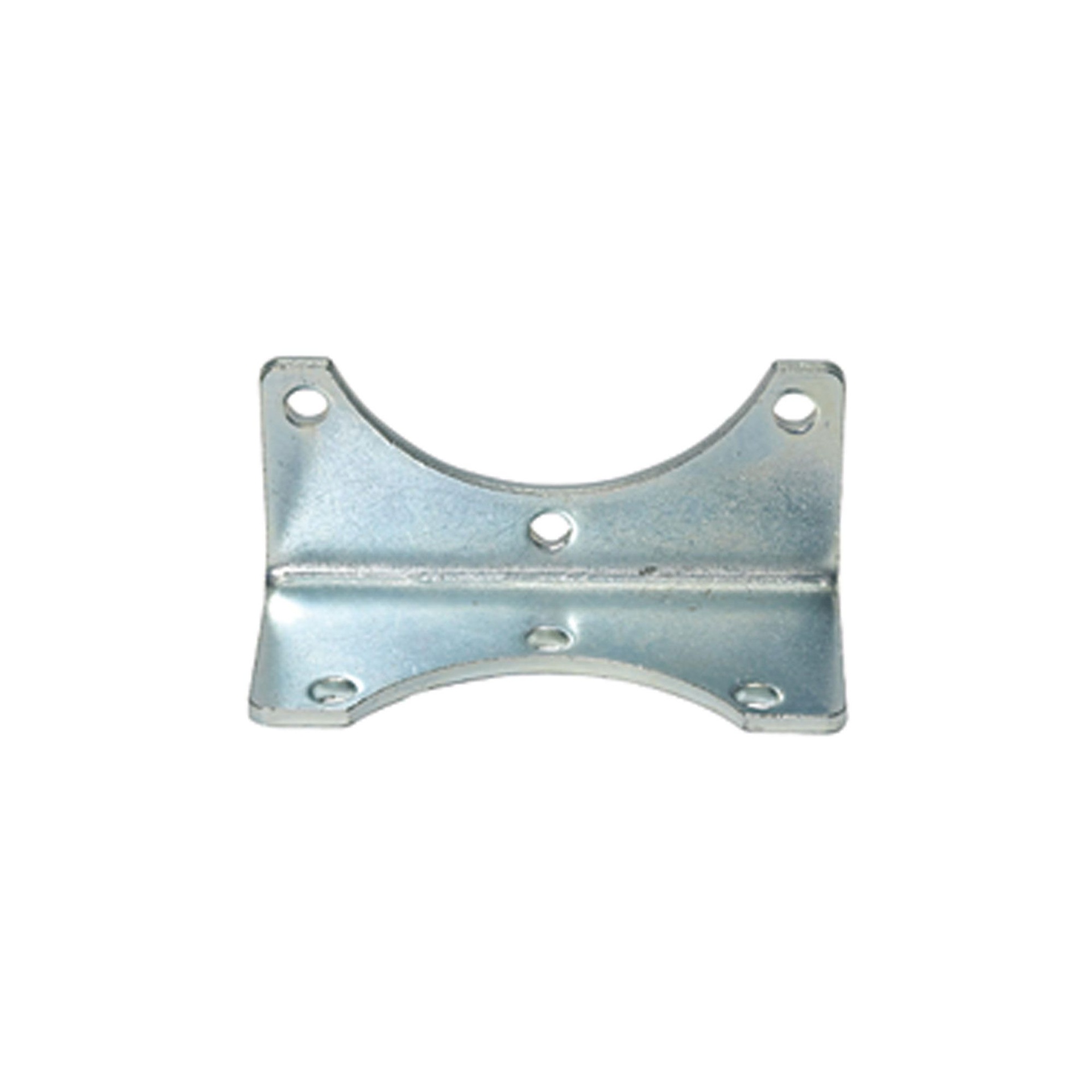

![[100840] RIEGLER Mounting bracket with screws](/web/image/product.template/140276/image_128/%5B100840%5D%20RIEGLER%20Mounting%20bracket%20with%20screws?unique=bb9f710)
|
Type number: H 822 |
7.98 € | |

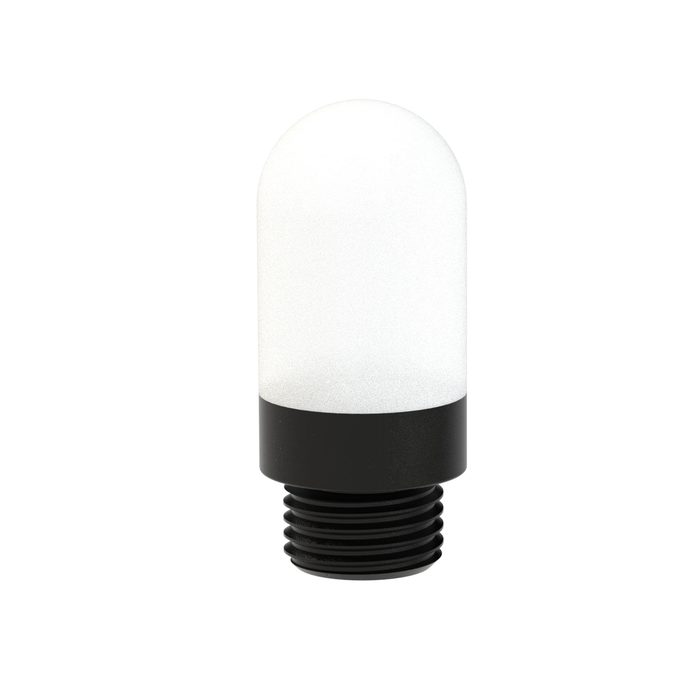

![[101242] RIEGLER Plastic silencer, G 3/8, Pore width max. 50 µm](/web/image/product.template/140677/image_128/%5B101242%5D%20RIEGLER%20Plastic%20silencer%2C%20G%203-8%2C%20Pore%20width%20max.%2050%20%C2%B5m?unique=03dd23e)
|
