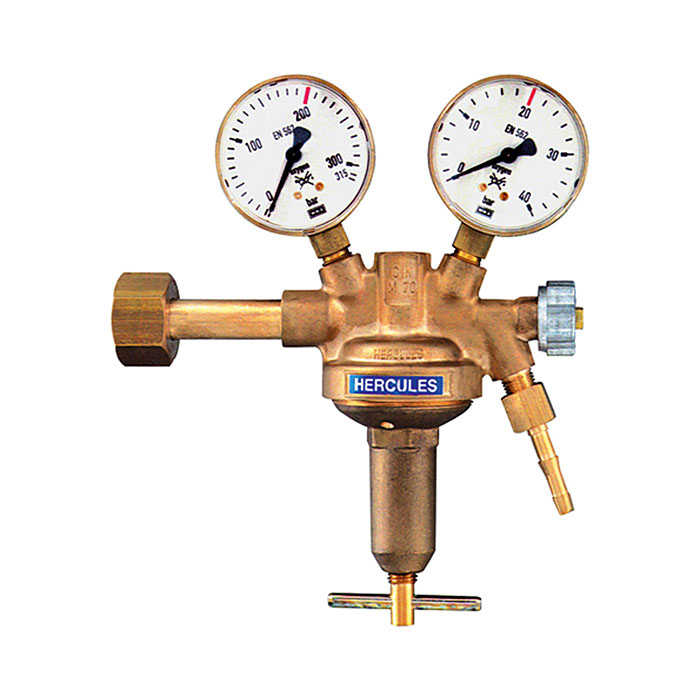

RIEGLER Flange pressure controller 300 bar, Combustible gas, 0 - 10 bar
Type number: 488.43
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressed brass cylinder pressure regulator, for welding, max. 10 bar – Type 488.43
The RIEGLER cylinder pressure regulator, 300 bar, fuel gas, working pressure 0–10 bar, supports professional welding and brazing work with pressure regulators and accessories. The housing is made of die-cast brass. The operating pressure range is 0 bar to 10 bar. Display range: 0–300/400 bar—for precise measurement results. Precise gas regulation for clean welds.
Scope of Application
Typical applications: oxy-fuel welding, brazing, and gas-oxygen welding.
| Housing | Pressed brass |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Bottle connection | W 30 x 2 left |
| Gas type | Fuel gas |
| REACH SVHC1 Substance Name | Lead |
| Display area | 0 - 300/400 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

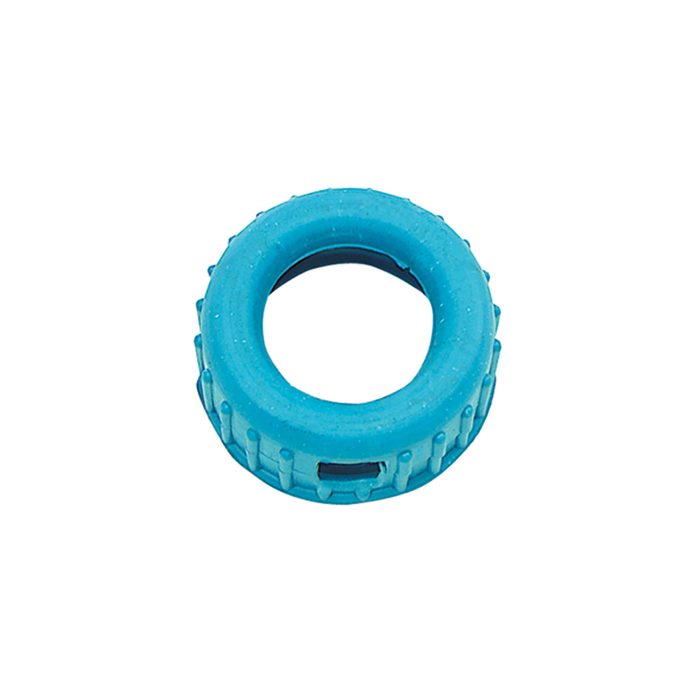

![[101301] RIEGLER Pressure gauge - safety cap, rubber, for pressure gauge Ø 63](/web/image/product.template/169275/image_128/%5B101301%5D%20RIEGLER%20Pressure%20gauge%20-%20safety%20cap%2C%20rubber%2C%20for%20pressure%20gauge%20%C3%98%2063?unique=c86b14d)
|
Type number: GS 30 |
1.75 € | |
![[101302] RIEGLER Pressure gauge - safety cap, rubber, for pressure gauge Ø 63](/web/image/product.template/169276/image_128/%5B101302%5D%20RIEGLER%20Pressure%20gauge%20-%20safety%20cap%2C%20rubber%2C%20for%20pressure%20gauge%20%C3%98%2063?unique=f96bb14)
|
Type number: GS 31 |
1.75 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101291] RIEGLER Pressure gauge neutral gases, G1/4 radial bottom,0-10/16bar,Ø63mm](/web/image/product.template/169265/image_128/%5B101291%5D%20RIEGLER%20Pressure%20gauge%20neutral%20gases%2C%20G1-4%20radial%20bottom%2C0-10-16bar%2C%C3%9863mm?unique=7edb99b)
|
Type number: 421 |
19.39 € | |
![[101295] RIEGLER Pressure gauge neutral gases, G1/4 radial bottom,0-400 bar,Ø63 mm](/web/image/product.template/169269/image_128/%5B101295%5D%20RIEGLER%20Pressure%20gauge%20neutral%20gases%2C%20G1-4%20radial%20bottom%2C0-400%20bar%2C%C3%9863%20mm?unique=9d6e72b)
|
Type number: 425 |
21.10 € | |

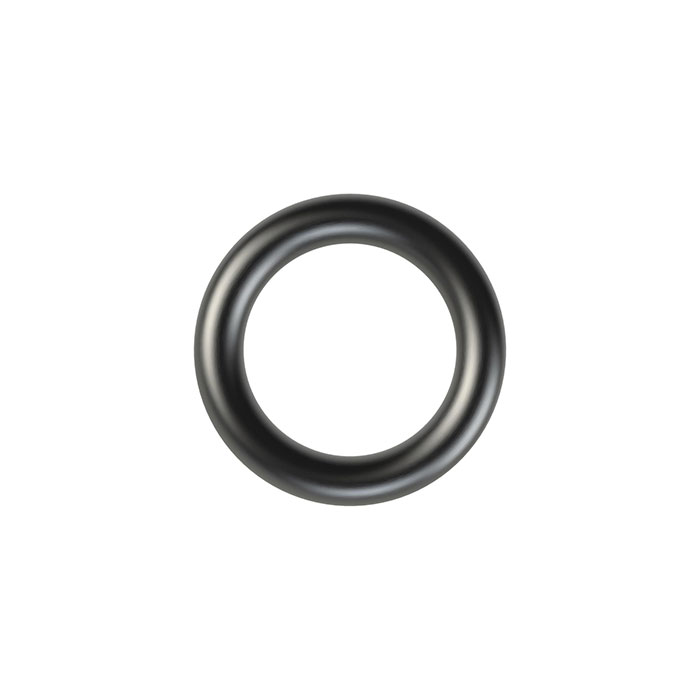

![[155238] RIEGLER Replacement seal for flange pressure controller 300 bar](/web/image/product.template/212570/image_128/%5B155238%5D%20RIEGLER%20Replacement%20seal%20for%20flange%20pressure%20controller%20300%20bar?unique=e6618e3)
|
Part Number: 488.4.942 |
4.21 € | |
