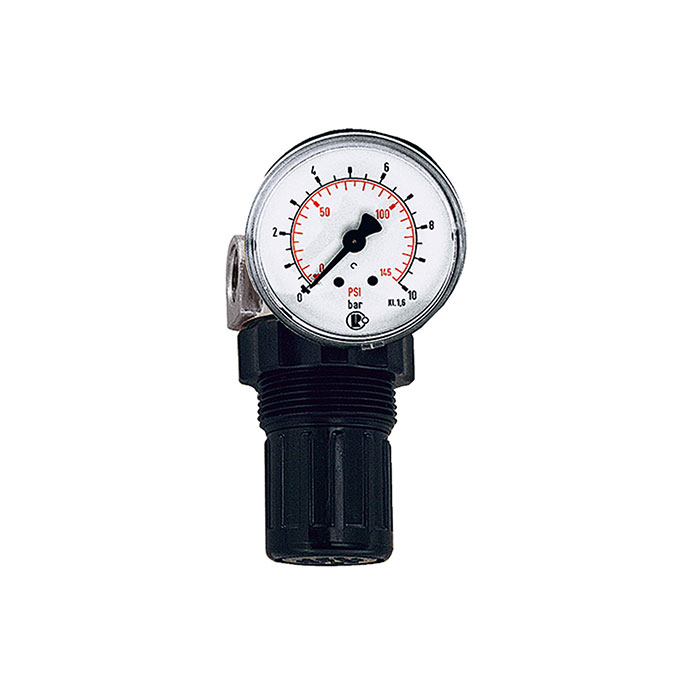

RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.5 - 10 bar
Type number: 484.10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

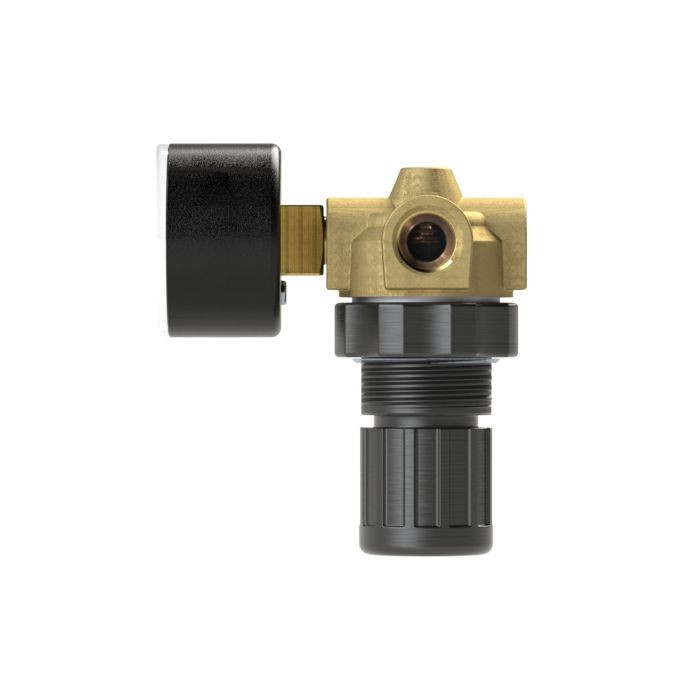

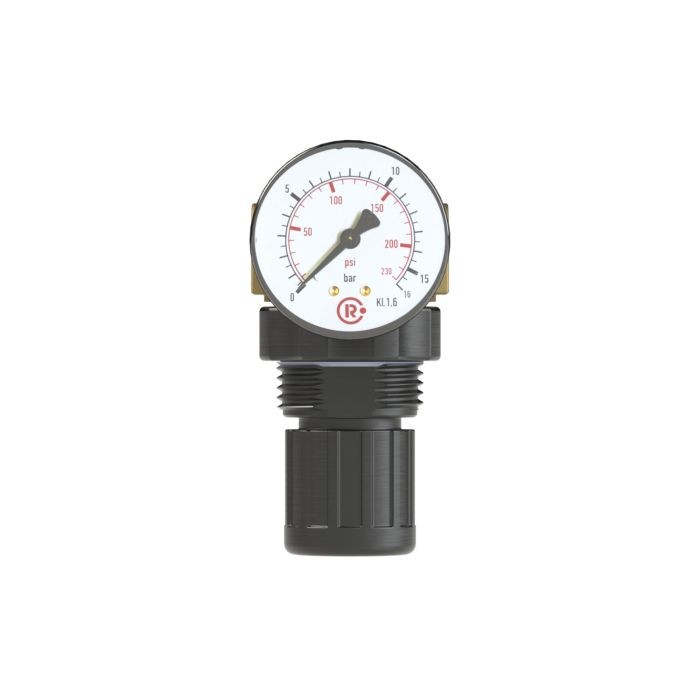

RIEGLER Pressure regulator for water made of brass, 0.5 bar - Type 484.10
The RIEGLER pressure regulator for water, incl. Mano, G 1/4, 0.5-10 bar, PE max.25 reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. The control range extends from 0.5 bar to 10 bar at an inlet pressure of max. 25 bar. The permissible medium temperature is between 3 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 18 l/min (at P1 = 6 bar, P2 = 5 bar (water) and pressure drop Δp=4 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 25 bar |
| Housing | Brass |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 6 bar, P<sub>2 </sub>= 5 bar (water) and pressure drop Î"<sub>p</sub>=4 bar |
| Medium temperature min. | 3 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 3 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM |
| Flow rate | 18 l/min |
| Thread | G 1/4 |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |

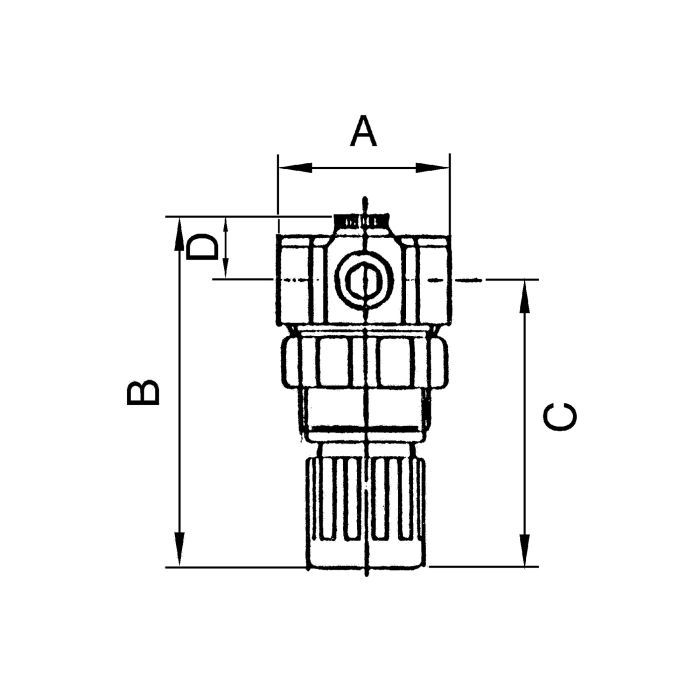

| A | 40 mm |
| B | 78 mm |
| C | 63 mm |
| D | 15 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101303] RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.1 - 3 bar](/web/image/product.template/169277/image_128/%5B101303%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-4%2C%200.1%20-%203%20bar?unique=9df1fd7)
|
Type number: 484.03 |
43.26 € | |
![[101304] RIEGLER Pressure regulator for water, pressure gauge, G 1/4, 0.2 - 6 bar](/web/image/product.template/169278/image_128/%5B101304%5D%20RIEGLER%20Pressure%20regulator%20for%20water%2C%20pressure%20gauge%2C%20G%201-4%2C%200.2%20-%206%20bar?unique=324bd4e)
|
Type number: 484.06 |
43.26 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100344] RIEGLER Mounting bracket with nut M30x1.5](/web/image/product.template/139778/image_128/%5B100344%5D%20RIEGLER%20Mounting%20bracket%20with%20nut%20M30x1.5?unique=16512a1)
|
Type number: MV 30 |
5.03 € | |
![[100345] RIEGLER Control panel nut M30x1.5, for »multifix-mini« and »multifix«](/web/image/product.template/139779/image_128/%5B100345%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBmultifix-mini%C2%AB%20and%20%C2%BBmultifix%C2%AB?unique=e2a6bfe)
|
Type number: R 11-55 |
1.63 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=90e294e)
|
Type number: 110.47-KD |
6.10 € | |

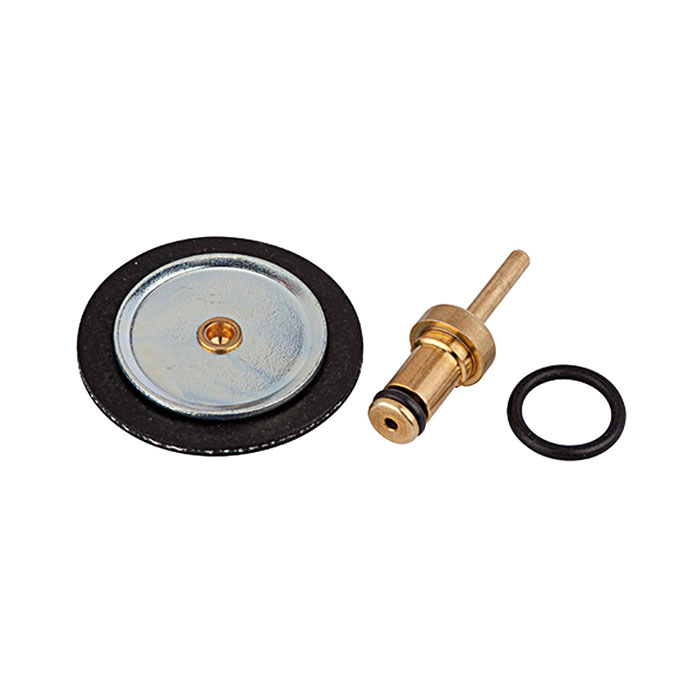

![[101306] RIEGLER Wear part set, for pressure regulator for water](/web/image/product.template/169280/image_128/%5B101306%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20for%20water?unique=32bf1a8)
|
