RIEGLER Pressure regulator, potable water DVGW tested, R 1 1/4, 1.5-6 bar
Type number: 100.04
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for drinking water made of brass, for compressed air treatment, 1.5 bar - Type 100.04
The RIEGLER pressure regulator for drinking water, DVGW-approved, R 1 1/4, 1.5-6 bar, PE max.16 reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. The control range extends from 1.5 bar to 6 bar with an inlet pressure of max. 16 bar. The operating temperature is between 2 °C and 30 °C. Connection thread R 1 1/4 - suitable for common industry standards. Suitable for drinking water, nitrogen, compressed air, neutral liquids. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 16 bar |
| Medium | Drinking water, nitrogen, compressed air, neutral liquids |
| Housing | Brass |
| Sealing material | NBR |
| Spring cover | Plastic |
| Sieve cup | Transparent sieve cup |
| Operating temperature min. | 2 °C |
| Operating temperature max. | 30 °C |
| Thread | R 1 1/4 |
| Control range min. | 1.5 bar |
| Control range max. | 6 bar |
| Flow rate kvs-value | 9.1 m³/h |
| Note | With a brass strainer cup, the maximum inlet pressure increases to 25 bar |
| A | 200 mm |
| B | 175 mm |
| C | 111 mm |
| D | 64 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101364] RIEGLER Pressure regulator, potable water DVGW tested, R 1 1/2, 1.5-6 bar](/web/image/product.template/169338/image_128/%5B101364%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%20DVGW%20tested%2C%20R%201%201-2%2C%201.5-6%20bar?unique=4c19450)
|
Type number: 100.05 |
382.24 € | |

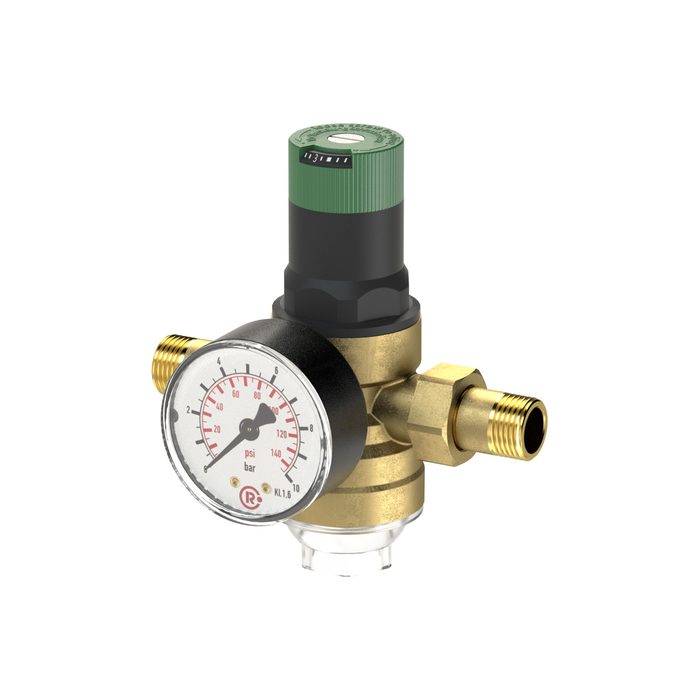

![[101362] RIEGLER Pressure regulator, potable water, DVGW tested, R 1, 1.5 - 6 bar](/web/image/product.template/169336/image_128/%5B101362%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20tested%2C%20R%201%2C%201.5%20-%206%20bar?unique=6dc593e)
|
Type number: 100.03 |
148.05 € | |
![[101360] RIEGLER Pressure regulator, potable water, DVGW tested, R 1/2, 1.5-6 bar](/web/image/product.template/169334/image_128/%5B101360%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20tested%2C%20R%201-2%2C%201.5-6%20bar?unique=13f2954)
|
Type number: 100.01 |
120.70 € | |
![[101365] RIEGLER Pressure regulator, potable water, DVGW tested, R 2, 1.5 - 6 bar](/web/image/product.template/169339/image_128/%5B101365%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20tested%2C%20R%202%2C%201.5%20-%206%20bar?unique=af9b835)
|
Type number: 100.06 |
457.67 € | |

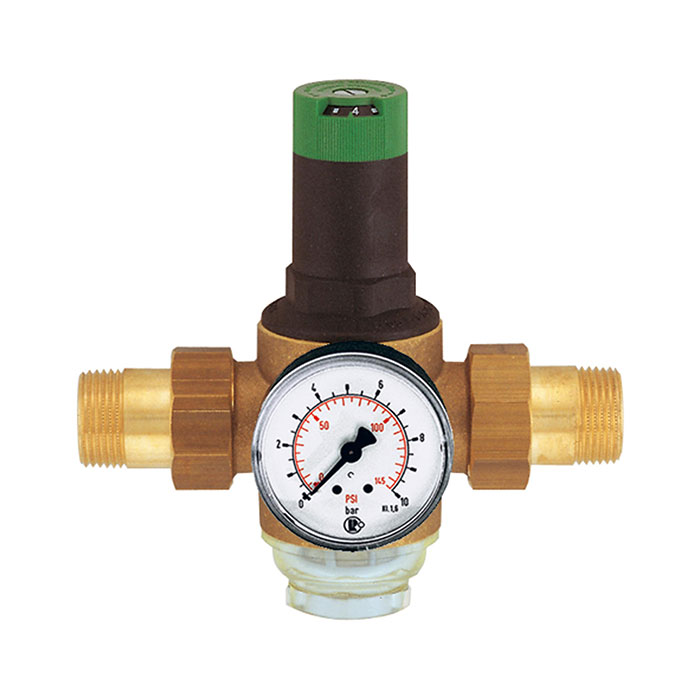

![[101361] RIEGLER Pressure regulator, potable water, DVGW tested, R 3/4, 1.5-6 bar](/web/image/product.template/169335/image_128/%5B101361%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20tested%2C%20R%203-4%2C%201.5-6%20bar?unique=42a1694)
|
Type number: 100.02 |
131.57 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

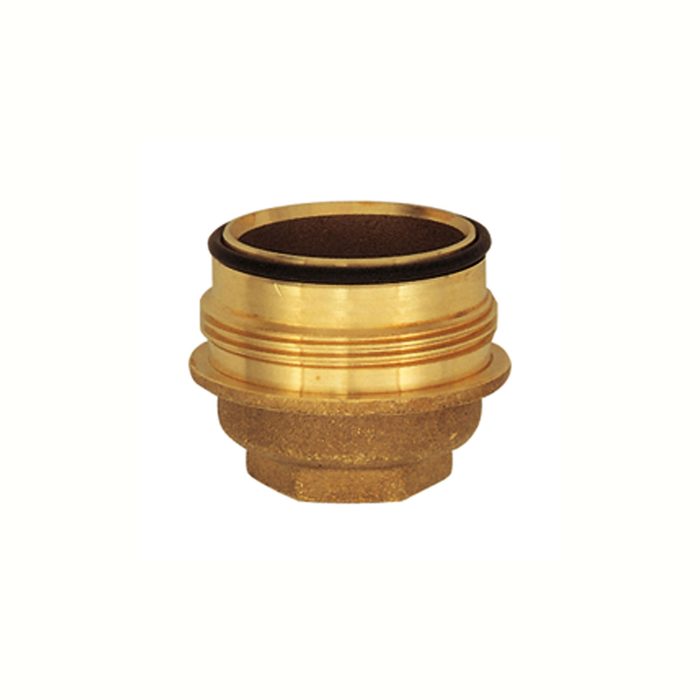

![[101385] RIEGLER Brass sieve cup, for pressure reg. potable water, R 1 and R 1 1/4](/web/image/product.template/169359/image_128/%5B101385%5D%20RIEGLER%20Brass%20sieve%20cup%2C%20for%20pressure%20reg.%20potable%20water%2C%20R%201%20and%20R%201%201-4?unique=6479a01)
|
Type number: 100/264 |
63.59 € | |

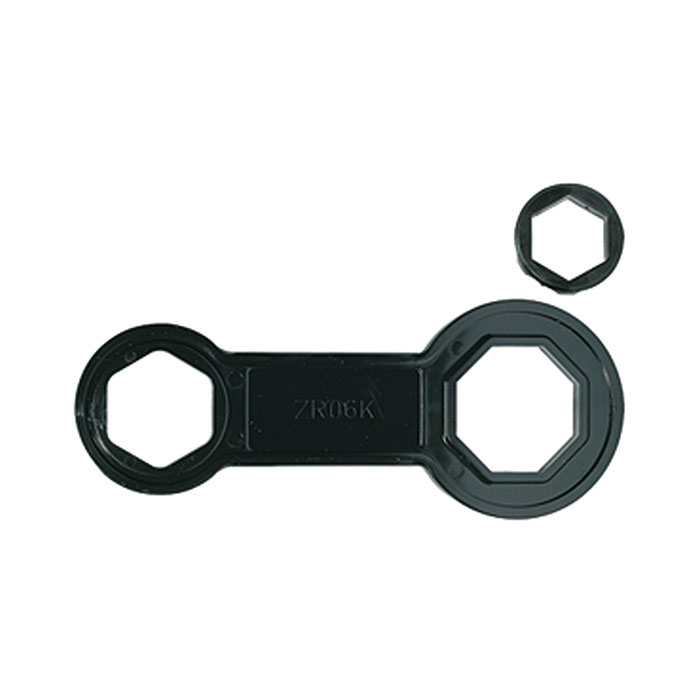

![[101387] RIEGLER Spanner, for pressure regulator for potable water, R 1/2 to R 2](/web/image/product.template/169361/image_128/%5B101387%5D%20RIEGLER%20Spanner%2C%20for%20pressure%20regulator%20for%20potable%20water%2C%20R%201-2%20to%20R%202?unique=06bdf4e)
|
Type number: ZR 06 A |
34.90 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=97ac489)
|
Type number: 217-KD |
6.25 € | |

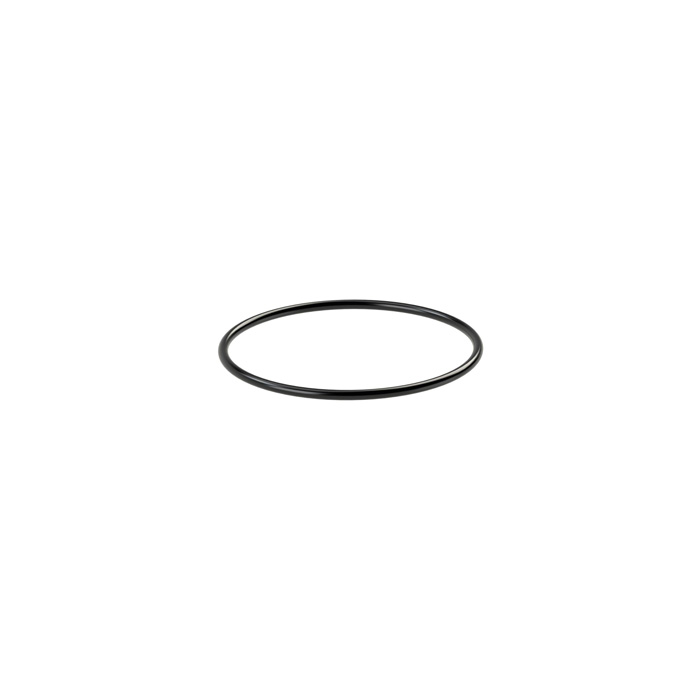

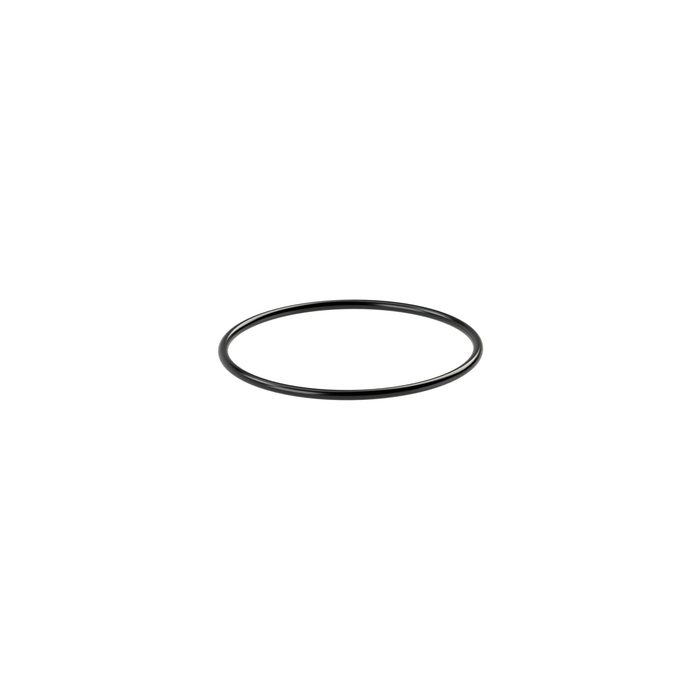

![[130047] RIEGLER O-ring set, R 1, R 1 1/4, PU 10 pcs.](/web/image/product.template/273182/image_128/%5B130047%5D%20RIEGLER%20O-ring%20set%2C%20R%201%2C%20R%201%201-4%2C%20PU%2010%20pcs.?unique=d4c34c8)
|
Type number: 100/282 |
24.43 € | |

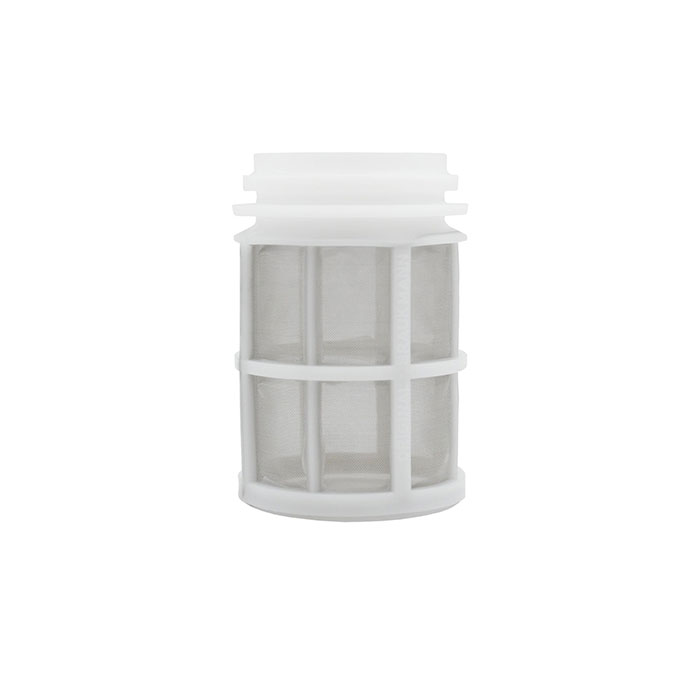

![[101379] RIEGLER Replacement sieve, for pressure reg. potable water, R 1, R 1 1/4](/web/image/product.template/169353/image_128/%5B101379%5D%20RIEGLER%20Replacement%20sieve%2C%20for%20pressure%20reg.%20potable%20water%2C%20R%201%2C%20R%201%201-4?unique=a570d72)
|
Type number: 100/224 |
19.17 € | |

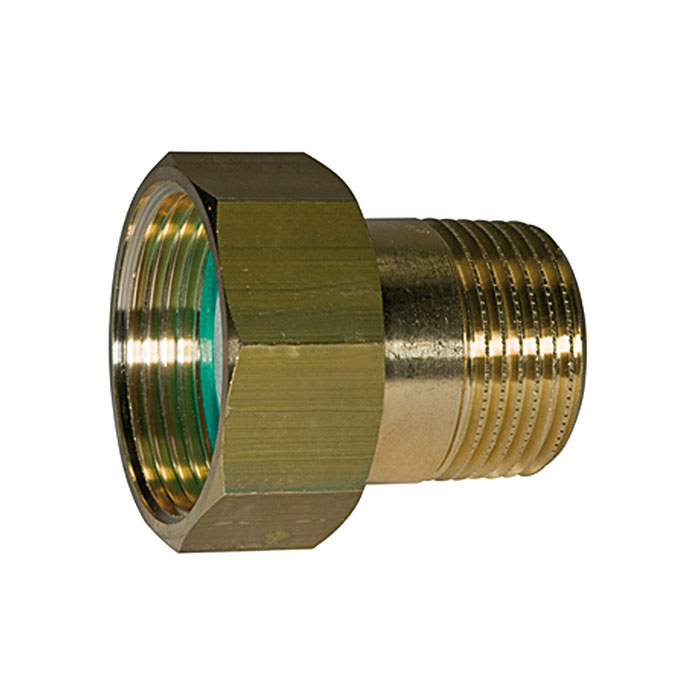

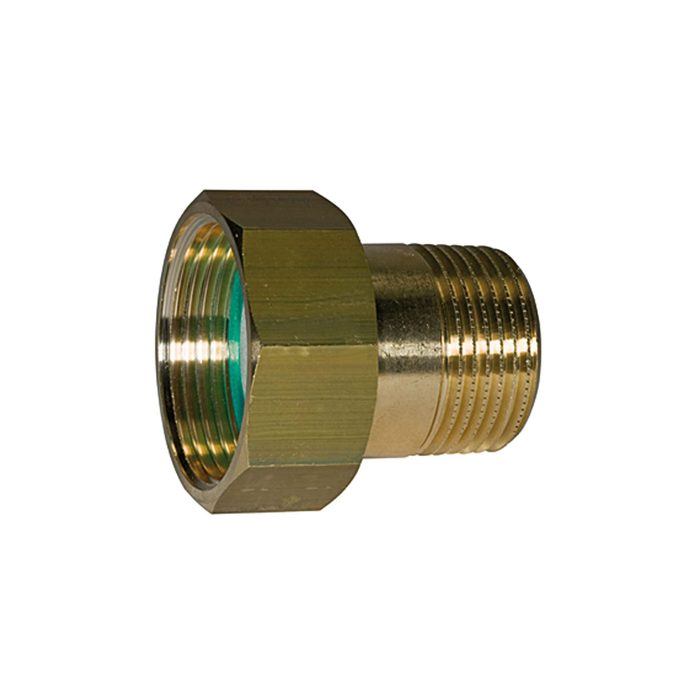

![[101391] RIEGLER Threaded fitting, Connection size 1 1/4](/web/image/product.template/169365/image_128/%5B101391%5D%20RIEGLER%20Threaded%20fitting%2C%20Connection%20size%201%201-4?unique=eae96fa)
|
Type number: VST06-11/4 A |
59.02 € | |

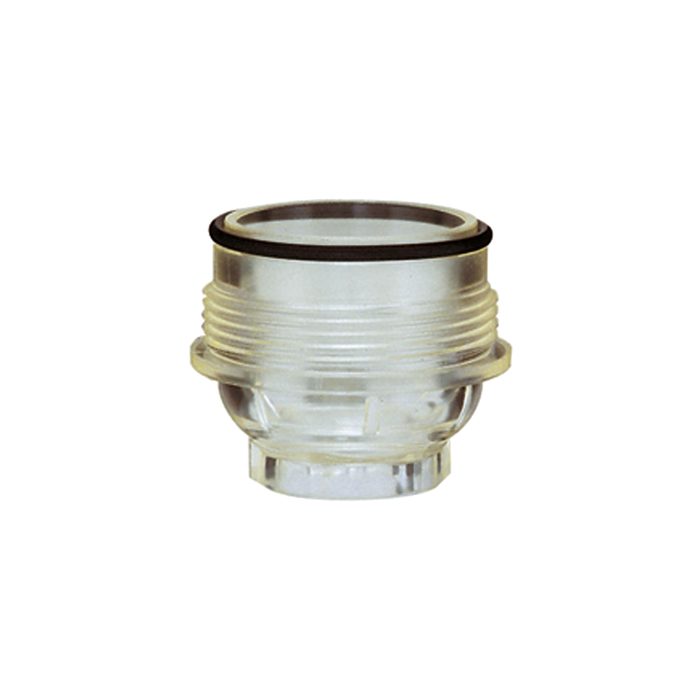

![[101382] RIEGLER Transparent sieve cup for press. reg. potable water, R 1, R 1 1/4](/web/image/product.template/169356/image_128/%5B101382%5D%20RIEGLER%20Transparent%20sieve%20cup%20for%20press.%20reg.%20potable%20water%2C%20R%201%2C%20R%201%201-4?unique=07d7c22)
|
Type number: 100/244 |
25.43 € | |

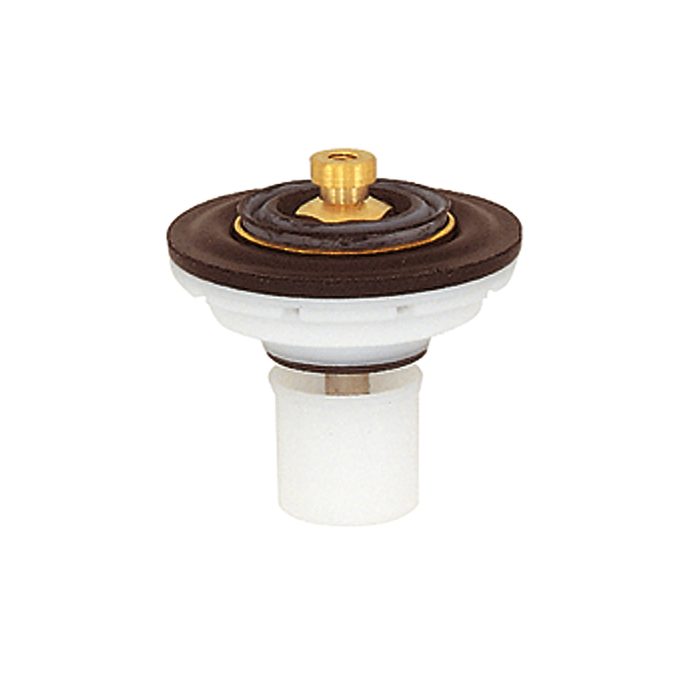

![[101376] RIEGLER Valve replacement set for press. reg. potable water, R 1, R 1 1/4](/web/image/product.template/169350/image_128/%5B101376%5D%20RIEGLER%20Valve%20replacement%20set%20for%20press.%20reg.%20potable%20water%2C%20R%201%2C%20R%201%201-4?unique=7a12a7a)
|
Type number: 100/204 |
101.20 € | |
