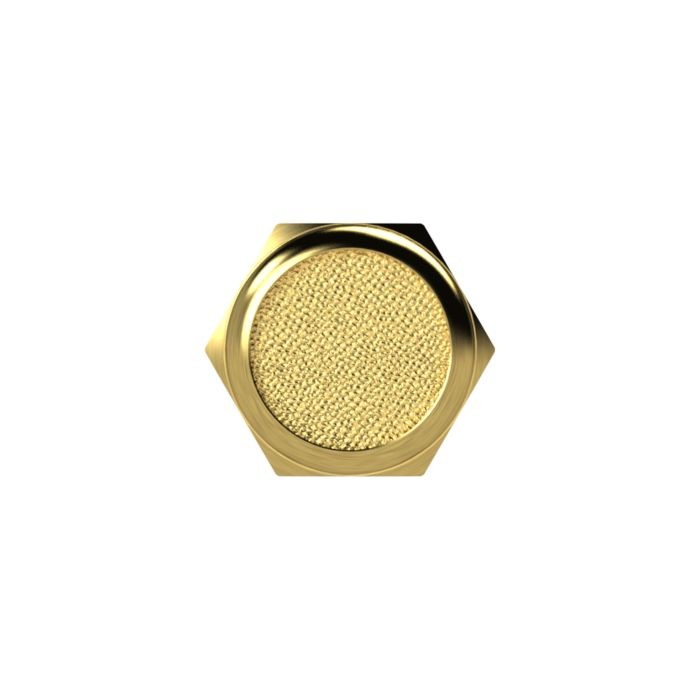

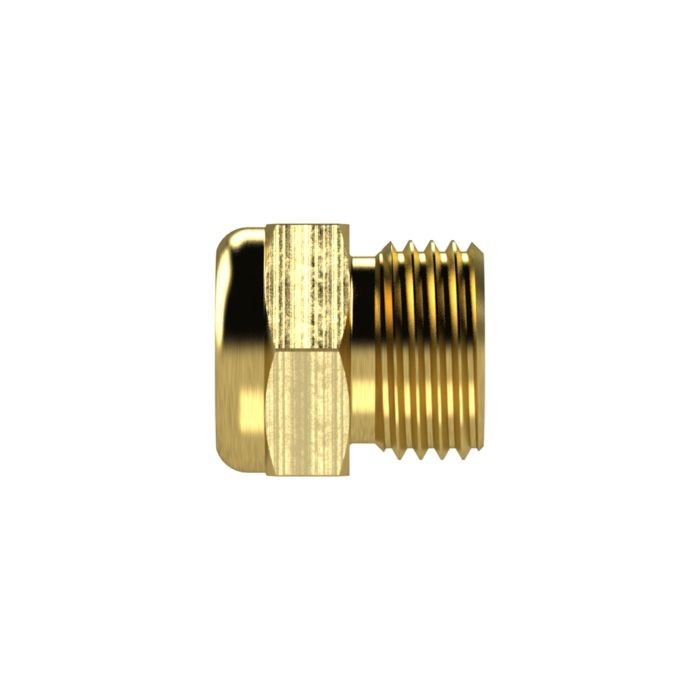

RIEGLER Sintered bronze silencer, flat, G 1/4 o., AF 15
Type number: 569-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer for noise protection, max. 8 bar, G 1/4 - Type 569-2
The RIEGLER sintered bronze silencer, flat, G 1/4 a., SW 15 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 8 bar. The operating temperature is between -10 °C and 250 °C. G 1/4 connection thread - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 8 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71-108 dB |
| Thread | G 1/4 |

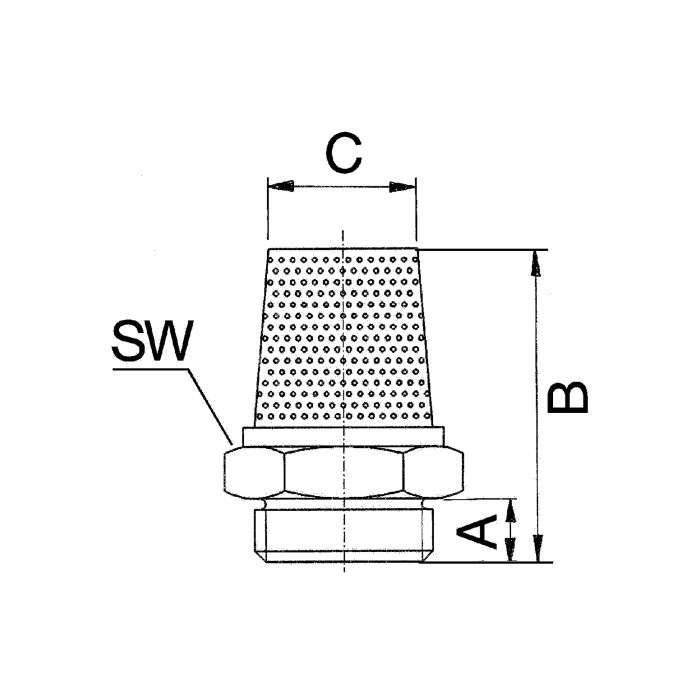

| SW | 15 mm |
| A | 7.5 mm |
| B | 16.5 mm |
| C | 14.8 mm |
| Description of the | Silencer |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101472] RIEGLER Sintered bronze silencer, flat, G 1/2 o., AF 24](/web/image/product.template/169446/image_128/%5B101472%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-2%20o.%2C%20AF%2024?unique=feed0db)
|
Type number: 569-4 |
1.92 € | |
![[113334] RIEGLER Sintered bronze silencer, flat, G 1/8 o., AF 13](/web/image/product.template/186235/image_128/%5B113334%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-8%20o.%2C%20AF%2013?unique=c418980)
|
Type number: 569-1 |
0.63 € | |
![[113337] RIEGLER Sintered bronze silencer, flat, G 1 o., AF 36](/web/image/product.template/186238/image_128/%5B113337%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201%20o.%2C%20AF%2036?unique=b89837a)
|
Type number: 569-6 |
6.81 € | |
![[113336] RIEGLER Sintered bronze silencer, flat, G 3/4 o., AF 27](/web/image/product.template/186237/image_128/%5B113336%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%203-4%20o.%2C%20AF%2027?unique=1a14e70)
|
Type number: 569-5 |
3.62 € | |
![[113335] RIEGLER Sintered bronze silencer, flat, G 3/8 o., AF 19](/web/image/product.template/186236/image_128/%5B113335%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%203-8%20o.%2C%20AF%2019?unique=bbc7b9a)
|
Type number: 569-3 |
1.34 € | |

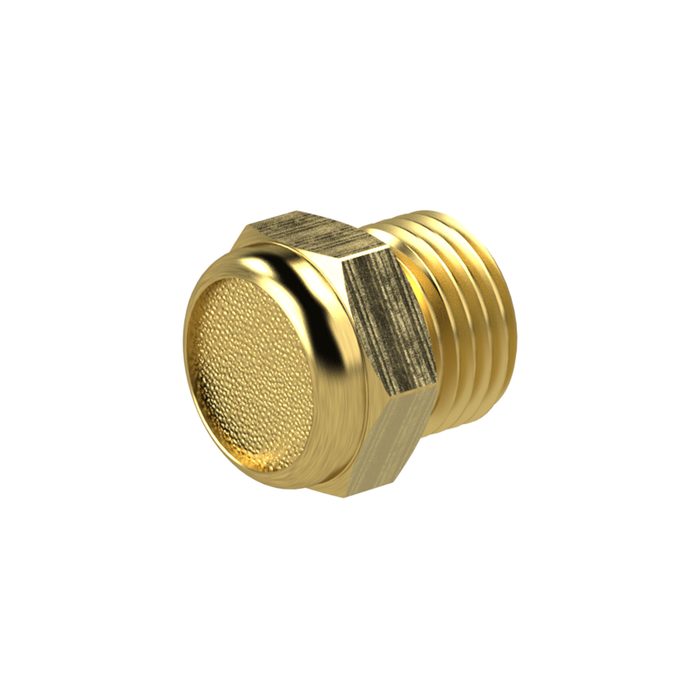

![[113333] RIEGLER Sintered bronze silencer, flat, M5 o., AF 8](/web/image/product.template/186234/image_128/%5B113333%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20M5%20o.%2C%20AF%208?unique=f6c9806)
|
