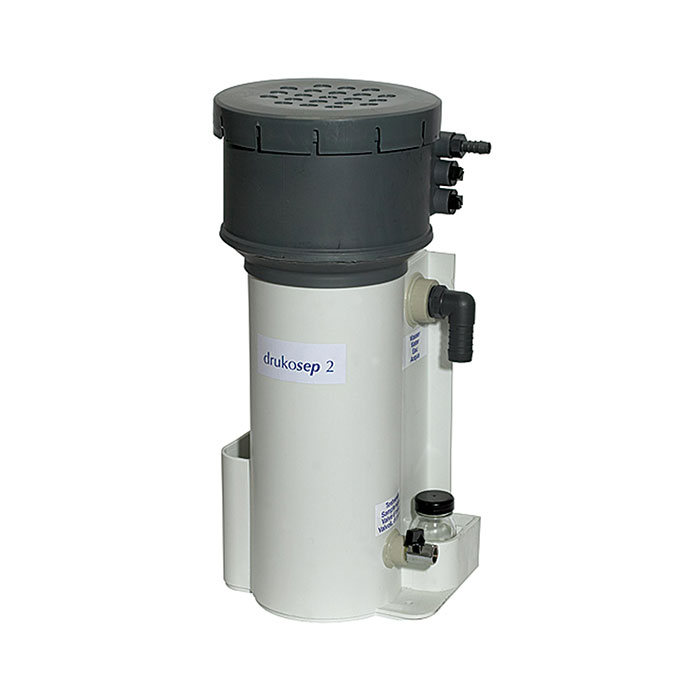

RIEGLER Oil water separator »drukosep«, Max. compressor cap. 1.5 m³/min
Type number: SEP 1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Oil-water separator "drukosep", 3-stage combination filter, max. compressor output 1.5 m³/min, tank: PE / PP, filter: PP / activated carbon
| Container | Polyethylene / polypropylene |
| Filter element | Polypropylene / activated carbon |
| Max. compressor capacity | 1.5 m³/min |
| Height | 445 mm |
| Width | 251 mm |
| Depth | 240 mm |
| Weight | 4.3 kg |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101616] RIEGLER Oil water separator »drukosep«, Max. compressor cap. 2.5 m³/min](/web/image/product.template/169590/image_128/%5B101616%5D%20RIEGLER%20Oil%20water%20separator%20%C2%BBdrukosep%C2%AB%2C%20Max.%20compressor%20cap.%202.5%20m%C2%B3-min?unique=a8fe554)
|
Type number: SEP 2 |
395.37 € | |
![[101617] RIEGLER Oil water separator »drukosep«, Max. compressor cap. 3.5 m³/min](/web/image/product.template/169591/image_128/%5B101617%5D%20RIEGLER%20Oil%20water%20separator%20%C2%BBdrukosep%C2%AB%2C%20Max.%20compressor%20cap.%203.5%20m%C2%B3-min?unique=2375579)
|
Type number: SEP 3 |
568.34 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

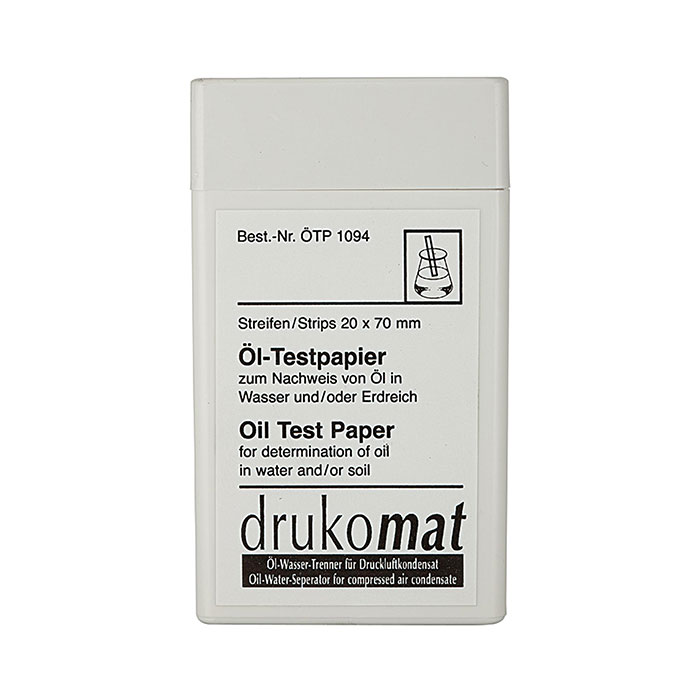

![[101618] RIEGLER Oil test paper (50 strips), for oil water separator »drukosep«](/web/image/product.template/169592/image_128/%5B101618%5D%20RIEGLER%20Oil%20test%20paper%20%2850%20strips%29%2C%20for%20oil%20water%20separator%20%C2%BBdrukosep%C2%AB?unique=6750a6c)
|
Type number: SEP 90 |
28.07 € | |

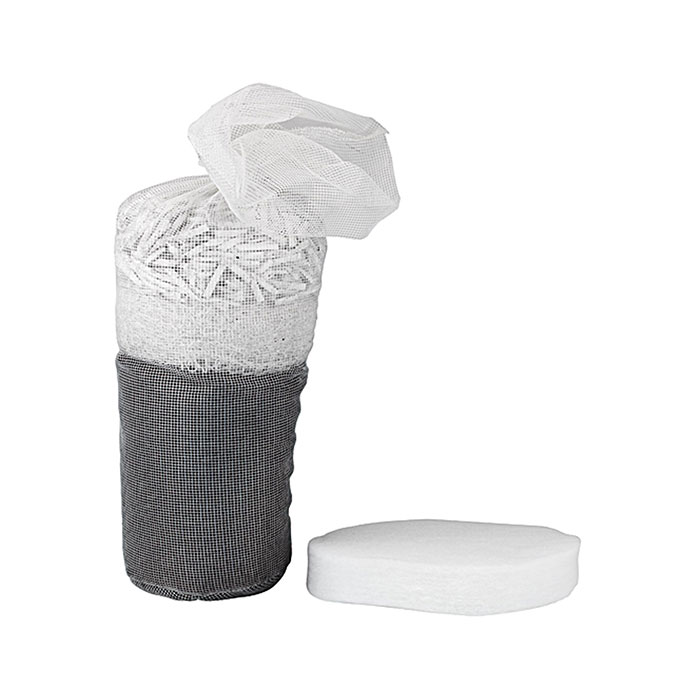

![[101620] RIEGLER Replacement filter set, for »drukosep«, Max. 1.5 m³/min](/web/image/product.template/169594/image_128/%5B101620%5D%20RIEGLER%20Replacement%20filter%20set%2C%20for%20%C2%BBdrukosep%C2%AB%2C%20Max.%201.5%20m%C2%B3-min?unique=fa0b362)
|
Type number: SEP 11 |
78.78 € | |

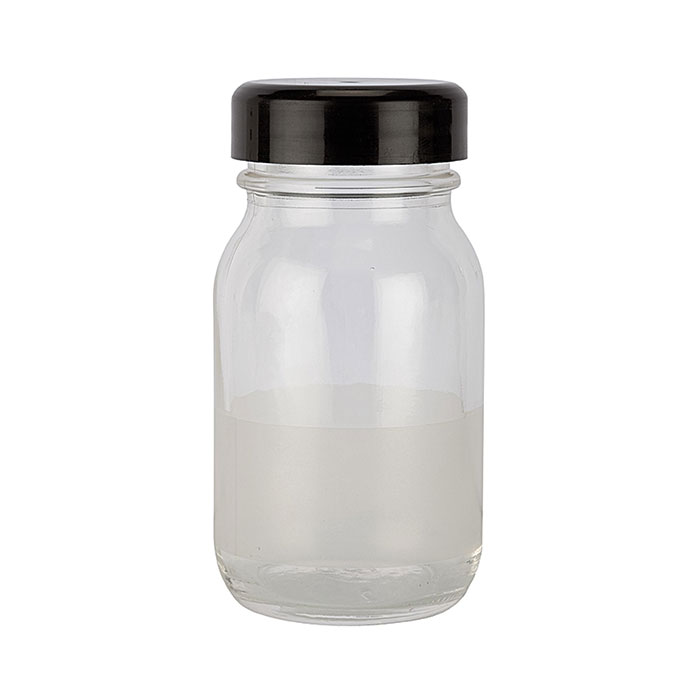

![[101619] RIEGLER Test glass, for oil water separator »drukosep«](/web/image/product.template/169593/image_128/%5B101619%5D%20RIEGLER%20Test%20glass%2C%20for%20oil%20water%20separator%20%C2%BBdrukosep%C2%AB?unique=69d8abd)
|
Type number: SEP 95 |
9.65 € | |
