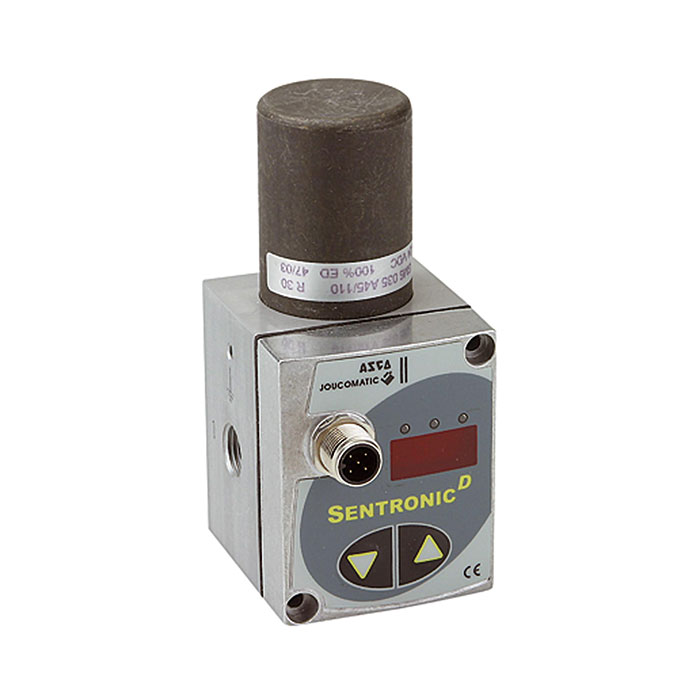

RIEGLER Proportional control valve »sentronic D«, 24 V DC, G 1/4, DN 8
Type number: PV 2260
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Proportional control valve "sentronic D", 3-way version, digital, 24 V DC, G 1/4, DN 8, pressure range 0 - 10 bar
| Medium | Air or neutral gases (filter ‰¤ 50 µm required) |
| Housing | Aluminum |
| Sealing material | NBR |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Interior parts | POM |
| Control | 0 - 10 V |
| Electrical setpoint | 0 - 10 V |
| Failsafe behaviour | venting in case of voltage drop |
| Analogue output min. | 0 V |
| Analogue output max. | 10 V |
| Digital output | Pressure switch output PNP +/- 5% |
| Thread | G 1/4 |
| Flow rate | 1750 l/min |
| DN | 8 |
| Actuation | Proportional solenoid |
| B | 66 mm |
| C | 138 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101632] RIEGLER Proportional control valve »sentronic D«, 24 V DC, G 1/4, DN 4](/web/image/product.template/169605/image_128/%5B101632%5D%20RIEGLER%20Proportional%20control%20valve%20%C2%BBsentronic%20D%C2%AB%2C%2024%20V%20DC%2C%20G%201-4%2C%20DN%204?unique=04c9355)
|
Type number: PV 2251 |
914.35 € | |
![[101631] RIEGLER Proportional control valve »sentronic D«, 24 V DC, G 1/8, DN 4](/web/image/product.template/169604/image_128/%5B101631%5D%20RIEGLER%20Proportional%20control%20valve%20%C2%BBsentronic%20D%C2%AB%2C%2024%20V%20DC%2C%20G%201-8%2C%20DN%204?unique=6d6a66d)
|
Type number: PV 2250 |
868.57 € | |
![[101634] RIEGLER Proportional control valve »sentronic D«, 24 V DC, G 3/8, DN 8](/web/image/product.template/169607/image_128/%5B101634%5D%20RIEGLER%20Proportional%20control%20valve%20%C2%BBsentronic%20D%C2%AB%2C%2024%20V%20DC%2C%20G%203-8%2C%20DN%208?unique=204828e)
|
Type number: PV 2261 |
964.04 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101635] RIEGLER M12 angled line socket, 5-pole, with screw clamps](/web/image/product.template/169608/image_128/%5B101635%5D%20RIEGLER%20M12%20angled%20line%20socket%2C%205-pole%2C%20with%20screw%20clamps?unique=6a5cc0f)
|
Type number: PVZ 10 |
33.32 € | |

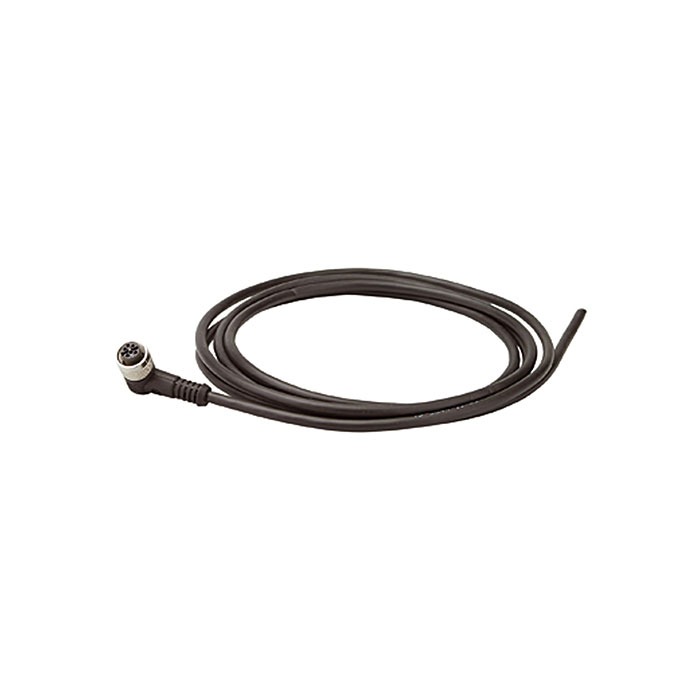

![[101636] RIEGLER Power supply cable 2 m, 5 x 0,25 mm², incl. M12 angled line plug](/web/image/product.template/169609/image_128/%5B101636%5D%20RIEGLER%20Power%20supply%20cable%202%20m%2C%205%20x%200%2C25%20mm%C2%B2%2C%20incl.%20M12%20angled%20line%20plug?unique=9e3495b)
|
