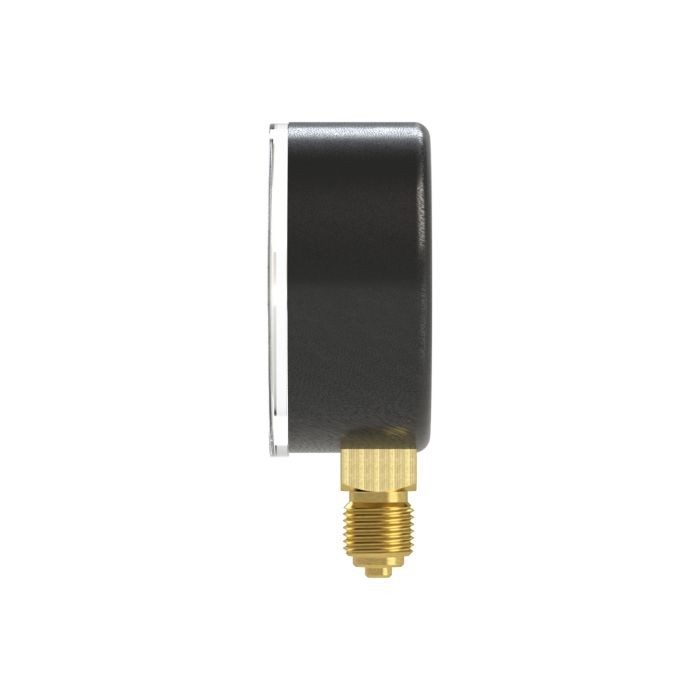

RIEGLER Standard pressure gauge, radial bottom, G 1/4, 0 - 1 bar, Ø 50
Type number: 101-K
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard pressure gauge, Single scale bar, Connection radial bottom, G 1/4, Goods class 1.6, Measurement range 0 - 1 bar, Ø 50
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 111.10 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 1 |
| Diameter | 50 mm |
| Graduation value in the bar range | 0.05 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | radial bottom |
| Class name | PLUS |
| Process connection material | Copper alloy |
