RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 4 bar, Ø 80
Type number: 234
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard pressure gauge, Single scale bar, Connection, rear, centric, G 1/4, Goods class 1.6, Measurement range 0 - 4 bar, Ø 80
| Housing | Plastic |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 111.12 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Plastic crystal clear |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 4 |
| Diameter | 80 mm |
| Graduation value in the bar range | 0.1 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Brand pointer | red |
| Connection position | rear, centric |
| Class name | PLUS |
| Process connection material | Copper alloy |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102013] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar, Ø 100](/web/image/product.template/169985/image_128/%5B102013%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%20100?unique=54eccf1)
|
Type number: 256 |
14.65 € | |
![[102003] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar, Ø 80](/web/image/product.template/169975/image_128/%5B102003%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2080?unique=aecac6a)
|
Type number: 236 |
12.76 € | |
![[102009] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 1.6 bar, Ø 100](/web/image/product.template/169981/image_128/%5B102009%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%201.6%20bar%2C%20%C3%98%20100?unique=d0fe172)
|
Type number: 252 |
14.65 € | |
![[102014] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar, Ø 100](/web/image/product.template/169986/image_128/%5B102014%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%20100?unique=f6cac08)
|
Type number: 257 |
14.65 € | |
![[101999] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 1.6 bar, Ø 80](/web/image/product.template/169971/image_128/%5B101999%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%201.6%20bar%2C%20%C3%98%2080?unique=61ba567)
|
Type number: 232 |
12.76 € | |

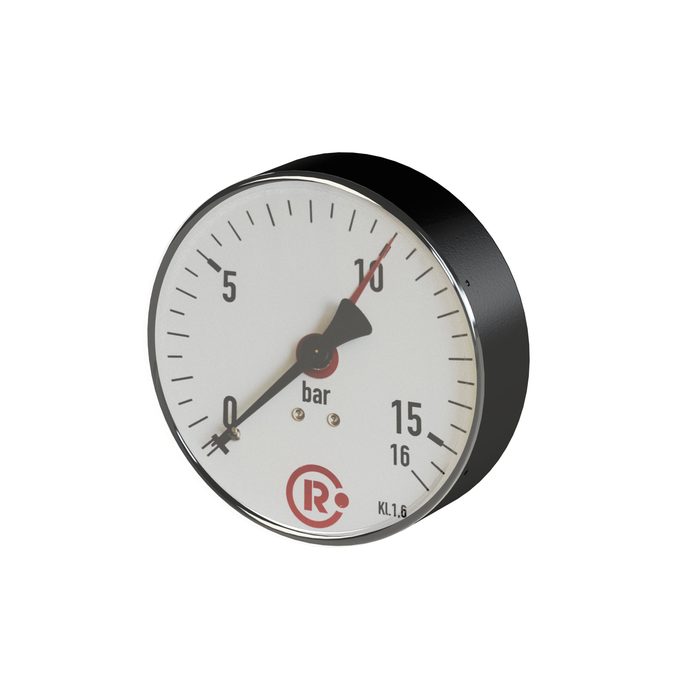

![[102004] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar, Ø 80](/web/image/product.template/169976/image_128/%5B102004%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%2080?unique=f6cac08)
|
