KAESER Extra filter model F16KE G 3/4", ECO-DRAIN 31

Price:

776.48 €

English (US)
  2. Shop
  3. Compressed Air Filters
  4. KAESER Extra filter model F16KE G 3/4", ECO-DRAIN 31
KAESER Filter Extra model F16KE G 3/4", ECO-DRAIN 30
KAESER Filter Extra model F16KE G 3/4", ECO-DRAIN 30
712.22 € 712.22 €
KAESER Filter Extra model F6KE G 1/2", Ball valve
KAESER Filter Extra model F6KE G 1/2", Ball valve
321.30 € 321.30 €

KAESER Extra filter model F16KE G 3/4", ECO-DRAIN 31

https://www.filcom-technik.de/web/image/product.template/262277/image_1920?unique=50e1b71

Volumenstrom: 1,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³

776.48 € 776.48 EUR 776.48 € VAT Included

870.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
KAESER Kompressoren SE

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

102111.20341

Category :

Compressed Air Filters

Weight :

4.00 kg

Delivery area :

Deutschland

The KAESER coalescence filter Extra offers the same effective filtration as the KB model, but for even higher compressed air quality. It reliably removes solid and liquid aerosols as well as ultra-fine particles, providing optimum protection for your compressed air systems.

Volume flow (m³/min) 1,60
Compressed air inlet connection G 3/4"
Differential pressure in new condition <0,05
Differential pressure at saturation <0,2
Residual aerosol content <0,01
Min. overpressure (bar) 2
Max. Overpressure (bar) 16
Weight (kg) 4,2
Width (mm) 241
Height (mm) 488
Depth (mm) 225
Condensate drain ECO-DRAIN 31F
Degree of filtration KE - Coalescence filter Extra
KAESER Betriebsanleitung Filter F6-F320 ED31F
Download
KAESER Prospekt Filter F6-F320
Download

Variants / Alternatives

Product Price
[MDM500199758] KAESER Filter Extra model F16KE G 3/4", Ball valve

Volumenstrom: 1,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³

 470.35 €
[MDM500011349] KAESER Filter Extra model F16KE G 3/4", ECO-DRAIN 30

Volumenstrom: 1,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³

 712.22 €

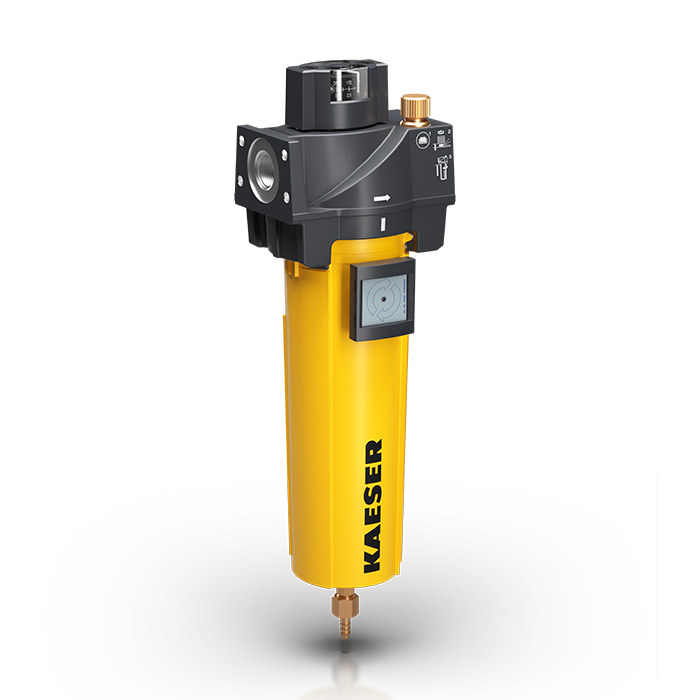

[102111.10311] KAESER Filter Extra model F16KE G 3/4", Float drain

Volumenstrom: 1,60 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³

 470.35 €

Accessoires and suitable extensions

Product Price

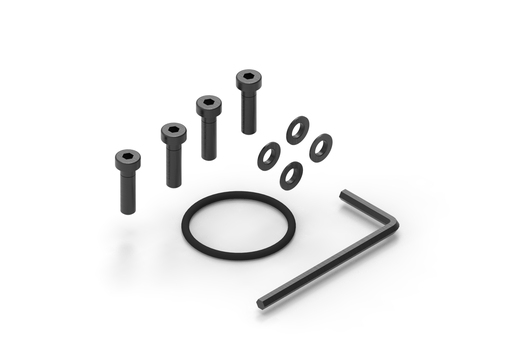

[405342.0] KAESER mounting KIT connecting flange KF2.2

Assembly kit / connection kit for 2 KAESER compressed air filters

 42.01 €

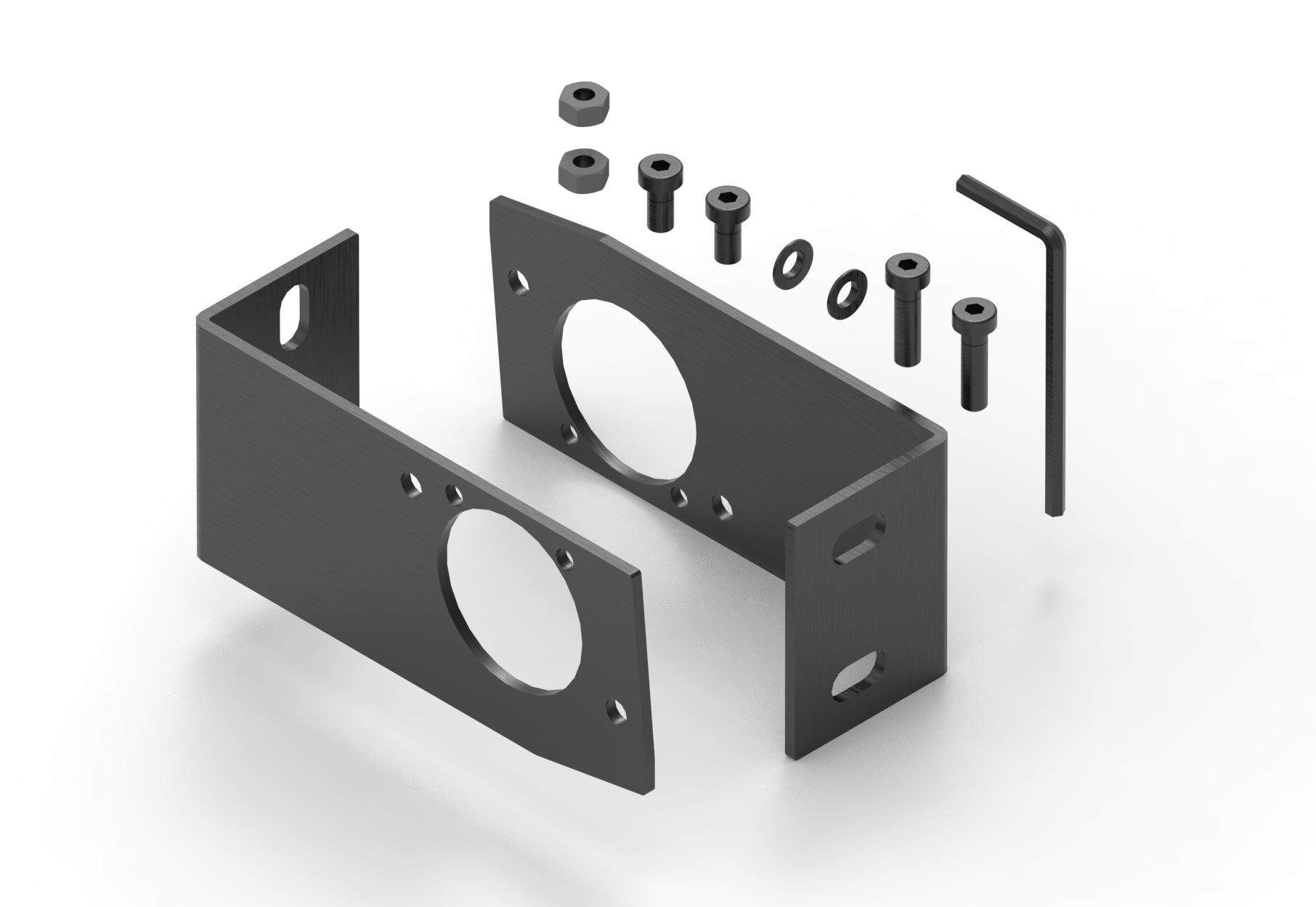

[4E0520.0] KAESER KIT wall mount filter KF2.2

KIT Wall bracket for KAESER compressed air filters

 92.82 €

Maintenance, wear and spare parts

Product Price

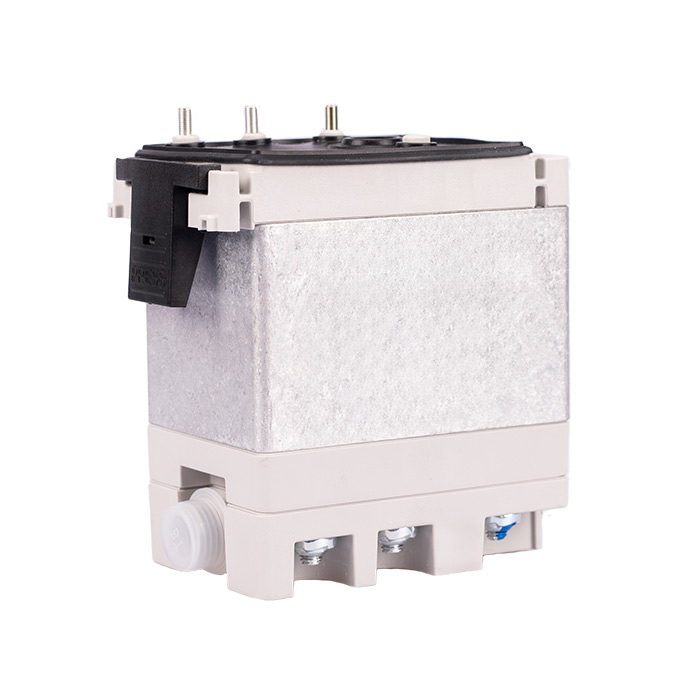

[8.2474.01540] KAESER ECO-DRAIN 31/31F service unit

Für Kondensatableiter KAESER ECO-DRAIN 31/31F

 185.64 €
[901507.0] KAESER Filter element E110KB

Filterelement für KAESER Filter Basic Modell F110KB

 597.38 €
