KAESER Filter Dust model F46KD G 1 1/4"
Volume flow: 4.61 m³/min
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
102122.10501Category :
Compressed Air FiltersWeight :
7.50 kgDelivery area :
DeutschlandThe KAESER Dust filter is specially designed for the effective filtration of solid particles in compressed air systems. It ensures a clean compressed air supply and protects downstream equipment from harmful contaminants.
| Volume flow (m³/min) | 4,6 |
| Compressed air inlet connection | G 1 1/4" |
| Differential pressure in new condition | < 0,03 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 198 |
| Height (mm) | 462 |
| Depth (mm) | 153 |
| Condensate drain | Ball valve |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
| Degree of filtration | KD - Dust filter Dust |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

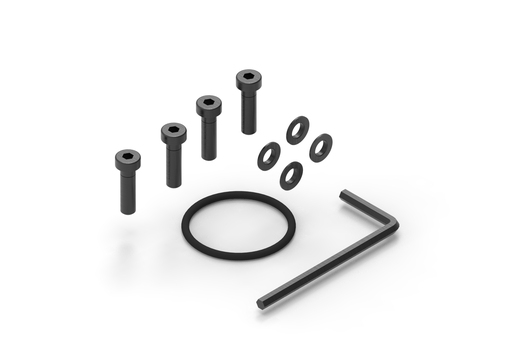

![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=ab4ea98)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
45.82 € | |

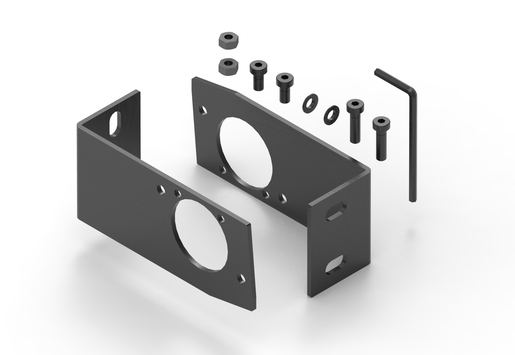

![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=f2ef80c)
|
KIT Wall bracket for KAESER compressed air filters |
104.72 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901545.0] KAESER Filter element E46KD](/web/image/product.template/16507/image_128/%5B901545.0%5D%20KAESER%20Filter%20element%20E46KD%20%20?unique=01a6b32)
|
Filter element for KAESER Filter Dust model F46KD |
435.54 € | |
