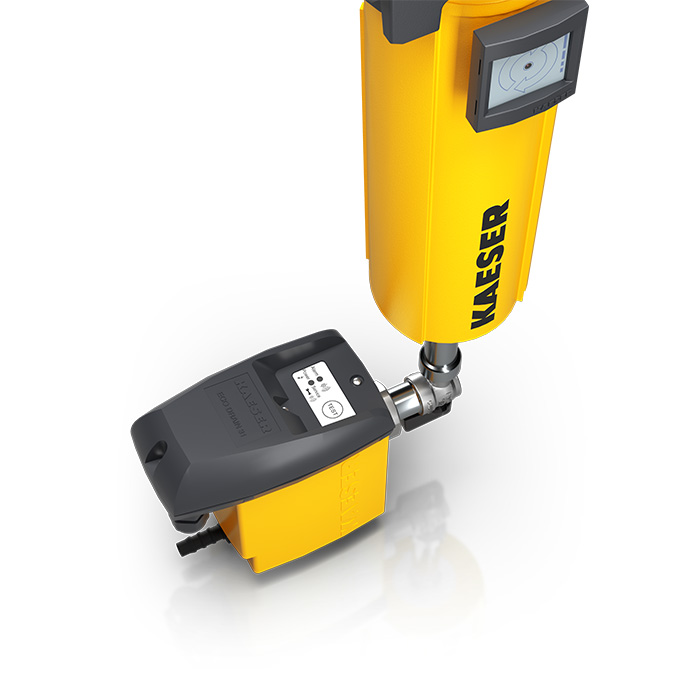

KAESER Filter Extra model F46KE G 1 1/2", ECO-DRAIN 31F

Price:

1,017.45 €

English (US)
  2. Shop
  3. Compressed Air Filters
  4. KAESER Filter Extra model F46KE G 1 1/2", ECO-DRAIN 31F
KAESER Filter Extra model F26KE G 3/4", ECO-DRAIN 31F
KAESER Filter Extra model F26KE G 3/4", ECO-DRAIN 31F
863.05 € 863.05 €
KAESER Filter Extra model F46KE G 1 1/2", Ball valve
KAESER Filter Extra model F46KE G 1 1/2", Ball valve
711.32 € 711.32 €

KAESER Filter Extra model F46KE G 1 1/2", ECO-DRAIN 31F

https://www.filcom-technik.de/web/image/product.template/262315/image_1920?unique=aab9fd4

Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

1,017.45 € 1017.45 EUR 1,017.45 € VAT Included

1,140.00 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
KAESER Kompressoren SE

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

102123.20641

Category :

Compressed Air Filters

Weight :

8.40 kg

Delivery area :

Deutschland

The KAESER coalescence filter Extra offers the same effective filtration as the KB model, but for even higher compressed air quality. It reliably removes solid and liquid aerosols as well as ultra-fine particles, providing optimum protection for your compressed air systems.

Volume flow (m³/min) 4,6
Compressed air inlet connection G 1 1/2"
Differential pressure in new condition <0,05
Differential pressure at saturation <0,2
Residual aerosol content <0,01
Min. overpressure (bar) 2
Max. Overpressure (bar) 16
Weight (kg) 8,4
Width (mm) 273
Height (mm) 557
Depth (mm) 250
Condensate drain ECO-DRAIN 31F
Degree of filtration KE - Coalescence filter Extra
KAESER Betriebsanleitung Filter F6-F320 ED31F
Download
KAESER Prospekt Filter F6-F320
Download

Variants / Alternatives

Product Price
[MDM500199908] KAESER Filter Extra model F46KE G 1 1/2", Ball valve

Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

 711.32 €
[MDM500012021] KAESER Filter Extra model F46KE G 1 1/2", ECO-DRAIN 30

Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

 953.19 €

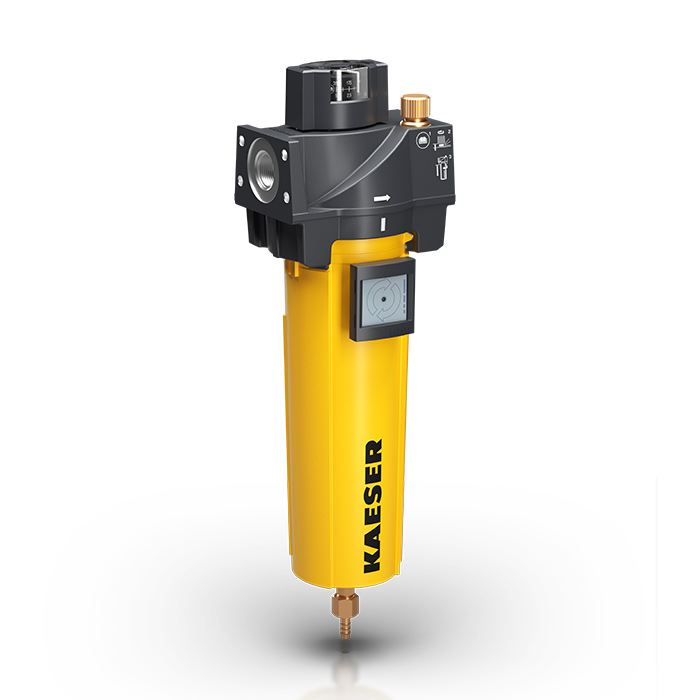

[102123.10611] KAESER Filter Extra model F46KE G 1 1/2", Float drain

Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

 711.32 €

Accessoires and suitable extensions

Product Price
[405343.0] KAESER Mounting KIT connecting flange KF3.2

Assembly kit / connection kit for 2 KAESER compressed air filters

 45.82 €
[4E0521.0] KAESER Wall holder filter kit KF3.2

KIT Wall bracket for KAESER compressed air filters

 104.72 €

Maintenance, wear and spare parts

Product Price
[8.2474.01540] KAESER ECO-DRAIN 31/31F service unit

For condensate drain KAESER ECO-DRAIN 31/31F

 185.64 €
[901507.0] KAESER Filter element E110KB

Filter element for KAESER Filter Basic model F110KB

 597.38 €
