KAESER Filter adsorption model F83KA G 2"
Volumenstrom: 8,25 m³/min
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
102143.10700Category :
Compressed Air FiltersWeight :
8.30 kgDelivery area :
DeutschlandDer KAESER Aktivkohlefilter ist optimiert für die effektive Adsorption und Entfernung von Öldämpfen aus Druckluftsystemen. Dieser Filter gewährleistet eine hohe Luftqualität und schützt nachgeschaltete Geräte vor Verunreinigungen.
| Volume flow (m³/min) | 8,30 |
| Compressed air inlet connection | G 2" |
| Differential pressure in new condition | < 0,03 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 198 |
| Height (mm) | 525 |
| Depth (mm) | 153 |
| Condensate drain | Ball valve |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
| Degree of filtration | KA - Activated carbon filter adsorption |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

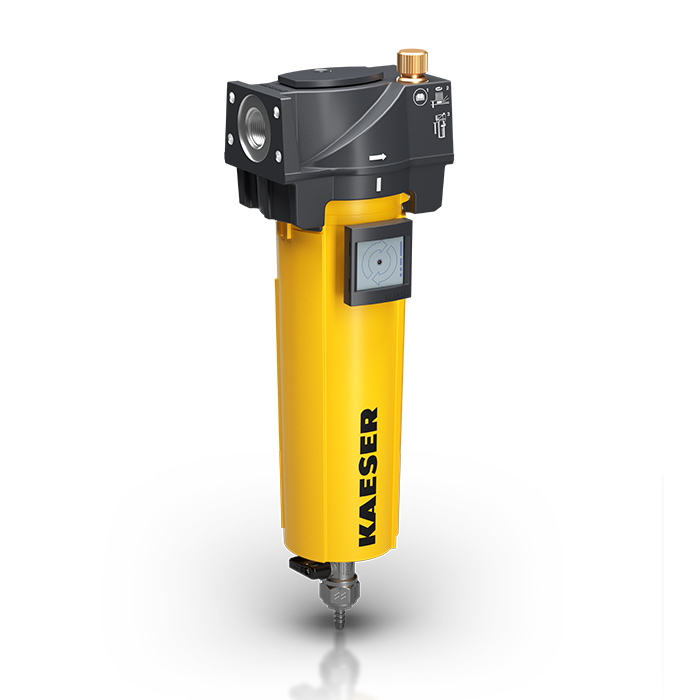

![[102143.10600] KAESER Filter adsorption model F83KA G 1 1/2"](/web/image/product.template/262343/image_128/%5B102143.10600%5D%20KAESER%20Filter%20adsorption%20model%20F83KA%20G%201%201-2%22?unique=a574896)
|
Volumenstrom: 8,25 m³/min |
906.78 € | |
![[MDM500014783] KAESER Filter adsorption model F83KA G 1 1/4"](/web/image/product.template/262422/image_128/%5BMDM500014783%5D%20KAESER%20Filter%20adsorption%20model%20F83KA%20G%201%201-4%22?unique=e5f0bc5)
|
Volumenstrom: 8,25 m³/min |
906.78 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=3a5db08)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
44.98 € | |
![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=a574896)
|
KIT Wall bracket for KAESER compressed air filters |
82.47 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901566.0] KAESER Filter element E83KA](/web/image/product.template/16490/image_128/%5B901566.0%5D%20KAESER%20Filter%20element%20E83KA%20%20?unique=f748b28)
|
Filterelement für KAESER Filter Adsorption Modell F83KA |
468.86 € | |
