RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 4 bar
Type number: 1024
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102296EAN :
4047322012225Category :
Glycerine-Filled Pressure GaugesWeight :
1.28 kgGlycerin mano. with bracket fitting and triangular front ring, eccentric rear connection, G 1/2, grade 1.0, measuring range 0 - 4.0 bar, Ø 100
| Housing | Pressed brass |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 213.40 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | Acrylic glass |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 4 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.1 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/2 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 1 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | rear, eccentric |
| Class name | MAX |
| Process connection material | Copper alloy |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102303] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 100 bar](/web/image/product.template/170275/image_128/%5B102303%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%20100%20bar?unique=21694f3)
|
Type number: 1031 |
128.66 € | |
![[102298] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 10 bar](/web/image/product.template/170270/image_128/%5B102298%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%2010%20bar?unique=dc0fe90)
|
Type number: 1026 |
112.94 € | |
![[102304] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 160 bar](/web/image/product.template/170276/image_128/%5B102304%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%20160%20bar?unique=c990aa7)
|
Type number: 1032 |
128.66 € | |
![[102294] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 1.6 bar](/web/image/product.template/170266/image_128/%5B102294%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%201.6%20bar?unique=abd88aa)
|
Type number: 1022 |
112.94 € | |
![[102299] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 16 bar](/web/image/product.template/170271/image_128/%5B102299%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%2016%20bar?unique=20b0ca0)
|
Type number: 1027 |
112.94 € | |
![[102305] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 250 bar](/web/image/product.template/170277/image_128/%5B102305%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%20250%20bar?unique=054aa2b)
|
Type number: 1033 |
128.66 € | |
![[102295] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 2.5 bar](/web/image/product.template/170267/image_128/%5B102295%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%202.5%20bar?unique=43ec401)
|
Type number: 1023 |
112.94 € | |
![[102300] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 25 bar](/web/image/product.template/170272/image_128/%5B102300%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%2025%20bar?unique=3946d31)
|
Type number: 1028 |
112.94 € | |

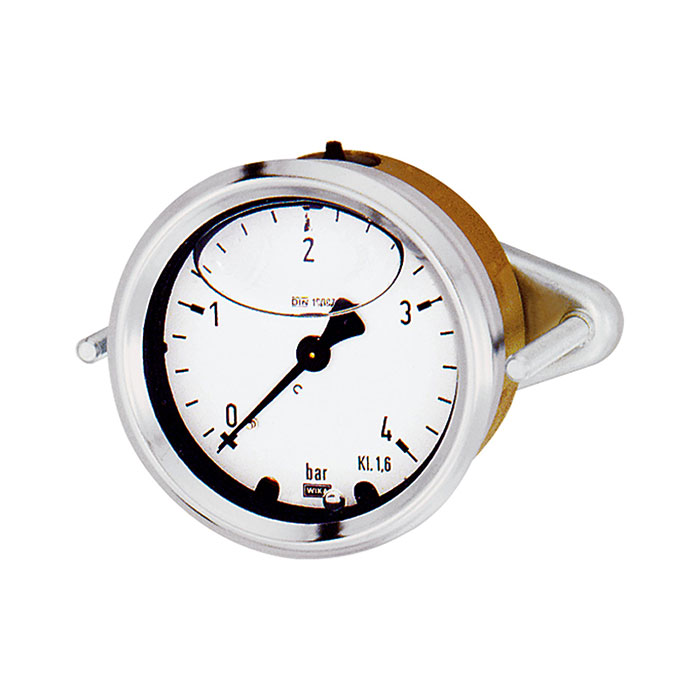

![[102306] RIEGLER Glycerine pressure gauge, triangle front ring, G 1/2, 0 - 400 bar](/web/image/product.template/170278/image_128/%5B102306%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20triangle%20front%20ring%2C%20G%201-2%2C%200%20-%20400%20bar?unique=dcf9fb1)
|
