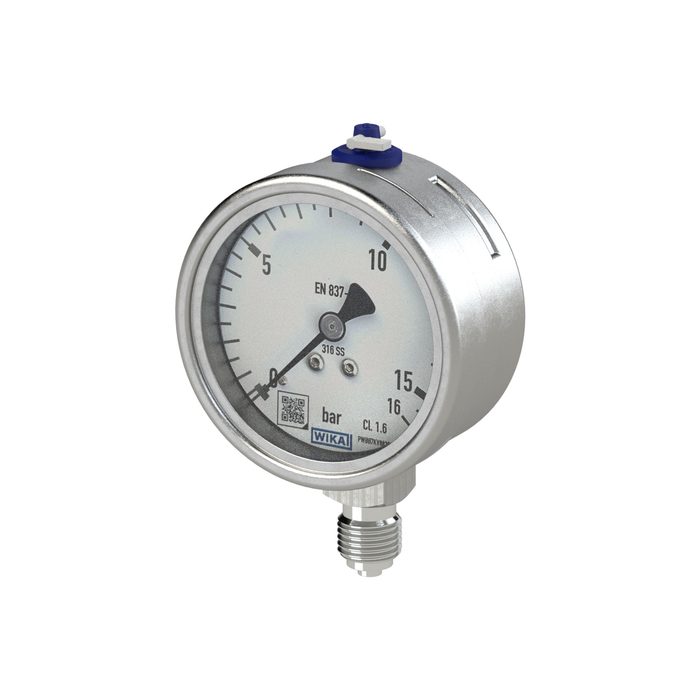

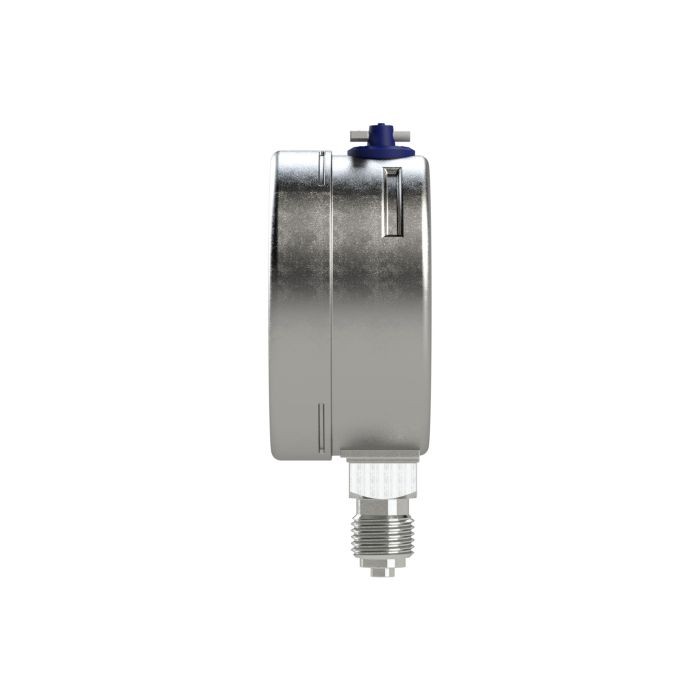

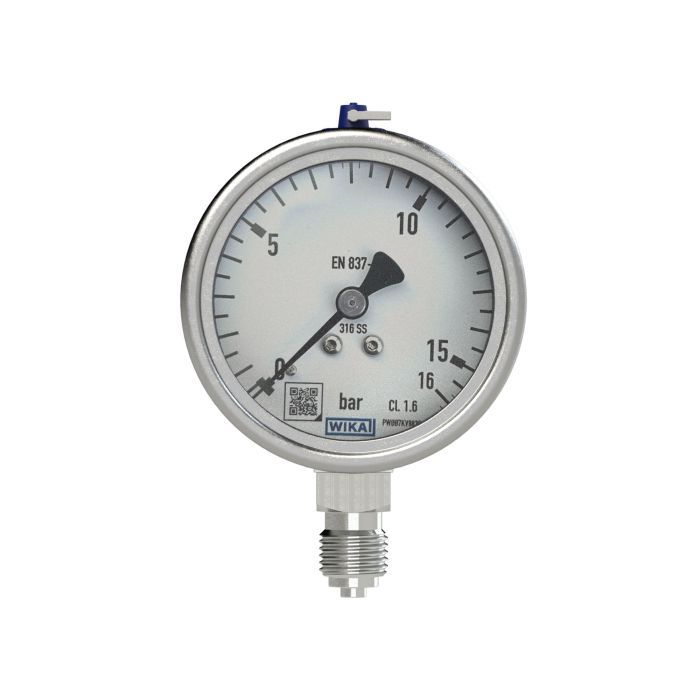

RIEGLER Pressure gauge, CrNi steel, radial bottom, G 1/2, 0-10 bar, Ø 160
Type number: 4053
EAN: 4047322084796
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102504EAN :
4047322084796Category :
Stainless Steel Pressure GaugesWeight :
1.09 kgPressure gauge in stainless steel design, radial bottom connection, G 1/2, type 232.50, grade 1.0, measuring range 0 - 10.0 bar, Ø 160
| Medium temperature min. | -40 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 60 °C |
| Material | CrNi steel |
| Type | 232.50 |
| Viewing window | Multi-layer safety glass |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Diameter | 160 mm |
| Graduation value in the bar range | 0.2 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/2 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 1 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | radial bottom |
| Class name | STAINLESS STEEL |
| Process connection material | CrNi steel |
