RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 6 bar, Ø 63
Type number: 4083
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102510EAN :
4047322084857Category :
Stainless Steel Pressure GaugesWeight :
0.14 kgPressure gauge CrNi steel design, Connection, rear, centric, G 1/4, Goods class 1.6, Measurement range 0 - 6 bar, Ø 63
| Medium temperature min. | -40 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 60 °C |
| Material | CrNi steel |
| Type | 232.50 |
| Viewing window | Polycarbonate |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 6 |
| Diameter | 63 mm |
| Graduation value in the bar range | 0.2 bar |
| Description of the | Pressure gauge Ø 63 mm, G 1/4 AG, 0 - 6 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 45444 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | rear, centric |
| Class name | STAINLESS STEEL |
| Process connection material | CrNi steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102513] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0-100 bar, Ø 63](/web/image/product.template/170485/image_128/%5B102513%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200-100%20bar%2C%20%C3%98%2063?unique=1ced463)
|
Type number: 4089 |
135.73 € | |
![[101201] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 10 bar, Ø 63](/web/image/product.template/140637/image_128/%5B101201%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2063?unique=72fd141)
|
Type number: 4084 |
113.69 € | |
![[101202] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 16 bar, Ø 63](/web/image/product.template/140638/image_128/%5B101202%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%2063?unique=4ae34a1)
|
Type number: 4085 |
113.69 € | |
![[102514] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0-250 bar, Ø 63](/web/image/product.template/170486/image_128/%5B102514%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200-250%20bar%2C%20%C3%98%2063?unique=8e4244a)
|
Type number: 4090 |
135.73 € | |
![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=644f42a)
|
Type number: 4086 |
113.69 € | |
![[102508] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0-2.5 bar, Ø 63](/web/image/product.template/170480/image_128/%5B102508%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200-2.5%20bar%2C%20%C3%98%2063?unique=d94ae3d)
|
Type number: 4081 |
115.29 € | |
![[102512] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 40 bar, Ø 63](/web/image/product.template/170484/image_128/%5B102512%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2040%20bar%2C%20%C3%98%2063?unique=a6c539f)
|
Type number: 4087 |
113.69 € | |

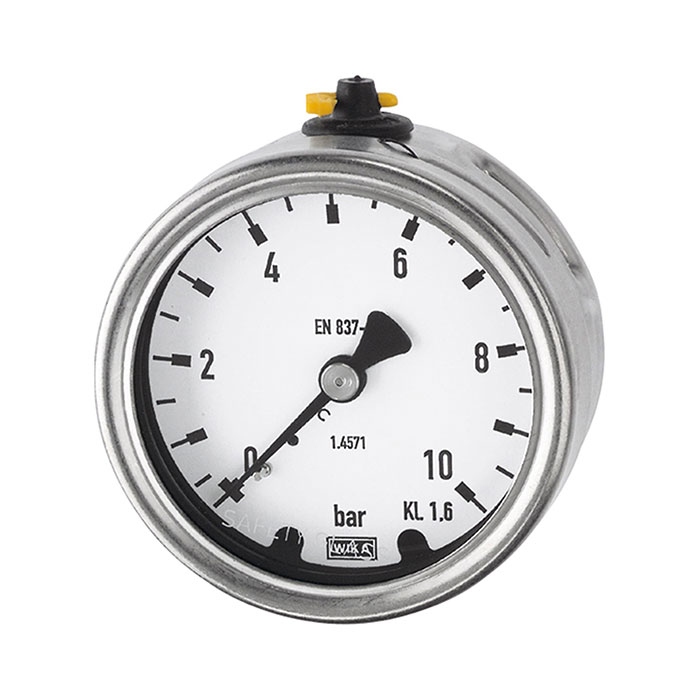

![[102509] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 4 bar, Ø 63](/web/image/product.template/170481/image_128/%5B102509%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%204%20bar%2C%20%C3%98%2063?unique=3f689c0)
|
