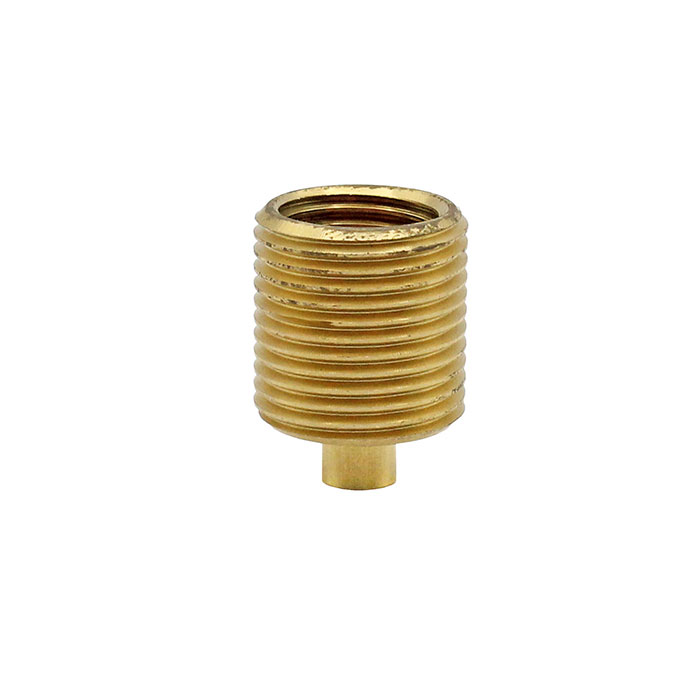

RIEGLER Pressure gauge connection nipple, brass, G 3/8 ET, G 1/4 IT
Type number: 257.12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102623EAN :
4047322066457Category :
Accessories for Pressure GaugesWeight :
0.02 kgRIEGLER Pressure gauge connection nipple made of brass, for pressure measurement - Type 257.12
The RIEGLER pressure gauge connection nipple, self-sealing, MS, G 3/8 AG, G 1/4 IG adds protection and connection functions to pressure gauges. The housing is made of brass. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Material | Brass |
| PN | 600 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/4 |
| External thread | G 3/8 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102624] RIEGLER Pressure gauge connection nipple, brass, G 1/2 ET, G 1/4 IT](/web/image/product.template/170596/image_128/%5B102624%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20brass%2C%20G%201-2%20ET%2C%20G%201-4%20IT?unique=aff34c5)
|
Type number: 257.13 |
1.82 € | |
![[102622] RIEGLER Pressure gauge connection nipple, brass, G 1/4 ET, G 1/8 IT](/web/image/product.template/170594/image_128/%5B102622%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20brass%2C%20G%201-4%20ET%2C%20G%201-8%20IT?unique=d3b2183)
|
Type number: 257.11 |
1.11 € | |

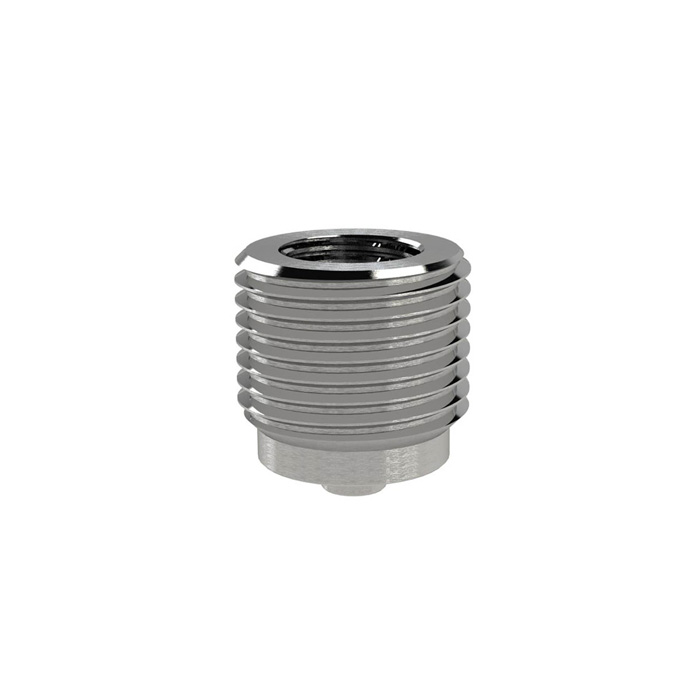

![[117286] RIEGLER Pressure gauge connection nipple, self-sealing, ES, G 1/2 AG, G 1/4 IG](/web/image/product.template/274831/image_128/%5B117286%5D%20RIEGLER%20Pressure%20gauge%20connection%20nipple%2C%20self-sealing%2C%20ES%2C%20G%201-2%20AG%2C%20G%201-4%20IG?unique=9723b7b)
|
Type number: 257.13-ES |
41.03 € | |
