RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/4
Type number: 9002
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102641EAN :
4047322122689Category :
Accessories for Pressure GaugesWeight :
0.08 kgRIEGLER Pressure gauge stopcock made of bare brass, for pressure measurement, G 1/4 - type 9002
The RIEGLER pressure gauge stopcock, socket - socket, made of bare brass, G 1/4 adds protection and connection functions to pressure gauges. The housing is made of bright brass. G 1/4 connection thread - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Temperature range max. | 50 °C |
| Housing | Brass bright |
| Area of application | for all pressure gauges with flat sealing ring to DIN 16258 |
| Hand lever | Plastic |
| Thread | G 1/4 |
| SW | 17 mm |
| PN | 6 bar |
| Execution | Socket / sleeve |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

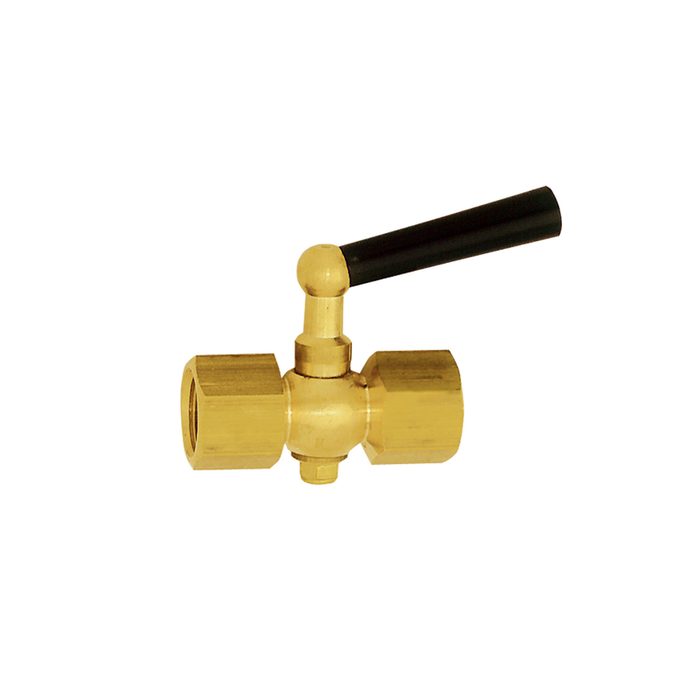

![[102644] RIEGLER Block valve pressure gauge, Bushing - Bushing, 1.4571, G 1/2](/web/image/product.template/170616/image_128/%5B102644%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing%20-%20Bushing%2C%201.4571%2C%20G%201-2?unique=0cf56c1)
|
Type number: 9004/ES |
81.48 € | |
![[102643] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/2](/web/image/product.template/170615/image_128/%5B102643%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%201-2?unique=3f832b5)
|
Type number: 9004/M |
15.33 € | |
![[102645] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/2](/web/image/product.template/170617/image_128/%5B102645%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%201-2?unique=7c0d1c7)
|
Type number: 9005/60 |
24.93 € | |
![[102646] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 1/2](/web/image/product.template/170618/image_128/%5B102646%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%201-2?unique=4afe234)
|
Type number: 9005/40 |
25.86 € | |
![[102642] RIEGLER Block valve pressure gauge, Bushing-Bushing, bright brass, G 3/8](/web/image/product.template/170614/image_128/%5B102642%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20Bushing-Bushing%2C%20bright%20brass%2C%20G%203-8?unique=e8e420a)
|
Type number: 9003 |
12.74 € | |
