Type number: 9180/M

54.23 € 54.230000000000004 EUR 54.23 € VAT Included

63.29 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

102670

EAN :

4047322123389

Category :

Accessories for Pressure Gauges

Weight :

0.79 kg

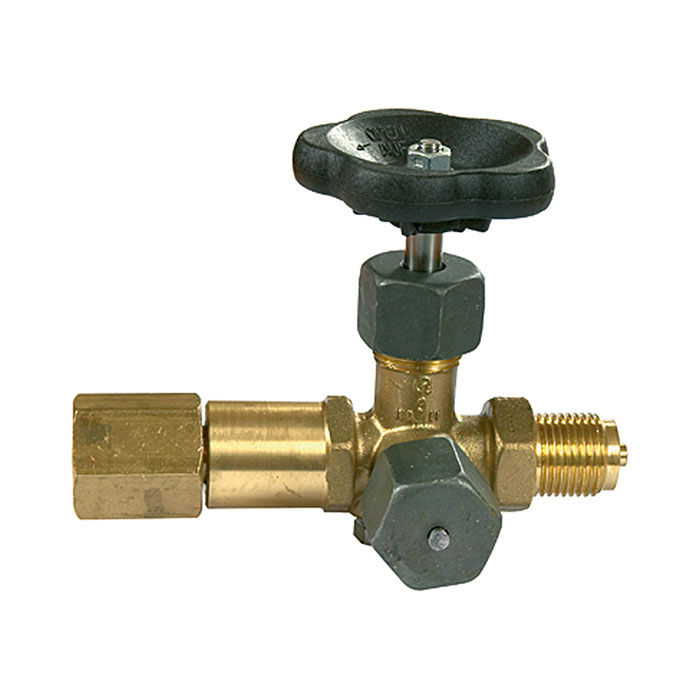

RIEGLER Mano shut-off valves made of brass, for pressure measurement, G 1/2 - Type 9180/M

The RIEGLER Mano shut-off valve, pivotable socket, DIN16271, brass, G 1/2 supplements pressure gauges with protection and connection functions. The housing is made of brass with PTFE seals. The operating temperature is between -10 °C and 120 °C. Connection thread G 1/2 - suitable for common industry standards. Protection and functional extension for pressure gauges.

Field of application

Typical areas of application: Professional pressure gauge assembly.

Housing Brass
Sealing material PTFE
Handwheel Plastic
Operating temperature min. -10 °C
Operating temperature max. 120 °C
Thread G 1/2
SW 27 mm
PN 250 bar
Execution Spigot / rotatable socket and shaft, with test spigot M20x1.5
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Valve spindle Stainless steel
Valve cone Stainless steel
Union nut Steel
Clamping sleeve Steel
