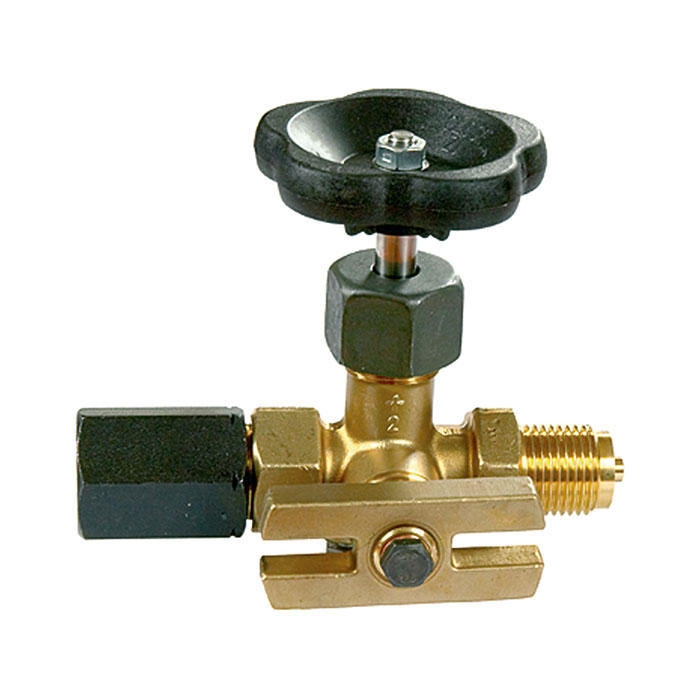

RIEGLER Blocking valve pressure gauge, taps-tension sleeve, brass, G 1/2
Type number: 9185/M
EAN: 4047322123433
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102672EAN :
4047322123433Category :
Accessories for Pressure GaugesWeight :
0.73 kgPressure gauge shut-off valve, spigot - clamping sleeve, with test flange 60x25x10, made of brass, G 1/2, PN 250 bar, SW 27, max. 120 °C
| Housing | Brass |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 250 bar |
| Execution | Spigot / clamping sleeve, with test flange 60x25x10 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Valve spindle | Stainless steel |
| Valve cone | Stainless steel |
| Union nut | Steel |
| Clamping sleeve | Steel |
