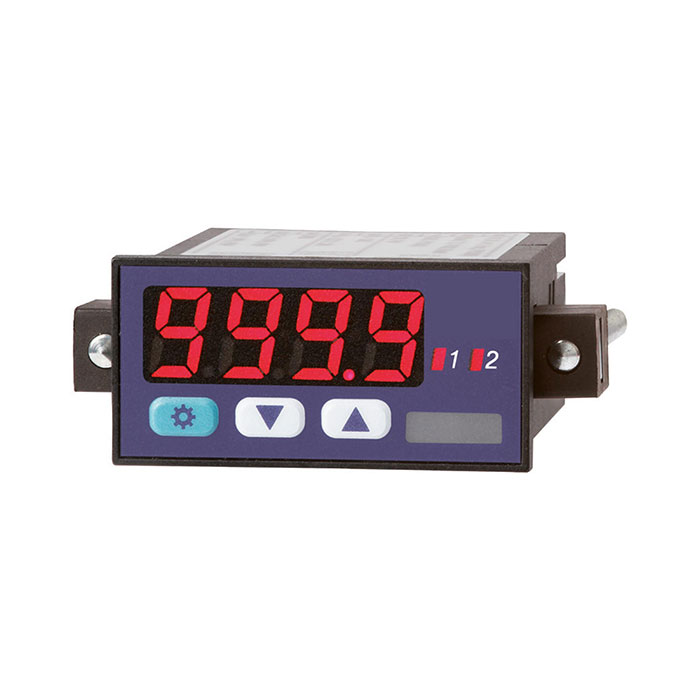

RIEGLER Micro-processor controlled digital display, 4-digit LED display
Type number: 894.10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102757EAN :
4047322122559Weight :
0.15 kgMicroprocessor-controlled digital display, built-in version, 4-digit LED display, accuracy +/-0.5% +/- 1 digit of span
| Protection class | iP 65 on the front |
| Digital output | RS 485 |
| Accuracy | ± 0.5% ± 1 digit of the span |
| Auxiliary energy | DC 9 ... 28 V, current consumption max. 60 mA at DC 12 V |
| Analogue output | Two freely programmable transistor switching outputs |
| Height | 24 mm |
| Width | 48 mm |
| Depth | 52 mm |
| Entrance | freely selectable 4 ... 20 mA, 0 ... 20 mA, 0 ... 1 V, 0 ... 10 V |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
