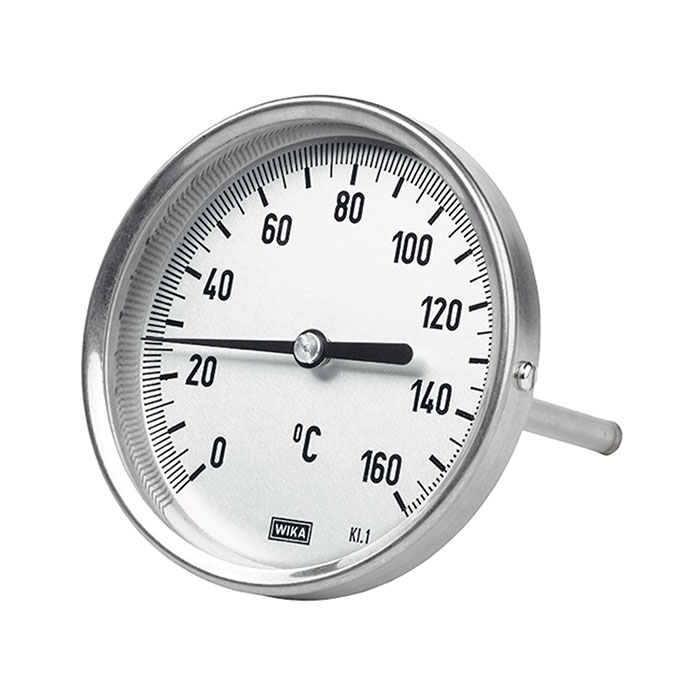

RIEGLER Bi-metallic thermometer, rear G 1/2, Immersion shaft length 63 mm
Type number: 5203
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bimetal thermometer made of stainless steel, for pressure measurement, G 1/2 - Type 5203
The RIEGLER bimetal thermometer, G 1/2 rear, L=63, Ø 100, 0 °C to 160 °C measures the temperature in pipes and containers. The housing is made of stainless steel. G 1/2 connection thread - suitable for common industry standards. Can be changed under pressure thanks to protective tube.
Field of application
Typical areas of application: Temperature monitoring in industry and process technology.
| Housing | CrNi steel |
| Type | 52 |
| Viewing window | Instrument flat glass |
| Display correction | Adjustable pointer |
| Diving shaft | Ø 8 mm, stainless steel 1.4571 |
| Operating pressure | max. 25 bar (on the immersion shaft) |
| Thread | G 1/2 |
| Diameter | 100 mm |
| Graduation value in the bar range | 1 bar |
| Dip shaft length | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Ring | CrNi steel |
| Display range min. | 0 °C |
| Display range max. | 160 °C |
| Connection position | at the back |
| Class name | FLEX |
