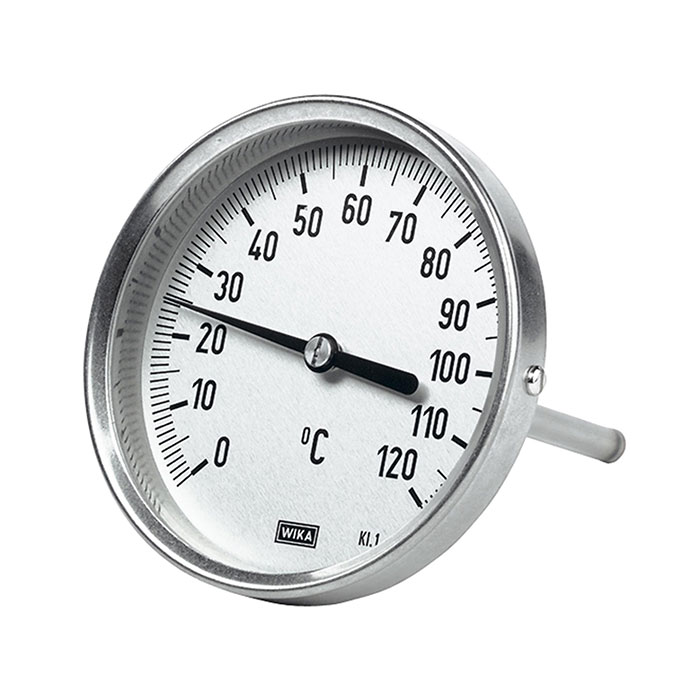

RIEGLER Bi-metallic thermometer, rear, L1=100 mm / L2=80 mm, Ø 100
Type number: 5250
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Bimetal thermometer, high-quality design, rear connection, for thermowell types SR02, SR12, SR22, Ø100mm, display range 0°C to 250°C
| Housing | CrNi steel |
| Type | 52 |
| Viewing window | Instrument flat glass |
| Display correction | Adjustable pointer |
| Diving shaft | Ø 8 mm, stainless steel |
| Operating pressure | max. 25 bar (at the thermowell) |
| Suitable for thermowell types | SR02 / SR12 / SR22 |
| Diameter | 100 mm |
| Graduation value in the bar range | 2 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | smooth, with collar for protection tube, Ø 18 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Ring | CrNi steel |
| Display range min. | 0 °C |
| Display range max. | 250 °C |
| Connection position | at the back |
| Class name | FLEX |
