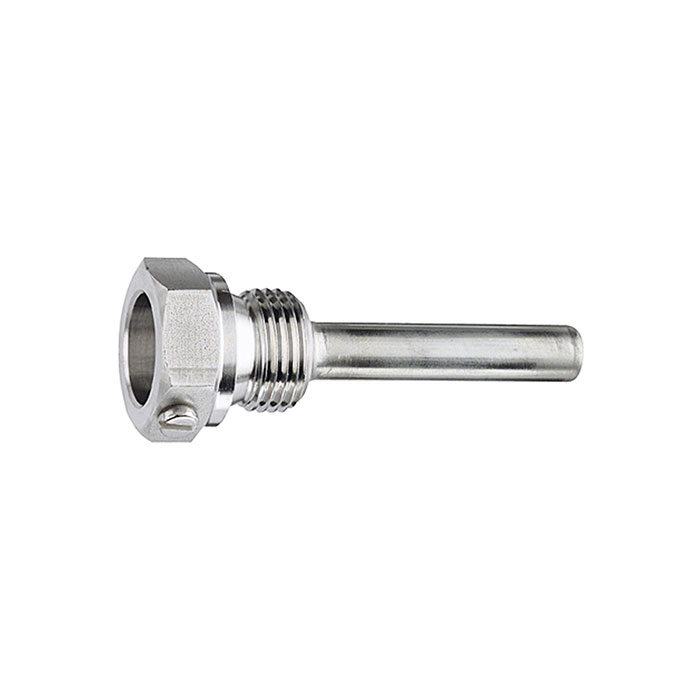

RIEGLER Protective pipe for screw-in, G 1/2, L1=63 mm, CrNi steel 1.4571
Type number: SR 11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in thermowell made of stainless steel 1.4571, for pressure measurement, max. 25 bar - type SR 11
The RIEGLER screw-in thermowell, G 1/2, L1 = 63 mm, stainless steel 1.4571 measures the temperature in pipes and containers. The housing is made of stainless steel 1.4571. Designed for a maximum operating pressure of 25 bar. Can be changed under pressure thanks to protective tube.
Field of application
Typical areas of application: Temperature monitoring in industry and process technology.
| Connection thread | G 1/2 |
| Max. operating pressure | 25 bar |
| Material | Stainless steel 1.4571 |
| Sealing collar Ø | 26 mm |
| Thermowell Ø | 10 mm |
| SW | 27 mm |
| L1 | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
