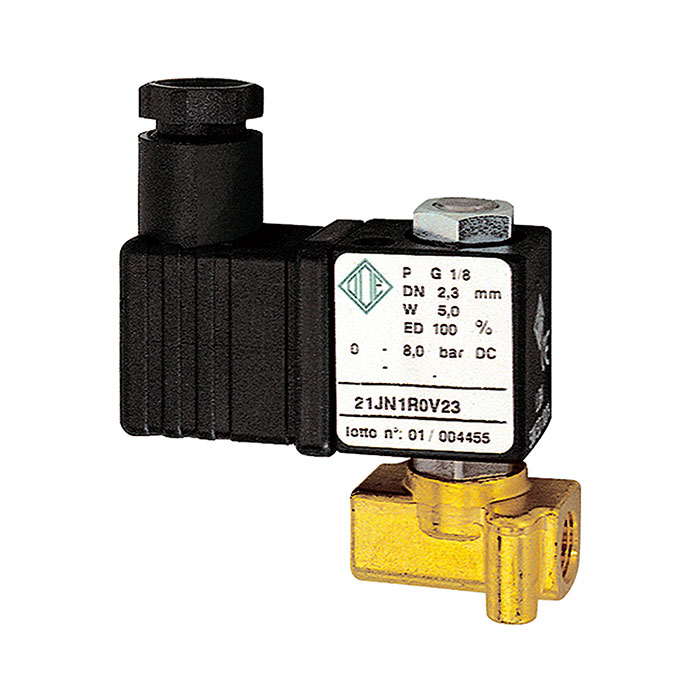

RIEGLER 2/2-solenoid valve,NC,dir. operated,24V DC,5W,FKM,G1/8,PN0-8bar
Type number: MV 1321 G
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-MV made of brass, for industrial systems, max. 8 bar - Type MV 1321 G
The RIEGLER 2/2-MV, MS, NC, direct, 24V DC, 5W, FKM, G1/8, PN0-8bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0 bar to 8 bar. The permissible medium temperature is between -10 °C and 140 °C. Connection thread G 1/8 - suitable for common industry standards. Protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 9/PG 11, to ISO 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 140 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 1/8 |
| DN | 45353 |
| Design | 1 |
| Function | normally closed (NC) |
| A | 41 mm |
| B | 30 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102895] RIEGLER 2/2-solenoid valve,NC,dir. operated,24V DC,8W,FKM,G1/4,PN0-2bar](/web/image/product.template/170864/image_128/%5B102895%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cdir.%20operated%2C24V%20DC%2C8W%2CFKM%2CG1-4%2CPN0-2bar?unique=83cfc84)
|
Type number: MV 1327 G |
42.32 € | |
![[102894] RIEGLER 2/2-solenoid valve,NC,dir. operated,24V DC,8W,FKM,G1/4,PN0-6bar](/web/image/product.template/170863/image_128/%5B102894%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cdir.%20operated%2C24V%20DC%2C8W%2CFKM%2CG1-4%2CPN0-6bar?unique=ac2826d)
|
Type number: MV 1326 G |
42.32 € | |

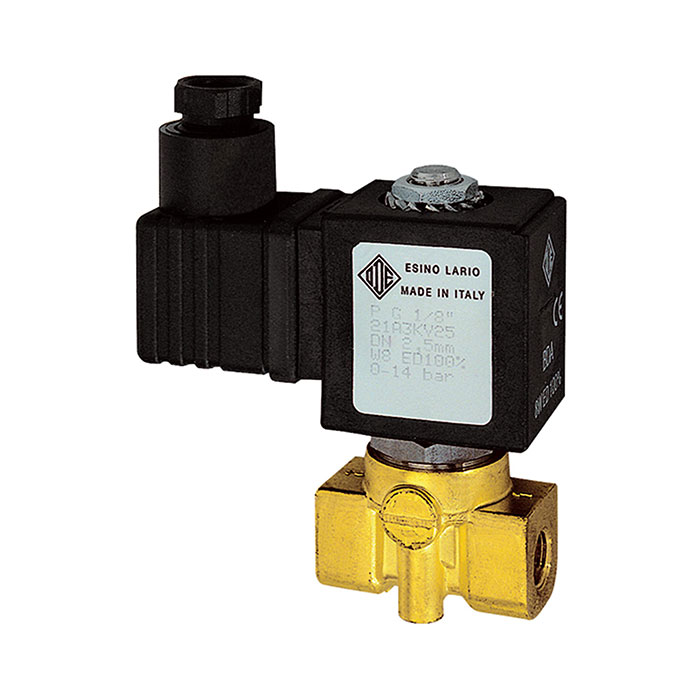

![[102893] RIEGLER 2/2-solenoid valve,NC,dir. operated,24V DC,8W,FKM,G1/4,PN0-9bar](/web/image/product.template/170862/image_128/%5B102893%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cdir.%20operated%2C24V%20DC%2C8W%2CFKM%2CG1-4%2CPN0-9bar?unique=04c1487)
|
