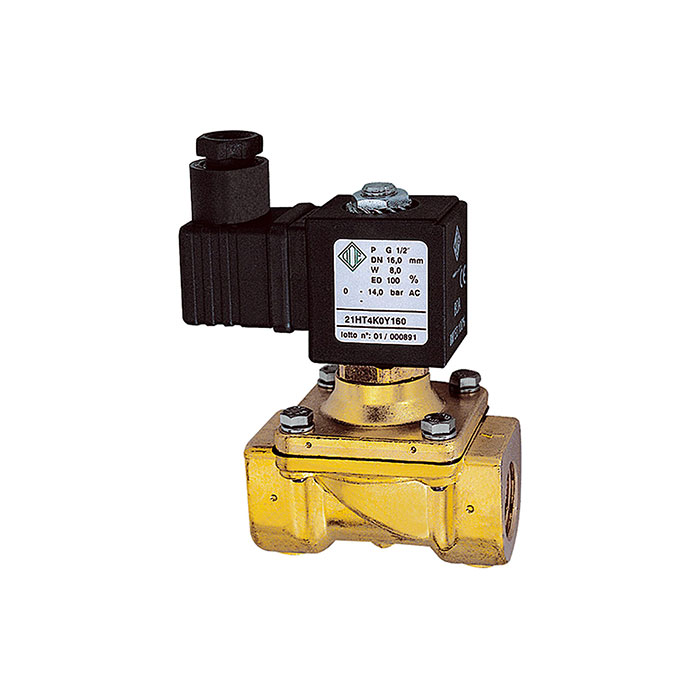

RIEGLER 2/2-solenoid valve,NC,force pilot operat.,230-240V,G3/8,PN0-14bar
Type number: MV 1411
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-MV made of brass, for industrial systems, max. 14 bar - Type MV 1411
The RIEGLER 2/2-MV,MS,NC,zwangsg,230-240V,50-60Hz,16VA,NBR+PA,G3/8,PN0-14bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with NBR seals. The operating pressure range is 0 bar to 14 bar. The permissible medium temperature is between -10 °C and 90 °C. Connection thread G 3/8 - suitable for common industry standards. Protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 9/PG 11, to ISO 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 14 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 3/8 |
| DN | 11 |
| Design | 8 |
| Function | normally closed (NC) |
| A | 54 mm |
| B | 56 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102905] RIEGLER 2/2-solenoid valve,NC,force pilot operat.,230-240V,G1/2,PN0-14bar](/web/image/product.template/170874/image_128/%5B102905%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cforce%20pilot%20operat.%2C230-240V%2CG1-2%2CPN0-14bar?unique=ada71cf)
|
Type number: MV 1412 |
74.78 € | |
![[102907] RIEGLER 2/2-solenoid valve,NC,force pilot operat.,230-240V,G1,PN0-14bar](/web/image/product.template/170876/image_128/%5B102907%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cforce%20pilot%20operat.%2C230-240V%2CG1%2CPN0-14bar?unique=47fd21f)
|
Type number: MV 1414 |
131.82 € | |
![[102908] RIEGLER 2/2-solenoid valve,NC,force pilot operat.,230-240V,G1,PN0-16bar](/web/image/product.template/170877/image_128/%5B102908%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cforce%20pilot%20operat.%2C230-240V%2CG1%2CPN0-16bar?unique=19592fd)
|
Type number: MV 1415 |
111.16 € | |

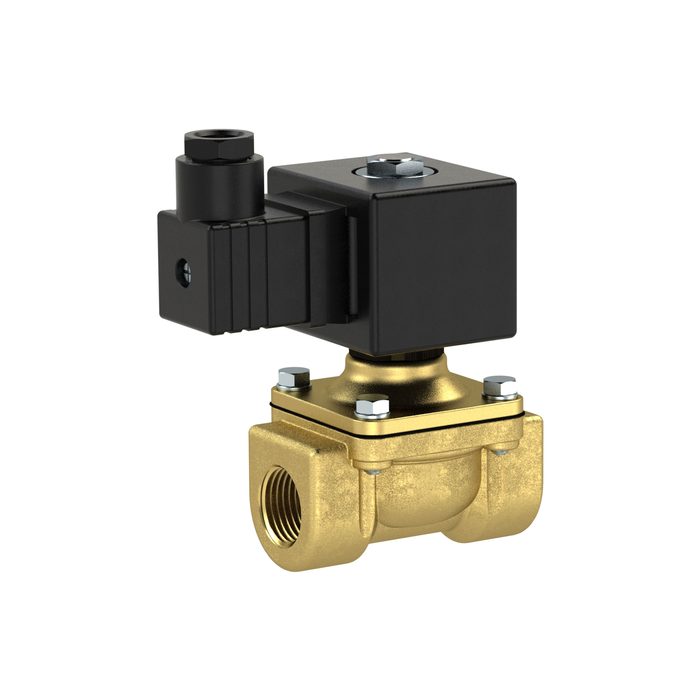

![[102906] RIEGLER 2/2-solenoid valve,NC,force pilot operat.,230-240V,G3/4,PN0-14bar](/web/image/product.template/170875/image_128/%5B102906%5D%20RIEGLER%202-2-solenoid%20valve%2CNC%2Cforce%20pilot%20operat.%2C230-240V%2CG3-4%2CPN0-14bar?unique=6485ff9)
|
