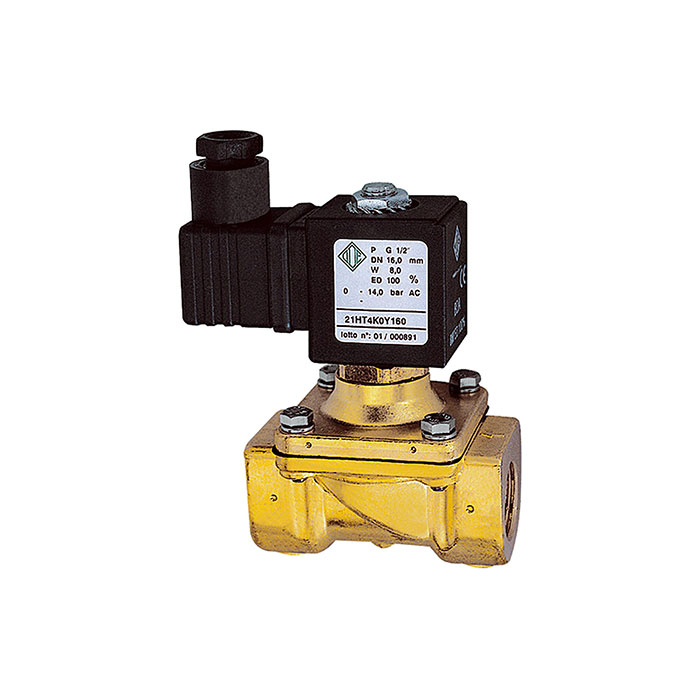

RIEGLER 2/2-solenoid valve,NC,force pilot operat.,230-240V,G3/4,PN0-14bar
Type number: MV 1413
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2/2-way MV, MS, NC, positively driven, 230 - 240V, 50 - 60Hz, 16VA, medium temp. -10°C to 90°C, NBR+PA, G 3/4, PN 0 - 14bar
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 9/PG 11, to ISO 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 14 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | G 3/4 |
| DN | 16 |
| Design | 8 |
| Function | normally closed (NC) |
| A | 54 mm |
| B | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
