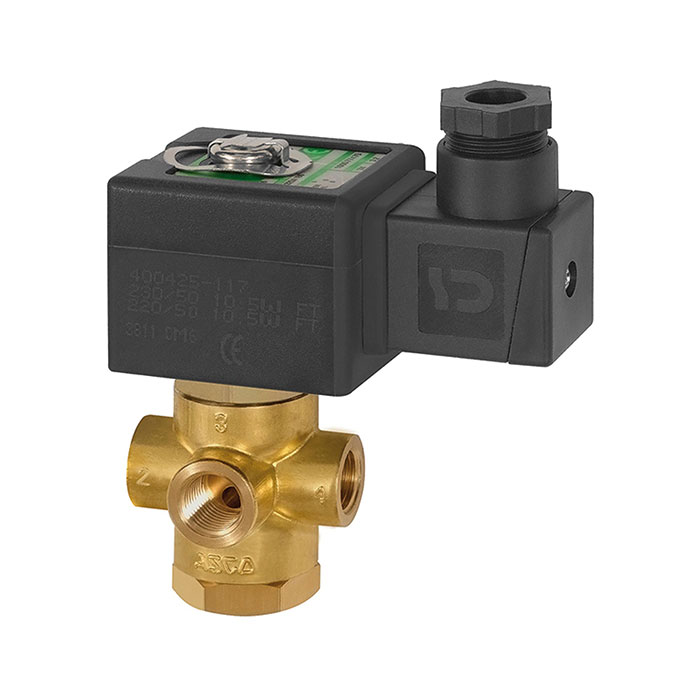

RIEGLER 3/2-way solenoid valve brass, NC, directly operated 24 V DC
Type number: MV 3212 G
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way MV. made of brass, for industrial systems, max. 4 bar - Type MV 3212 G
The RIEGLER 3/2-way MV., MS, NC, direct 24 V DC, NBR, Rp 1/4, PN 0-4 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with NBR seals. The operating pressure range is 0 bar to 4 bar. The permissible medium temperature is between -20 °C and 90 °C. Connection thread Rp 1/4 (Rp thread to ISO 7-1) - suitable for common industry standards. Protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | NBR |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to ISO 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 4 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 75 °C |
| Interior parts | Stainless steel |
| Valve seat | Brass |
| Thread | Rp 1/4 |
| DN | 45325 |
| Thread standard | Rp thread according to ISO 7-1 |
| Design | 10 |
| Function | normally closed (NC) |
| A | 80 mm |
| B | 43 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

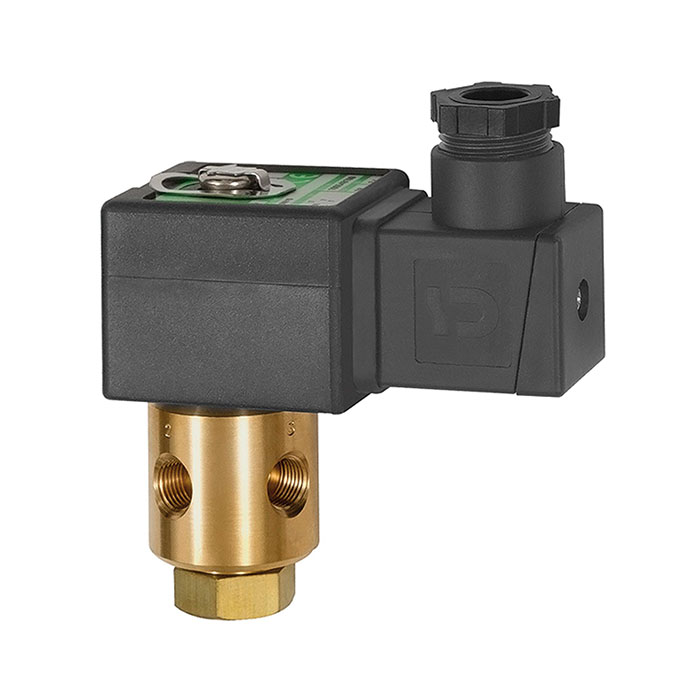

![[102965] RIEGLER 3/2-way solenoid valve brass, NC, directly operated 24 V DC](/web/image/product.template/170934/image_128/%5B102965%5D%20RIEGLER%203-2-way%20solenoid%20valve%20brass%2C%20NC%2C%20directly%20operated%2024%20V%20DC?unique=cdefbd0)
|
