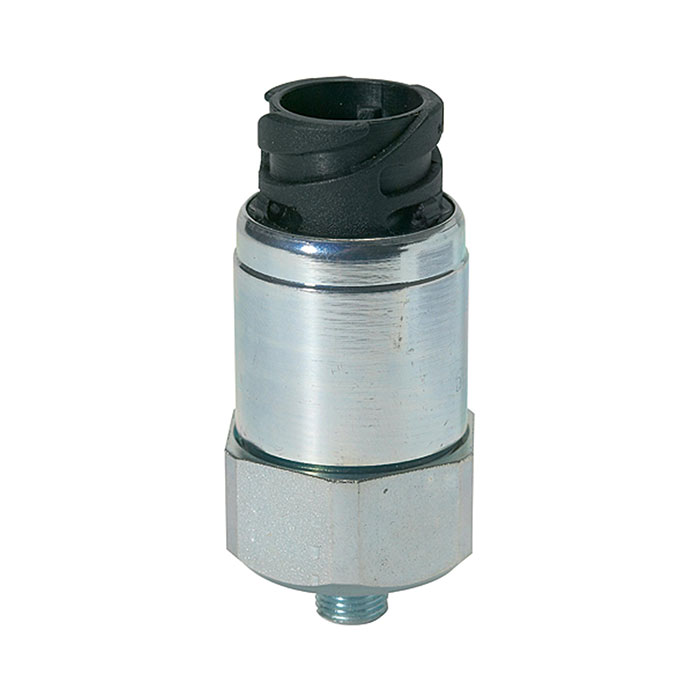

RIEGLER Pressure switch changeover contact, Bayonet connector, 1 - 10 bar
Type number: DS 4602
EAN: 4047322126328
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure switch changeover contact, bayonet connection, galvanized steel, ambient temp. -25 °C to 85 °C, G 1/8, setting range 1-10 bar
| Electrical connection | Bayonet coupling Plug connector Ø 2.5 mm |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 85 °C |
| Material | Galvanized steel |
| Switching voltage | 42 V |
| Switching frequency | 200/min |
| Thread | G 1/8 |
| Function | Changeover contact |
| Setting range min. | 1 bar |
| Type of construction | Diaphragm (UR) spring-loaded |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 10 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
