RIEGLER Pressure switch changeover contact, Bayonet connector, 10-70 bar
Type number: DS 4603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure switch made of galvanized steel, for pressure measurement, G 1/8 - type DS 4603
The RIEGLER pressure switch, bayonet connection, galvanized steel, G 1/8, 10-70 bar switches electrical contacts at a set pressure value. The housing is made of galvanized steel. The ambient temperature is between -25 °C and 85 °C. Connection thread G 1/8 - suitable for common industry standards. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Electrical connection | Bayonet coupling Plug connector Ø 2.5 mm |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 85 °C |
| Material | Galvanized steel |
| Switching voltage | 42 V |
| Switching frequency | 200/min |
| Thread | G 1/8 |
| Function | Changeover contact |
| Setting range min. | 10 bar |
| Type of construction | Spring-loaded piston |
| Setting range max. | 70 bar |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103023] RIEGLER Pressure switch changeover contact, Bayonet connector, 0.5-2 bar](/web/image/product.template/170992/image_128/%5B103023%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%2C%20Bayonet%20connector%2C%200.5-2%20bar?unique=02ea161)
|
Type number: DS 4601 |
58.70 € | |
![[103026] RIEGLER Pressure switch changeover contact, Bayonet connector, 0.5-2 bar](/web/image/product.template/170995/image_128/%5B103026%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%2C%20Bayonet%20connector%2C%200.5-2%20bar?unique=0d287f8)
|
Type number: DS 4611 |
58.70 € | |
![[103028] RIEGLER Pressure switch changeover contact, Bayonet connector, 10-70 bar](/web/image/product.template/170997/image_128/%5B103028%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%2C%20Bayonet%20connector%2C%2010-70%20bar?unique=83f48e0)
|
Type number: DS 4613 |
61.31 € | |

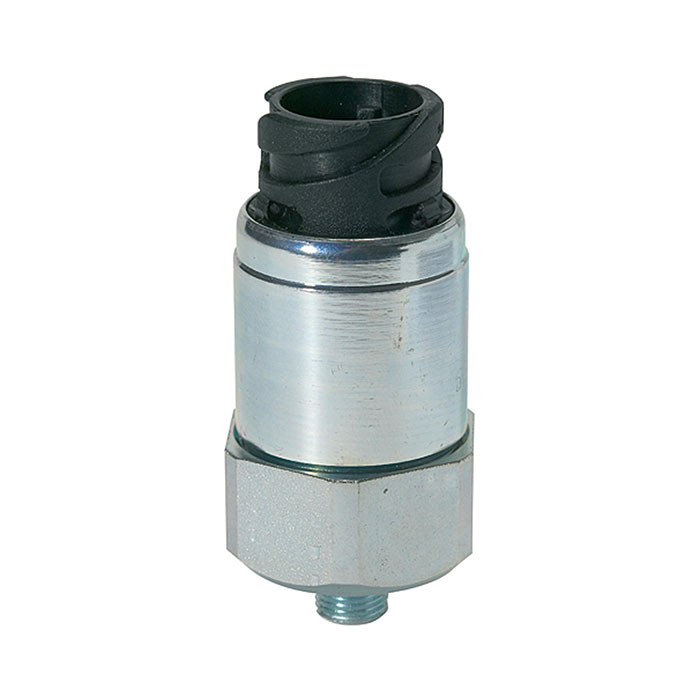

![[103024] RIEGLER Pressure switch changeover contact, Bayonet connector, 1 - 10 bar](/web/image/product.template/170993/image_128/%5B103024%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%2C%20Bayonet%20connector%2C%201%20-%2010%20bar?unique=3c401b5)
|
Type number: DS 4602 |
58.70 € | |
![[103027] RIEGLER Pressure switch changeover contact, Bayonet connector, 1 - 10 bar](/web/image/product.template/170996/image_128/%5B103027%5D%20RIEGLER%20Pressure%20switch%20changeover%20contact%2C%20Bayonet%20connector%2C%201%20-%2010%20bar?unique=f70056a)
|
Type number: DS 4612 |
58.70 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

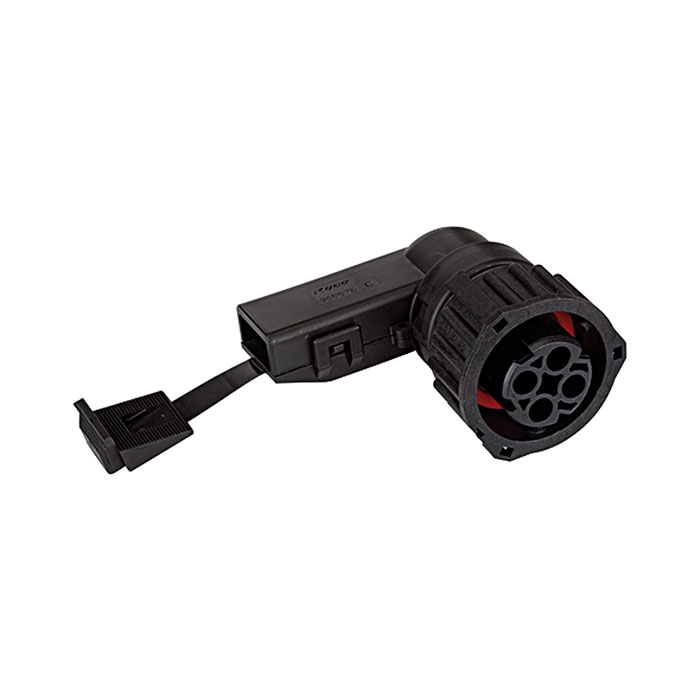

![[103029] RIEGLER Plug connector for pressure switches with bayonet coupling](/web/image/product.template/170998/image_128/%5B103029%5D%20RIEGLER%20Plug%20connector%20for%20pressure%20switches%20with%20bayonet%20coupling?unique=a21776a)
|
Type number: 1920.DS46 |
9.62 € | |
