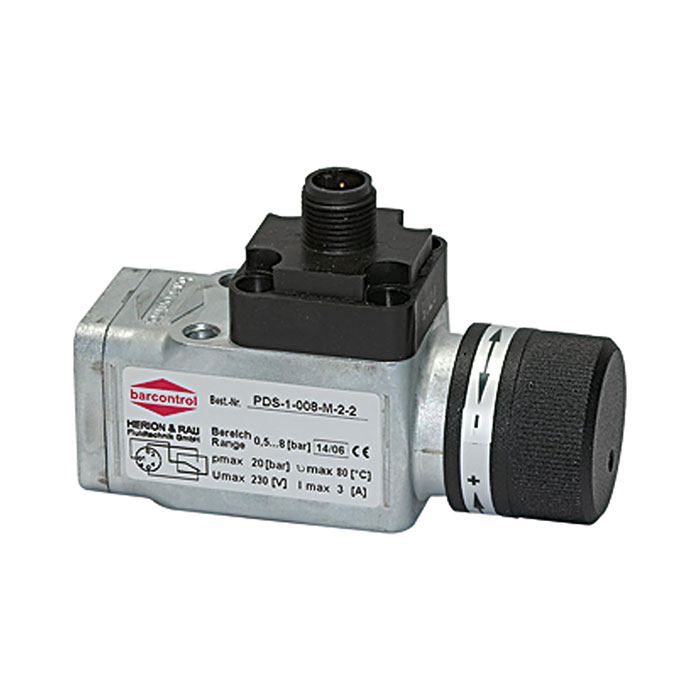

RIEGLER Pressure switch, Changeover contact, Special die cast, 0.5-8 bar
Type number: DS 5822
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure switch elec. Connection M12x1 made of special die-cast, for pressure measurement, G 1/4 - Type DS 5822
The RIEGLER pressure switch elec. Connection M12x1, G 1/4, 0.5-8 bar switches electrical contacts at a set pressure value. The housing is made of special die-cast with NBR seals. The temperature range is between -20 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Protection class IP 65 (DIN 43650), IP 67 (M12x1). Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Housing | Special casting |
| Sealing material | NBR |
| Membrane | NBR |
| Protection class | IP 65 (DIN 43650), IP 67 (M12x1) |
| Area of application | Compressed air applications |
| Switching voltage | max. 48 V AC / 24 V DC |
| Switching frequency | 200/min. |
| Adjustment cap | Powder-coated aluminum |
| Setting range min. | 0.5 bar |

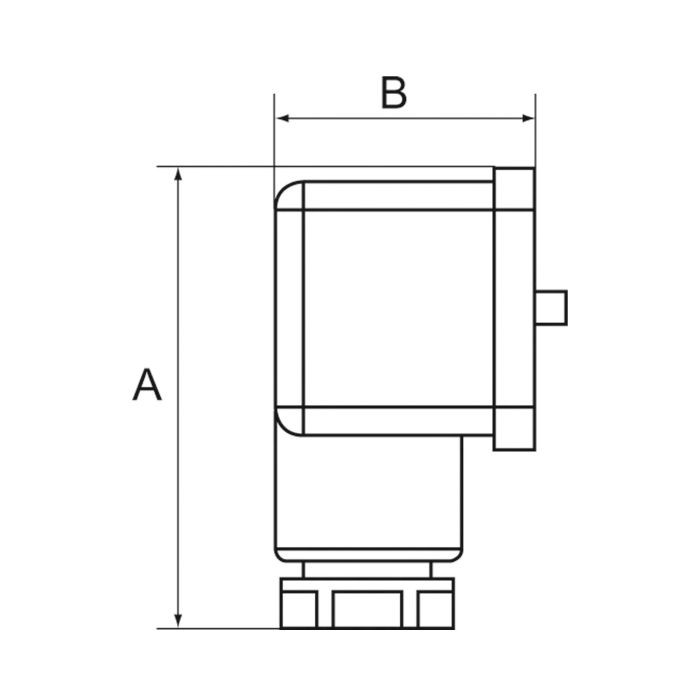

| A | 48 mm |
| B | 28 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 8 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Inductive load | max. 1 A |
| resistive load | max. 4 A / 3 A |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103033] RIEGLER Pressure switch, Changeover contact, Special die cast, 0,2-2 bar](/web/image/product.template/171002/image_128/%5B103033%5D%20RIEGLER%20Pressure%20switch%2C%20Changeover%20contact%2C%20Special%20die%20cast%2C%200%2C2-2%20bar?unique=9fcf9a9)
|
Type number: DS 5821 |
52.93 € | |
![[103035] RIEGLER Pressure switch, Changeover contact, Special die cast, 1 - 16 bar](/web/image/product.template/171004/image_128/%5B103035%5D%20RIEGLER%20Pressure%20switch%2C%20Changeover%20contact%2C%20Special%20die%20cast%2C%201%20-%2016%20bar?unique=1b466d8)
|
Type number: DS 5823 |
52.93 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

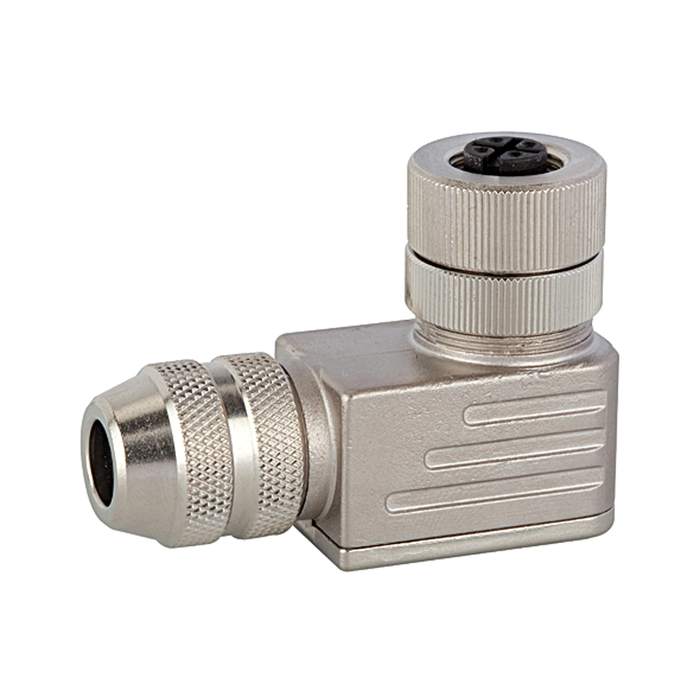

![[101635] RIEGLER M12 angled line socket, 5-pole, with screw clamps](/web/image/product.template/169608/image_128/%5B101635%5D%20RIEGLER%20M12%20angled%20line%20socket%2C%205-pole%2C%20with%20screw%20clamps?unique=c127fbb)
|
Type number: PVZ 10 |
33.32 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

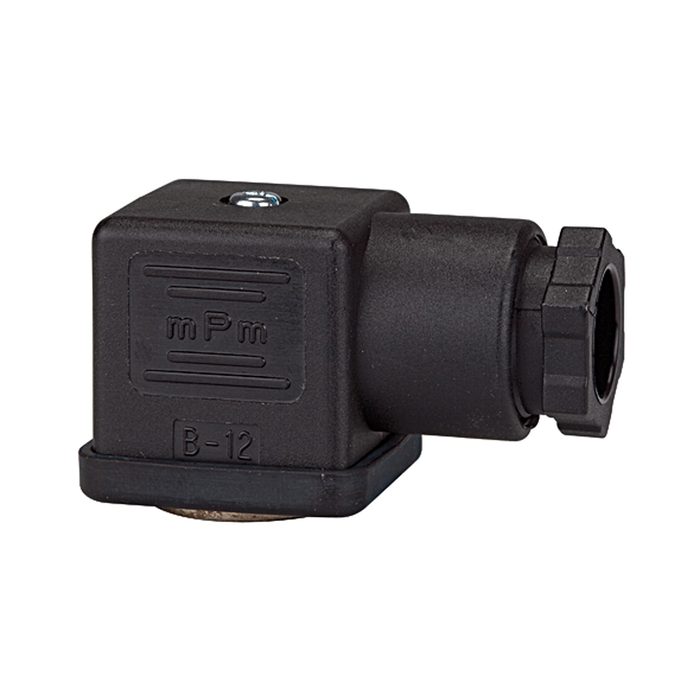

![[100282] RIEGLER Equipment plug for pressure switch, acc. to DIN EN 175301-803 A](/web/image/product.template/139717/image_128/%5B100282%5D%20RIEGLER%20Equipment%20plug%20for%20pressure%20switch%2C%20acc.%20to%20DIN%20EN%20175301-803%20A?unique=19cf768)
|
