RIEGLER Vacuum pressure switch, Special die casting,G 1/4,-0.85/-0.15 bar
Type number: DS 5912
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Vacuum pressure switch made of special die-cast, for pressure measurement, G 1/4 - type DS 5912
The RIEGLER vacuum pressure switch,electr. connection M12x1,G 1/4,-0.85/-0.15bar switches electrical contacts at a set pressure value. The housing is made of special die-cast with NBR seals. The temperature range is between -20 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. Protection class IP 65 (DIN 43650), IP 67 (M12x1). Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Housing | Special casting |
| Membrane | NBR |
| Protection class | IP 65 (DIN 43650), IP 67 (M12x1) |
| Area of application | Compressed air applications |
| Switching voltage | max. 48 V AC / 24 V DC |
| Switching frequency | 1Hz |
| Setting range | -0.85 / -0.15 bar |
| A | 48 mm |
| B | 28 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Inductive load | max. 1 A |
| resistive load | max. 4 A / 3 A |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103038] RIEGLER Vacuum pressure switch,Special die casting,Flange,-0.85/-0.15 bar](/web/image/product.template/171007/image_128/%5B103038%5D%20RIEGLER%20Vacuum%20pressure%20switch%2CSpecial%20die%20casting%2CFlange%2C-0.85--0.15%20bar?unique=31690da)
|
Type number: DS 5902 |
67.06 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

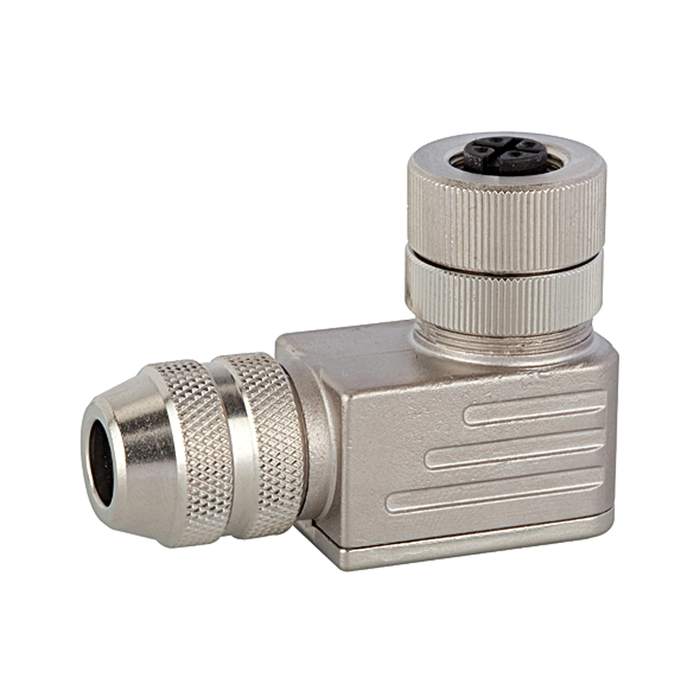

![[101635] RIEGLER M12 angled line socket, 5-pole, with screw clamps](/web/image/product.template/169608/image_128/%5B101635%5D%20RIEGLER%20M12%20angled%20line%20socket%2C%205-pole%2C%20with%20screw%20clamps?unique=4a8a202)
|
