RIEGLER Pressure switch, compressors, Three-phase current design 4-11 bar
Type number: MDR 3/11-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compressors Pressure Sch. Rotary line F4 1/2 for pressure measurement - Type MDR 3/11-10
The RIEGLER Kompressoren Drucksch. F4 1/2, G 1/2, 4-11 bar, 6.3-10 A switches electrical contacts at a set pressure value. The permissible medium temperature is between -5 °C and 80 °C. Protection class IP. Protection class IP 54. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Protection class | IP 54 |
| Medium temperature min. | -5 °C |
| Medium temperature max. | 80 °C |
| Switching frequency | max. 120 (electrical), 600 (mechanical) |
| Switching capacity | 7.5 kW |
| Switch-off pressure max. | 12 bar |
| Contact type | Normally closed contact (3-pole) |
| Setting range min. | 4 bar |
| max. load | 6,3 - 10,0 A |
| Execution | Three-phase version |
| Setting range max. | 11 bar |
| Compressed air connection | G 1/2 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103046] RIEGLER Pressure switch, compressors, Three-phase current design 4-11 bar](/web/image/product.template/171015/image_128/%5B103046%5D%20RIEGLER%20Pressure%20switch%2C%20compressors%2C%20Three-phase%20current%20design%204-11%20bar?unique=282b7e6)
|
Type number: MDR 3/11-16 |
131.00 € | |
![[103047] RIEGLER Pressure switch, compressors, Three-phase current design 4-11 bar](/web/image/product.template/171016/image_128/%5B103047%5D%20RIEGLER%20Pressure%20switch%2C%20compressors%2C%20Three-phase%20current%20design%204-11%20bar?unique=84e6f8d)
|
Type number: MDR 3/11-6,3 |
131.00 € | |

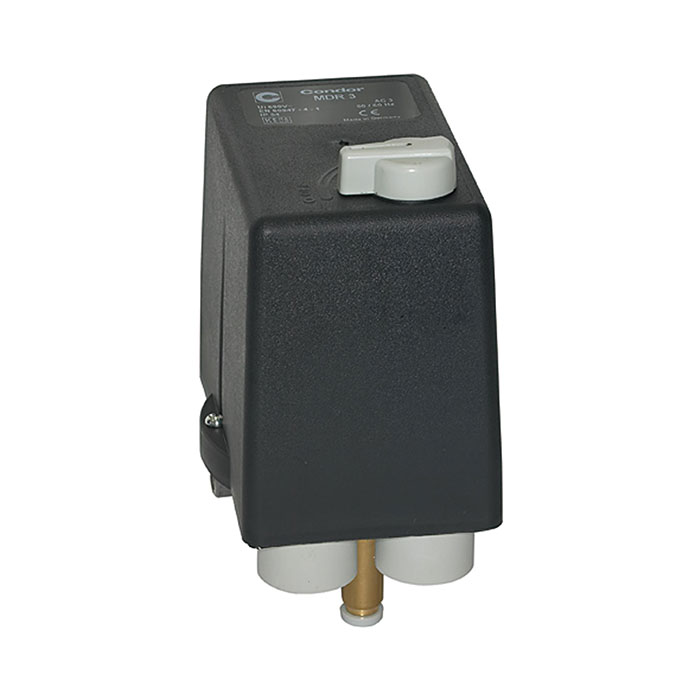

![[103049] RIEGLER Pressure switch, compressors, Three-phase current design 6-16 bar](/web/image/product.template/171018/image_128/%5B103049%5D%20RIEGLER%20Pressure%20switch%2C%20compressors%2C%20Three-phase%20current%20design%206-16%20bar?unique=357c443)
|
Type number: MDR 3/16-6,3 |
145.22 € | |
![[103050] RIEGLER Pressure switch, compressors, Three-phase current design 6-16 bar](/web/image/product.template/171019/image_128/%5B103050%5D%20RIEGLER%20Pressure%20switch%2C%20compressors%2C%20Three-phase%20current%20design%206-16%20bar?unique=e014f32)
|
Type number: MDR 3/16-10 |
145.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

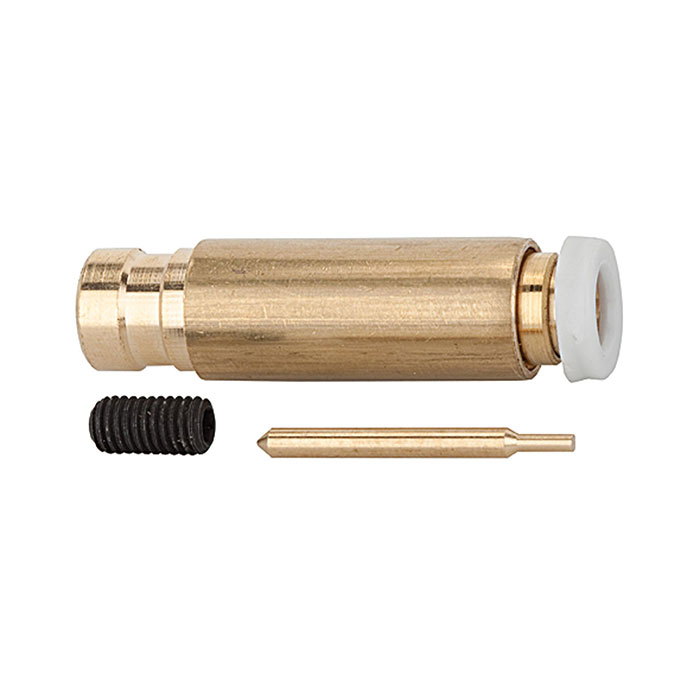

![[103051] RIEGLER Relief valve](/web/image/product.template/171020/image_128/%5B103051%5D%20RIEGLER%20Relief%20valve?unique=8747c64)
|
Type number: EV 3 |
16.01 € | |
![[103052] RIEGLER Motor protection relay (over-current relay) 10/16 A](/web/image/product.template/171021/image_128/%5B103052%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%2010-16%20A?unique=9715d24)
|
Type number: R 3/16 |
54.04 € | |
![[103053] RIEGLER Motor protection relay (over-current relay) 4/6.3 A](/web/image/product.template/171022/image_128/%5B103053%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%204-6.3%20A?unique=0e10a73)
|
Type number: R 3/6.3 |
53.28 € | |
![[103054] RIEGLER Motor protection relay (over-current relay) 6.3/10 A](/web/image/product.template/171023/image_128/%5B103054%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%206.3-10%20A?unique=241a4da)
|
Type number: R 3/10 |
54.04 € | |

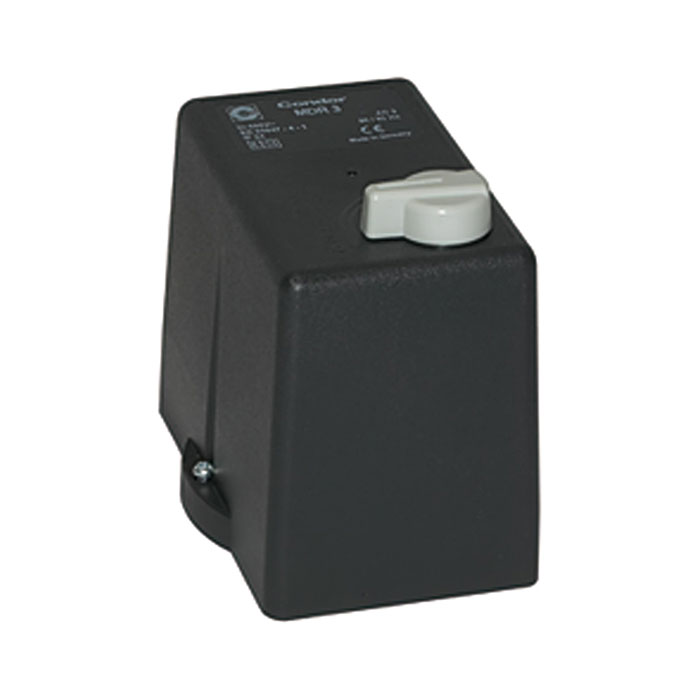

![[103055] RIEGLER Hood with on / off switch](/web/image/product.template/171024/image_128/%5B103055%5D%20RIEGLER%20Hood%20with%20on%20-%20off%20switch?unique=7699d3b)
|
Type number: H 3-EA |
15.79 € | |

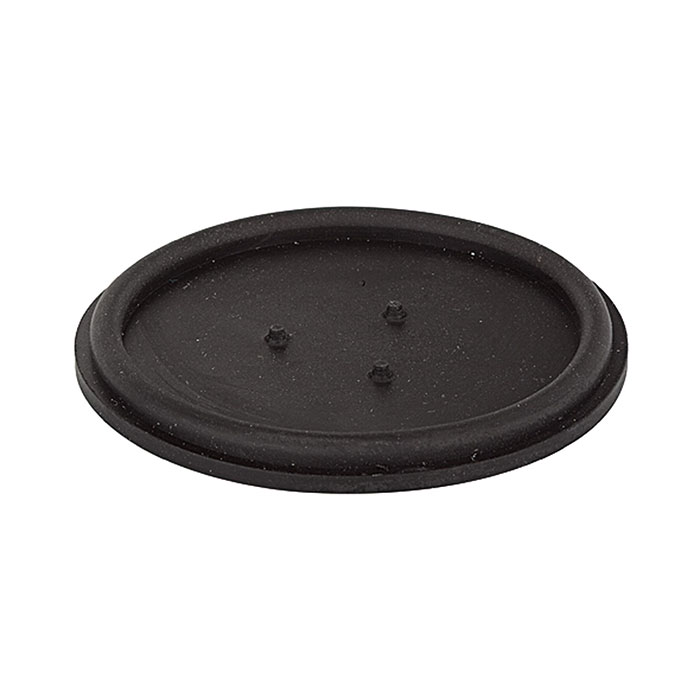

![[103056] RIEGLER Diaphragm](/web/image/product.template/171025/image_128/%5B103056%5D%20RIEGLER%20Diaphragm?unique=57486f2)
|
Type number: M 300 |
4.39 € | |
