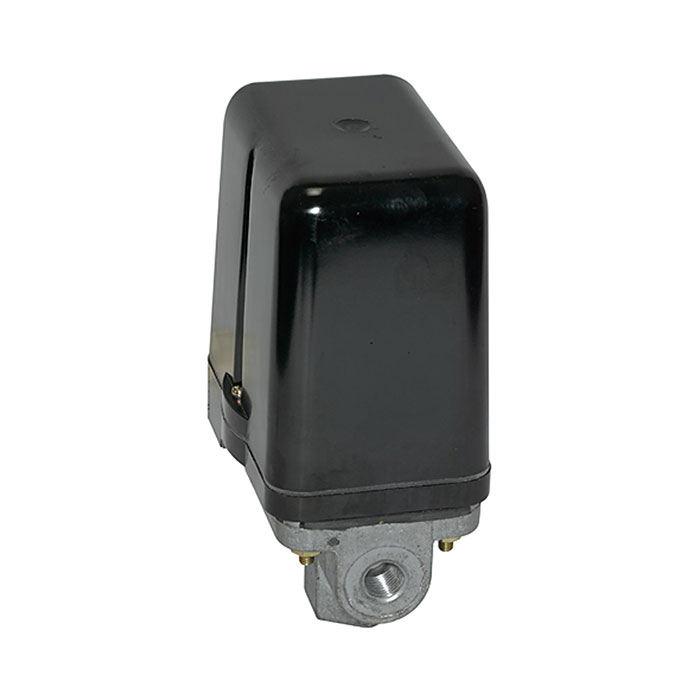

RIEGLER Pressure switch, compressors, Three-phase current design 2-11 bar
Type number: MDR 5/11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compressors Pressure switch for pressure measurement - Type MDR 5/11
The RIEGLER compressors pressure switch, without relief valve, G 1/2, 2-11 bar switches electrical contacts at a set pressure value. The permissible medium temperature is between -5 °C and 80 °C. Protection class IP. Protection class IP 54. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Protection class | IP 54 |
| Medium temperature min. | -5 °C |
| Medium temperature max. | 80 °C |
| Switching frequency | max. 120 (electrical), 600 (mechanical) |
| Switching capacity | 5.5 kW |
| Switch-off pressure max. | 16 bar |
| Contact type | Normally closed contact (3-pole) |
| Setting range min. | 2 bar |
| Execution | Three-phase version |
| Setting range max. | 11 bar |
| Compressed air connection | G 1/2 |
| Class name | PLUS |
