RIEGLER Pressure switch, compressors, Three-phase current design
Type number: MDR 5/16K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compressors Pressure switch for pressure measurement - Type MDR 5/16K
The RIEGLER compressors pressure switch, w. relief valve, G 1/2, 2.5-16 bar switches electrical contacts at a set pressure value. The permissible medium temperature is between -5 °C and 80 °C. Protection class IP. Protection class IP 54. Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Protection class | IP 54 |
| Medium temperature min. | -5 °C |
| Medium temperature max. | 80 °C |
| Switching frequency | max. 120 (electrical), 600 (mechanical) |
| Switching capacity | 5.5 kW |
| Switch-off pressure max. | 16 bar |
| Contact type | Normally closed contact (3-pole) |
| Setting range min. | 2.5 bar |
| Execution | Three-phase version |
| Setting range max. | 16 bar |
| Compressed air connection | G 1/2 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

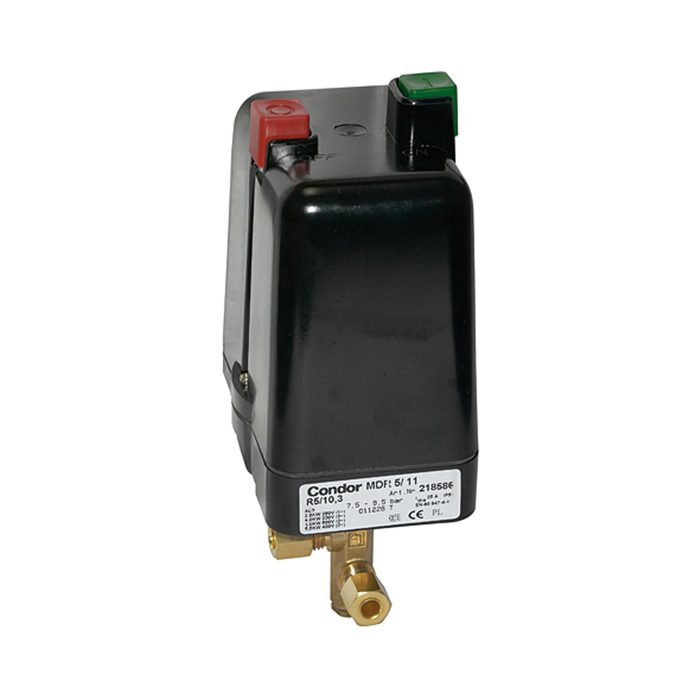

![[103059] RIEGLER Pressure switch, compressors, Three-phase current design 2-11 bar](/web/image/product.template/171028/image_128/%5B103059%5D%20RIEGLER%20Pressure%20switch%2C%20compressors%2C%20Three-phase%20current%20design%202-11%20bar?unique=77c4a22)
|
Type number: MDR 5/11K |
120.51 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

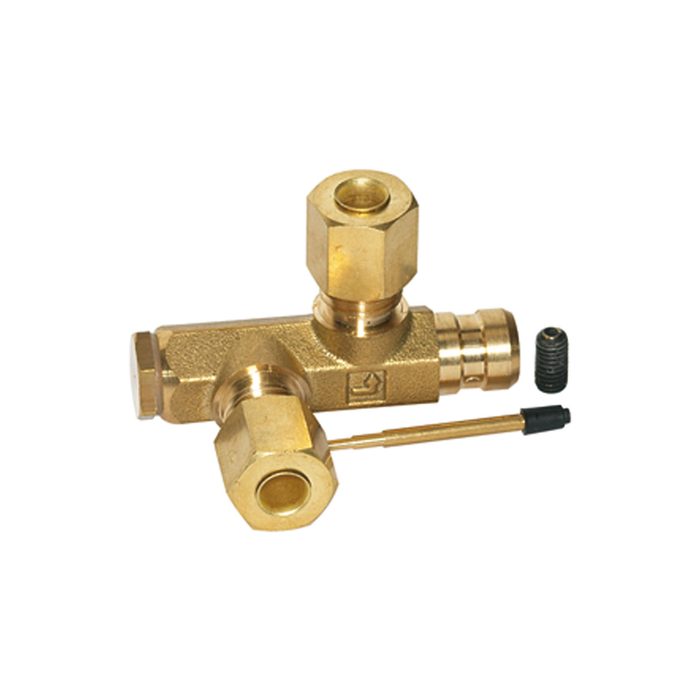

![[103061] RIEGLER Relief valve](/web/image/product.template/171030/image_128/%5B103061%5D%20RIEGLER%20Relief%20valve?unique=626a601)
|
Type number: EV 5 |
26.08 € | |
![[103062] RIEGLER Motor protection relay (over-current relay) 1.50/2.45 A](/web/image/product.template/171031/image_128/%5B103062%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%201.50-2.45%20A?unique=807ae35)
|
Type number: R 5/2.4 |
53.75 € | |
![[103063] RIEGLER Motor protection relay (over-current relay) 2.40/4.20 A](/web/image/product.template/171032/image_128/%5B103063%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%202.40-4.20%20A?unique=b5dc80f)
|
Type number: R 5/4.2 |
52.98 € | |
![[103064] RIEGLER Motor protection relay (over-current relay) 4.00/7.00 A](/web/image/product.template/171033/image_128/%5B103064%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%204.00-7.00%20A?unique=34fdd13)
|
Type number: R 5/7 |
52.98 € | |
![[103065] RIEGLER Motor protection relay (over-current relay) 6.10/10.3 A](/web/image/product.template/171034/image_128/%5B103065%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%206.10-10.3%20A?unique=ac7b901)
|
Type number: R 5/10.3 |
52.98 € | |
![[103066] RIEGLER Motor protection relay (over-current relay) 9.00/14.0 A](/web/image/product.template/171035/image_128/%5B103066%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%209.00-14.0%20A?unique=d9ad645)
|
Type number: R 5/14 |
72.77 € | |
![[103067] RIEGLER Motor protection relay (over-current relay) 11.0/18.0 A](/web/image/product.template/171036/image_128/%5B103067%5D%20RIEGLER%20Motor%20protection%20relay%20%28over-current%20relay%29%2011.0-18.0%20A?unique=c1dca6f)
|
Type number: R 5/18 |
72.77 € | |

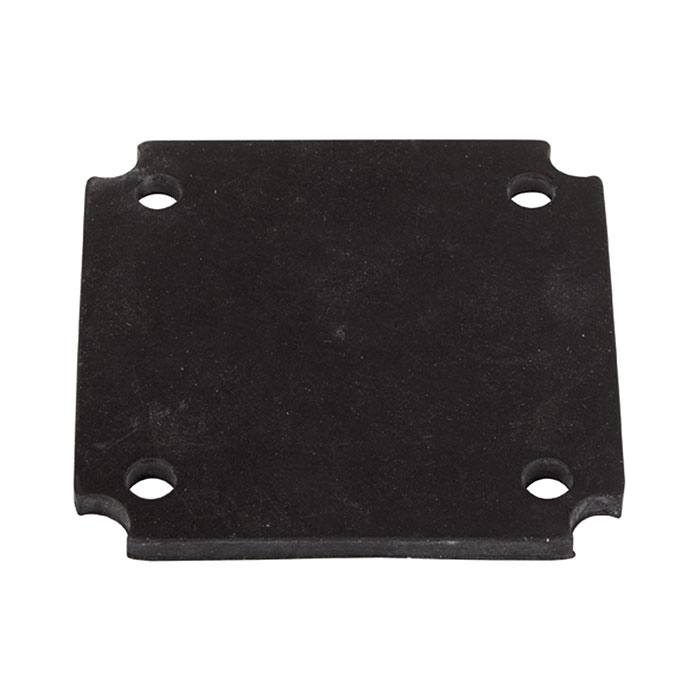

![[103068] RIEGLER Diaphragm](/web/image/product.template/171037/image_128/%5B103068%5D%20RIEGLER%20Diaphragm?unique=77c380f)
|
Type number: M 500 |
4.41 € | |

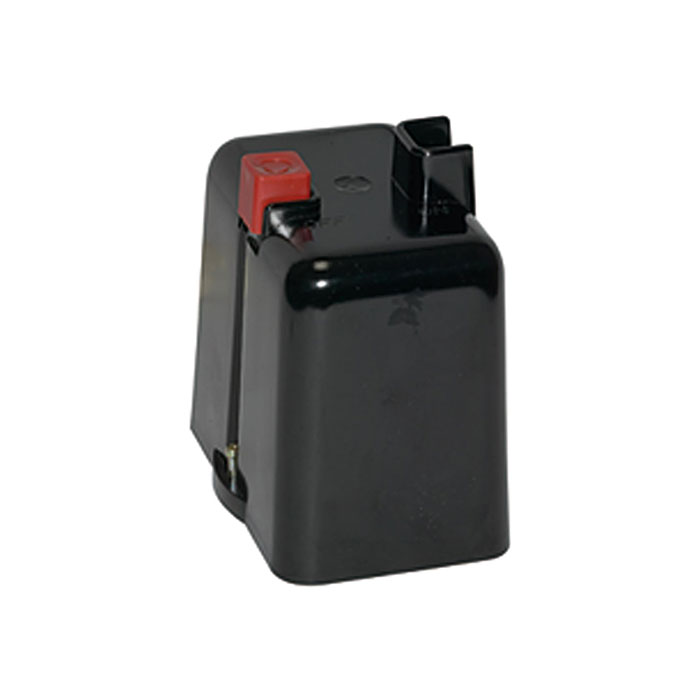

![[103069] RIEGLER Hood with on / off switch](/web/image/product.template/171038/image_128/%5B103069%5D%20RIEGLER%20Hood%20with%20on%20-%20off%20switch?unique=4ae0a09)
|
Type number: H 5-K |
16.27 € | |

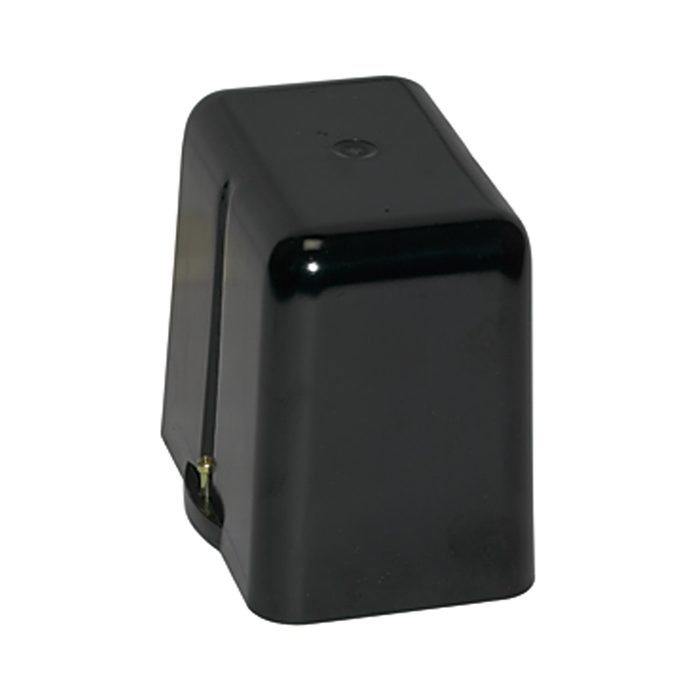

![[103070] RIEGLER Hood without on / off switch](/web/image/product.template/171039/image_128/%5B103070%5D%20RIEGLER%20Hood%20without%20on%20-%20off%20switch?unique=32ac2bb)
|
