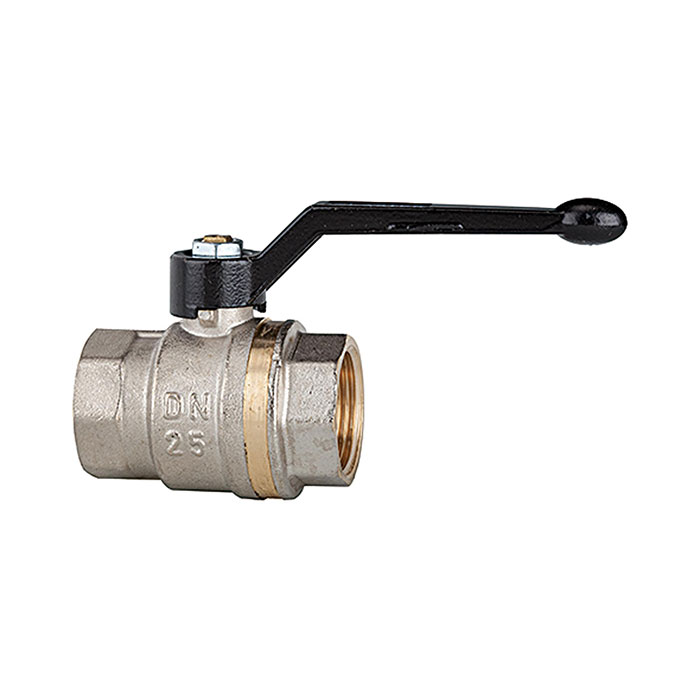

RIEGLER Ball valve standard type, full passage, IT/IT, G 3/8
Type number: 330.03
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

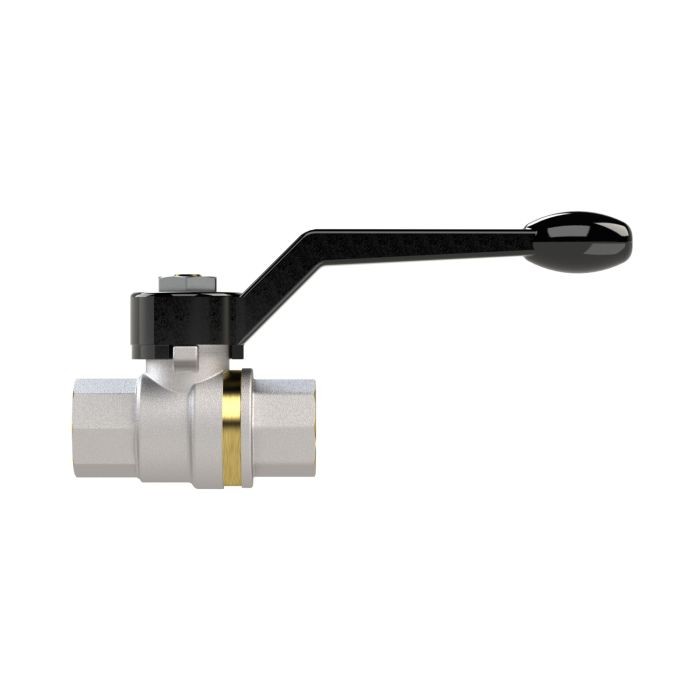

RIEGLER Ball valve made of nickel-plated brass, for industrial systems, G 3/8 - Type 330.03
The RIEGLER ball valve, light version, full bore, IG/IG, MS ver., G 3/8 opens or shuts off the media flow with a quarter turn - full bore with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -15 °C and 90 °C. Connection thread G 3/8 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | 2 O-rings HNBR/EPDM peroxide cross-linked, PTFE sealing washer |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | G 3/8 |
| DN | 10 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

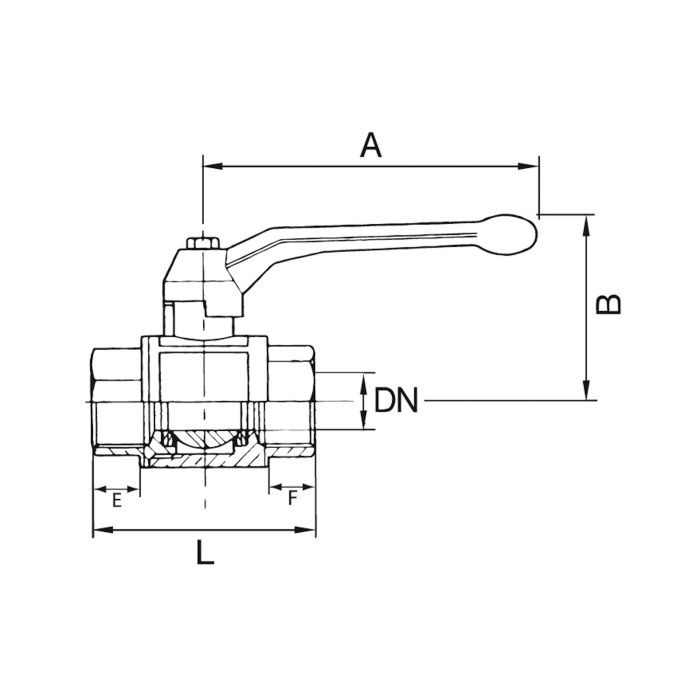

| A | 85 mm |
| B | 42 mm |
| L | 50 mm |
| E | 12 mm |
| F | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103128] RIEGLER Ball valve standard design full passage, IT/IT, G 1 1/4](/web/image/product.template/171097/image_128/%5B103128%5D%20RIEGLER%20Ball%20valve%20standard%20design%20full%20passage%2C%20IT-IT%2C%20G%201%201-4?unique=babcb97)
|
Type number: 330.07 |
31.78 € | |
![[103127] RIEGLER Ball valve standard type, full passage, IT/IT, G 1](/web/image/product.template/171096/image_128/%5B103127%5D%20RIEGLER%20Ball%20valve%20standard%20type%2C%20full%20passage%2C%20IT-IT%2C%20G%201?unique=a77bccd)
|
Type number: 330.06 |
19.65 € | |
![[103129] RIEGLER Ball valve standard type, full passage, IT/IT, G 1 1/2](/web/image/product.template/171098/image_128/%5B103129%5D%20RIEGLER%20Ball%20valve%20standard%20type%2C%20full%20passage%2C%20IT-IT%2C%20G%201%201-2?unique=2f8da97)
|
Type number: 330.08 |
47.83 € | |
![[103125] RIEGLER Ball valve standard type, full passage, IT/IT, G 1/2](/web/image/product.template/171094/image_128/%5B103125%5D%20RIEGLER%20Ball%20valve%20standard%20type%2C%20full%20passage%2C%20IT-IT%2C%20G%201-2?unique=dfde9b1)
|
Type number: 330.04 |
9.75 € | |

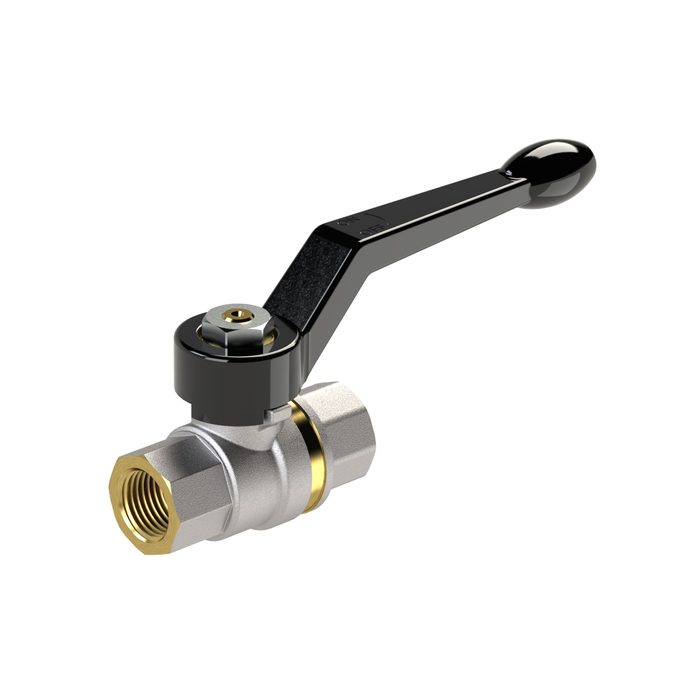

![[103123] RIEGLER Ball valve standard type, full passage, IT/IT, G 1/4](/web/image/product.template/171092/image_128/%5B103123%5D%20RIEGLER%20Ball%20valve%20standard%20type%2C%20full%20passage%2C%20IT-IT%2C%20G%201-4?unique=937b84e)
|
