RIEGLER Ball valve standard type, full passage, IT/ET, G 1/4
Type number: 331.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

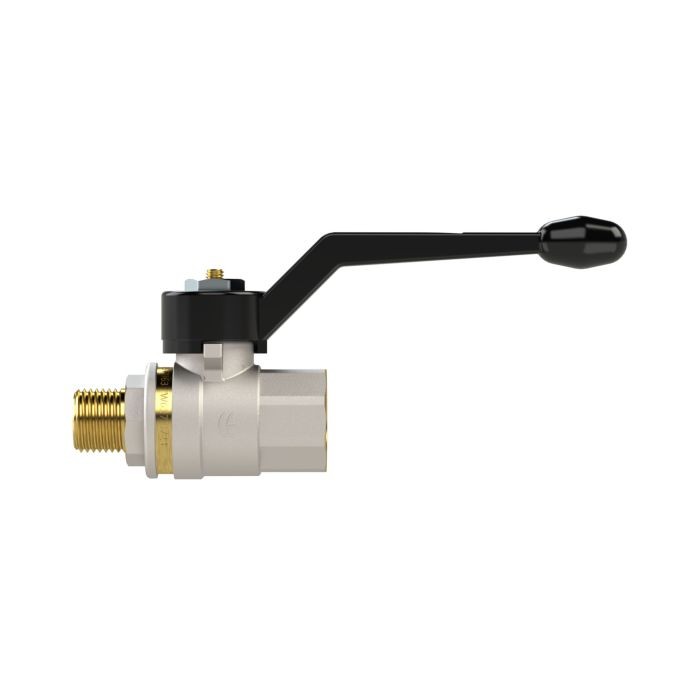

RIEGLER Ball valve made of nickel-plated brass, for industrial systems, G 1/4 - Type 331.02
The RIEGLER ball valve, light version, full bore, IG/AG, MS ver., G 1/4 opens or shuts off the media flow with a quarter turn - full bore with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -15 °C and 90 °C. G 1/4 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | 2 O-rings HNBR/EPDM peroxide cross-linked, PTFE sealing washer |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/4 |
| DN | 8 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

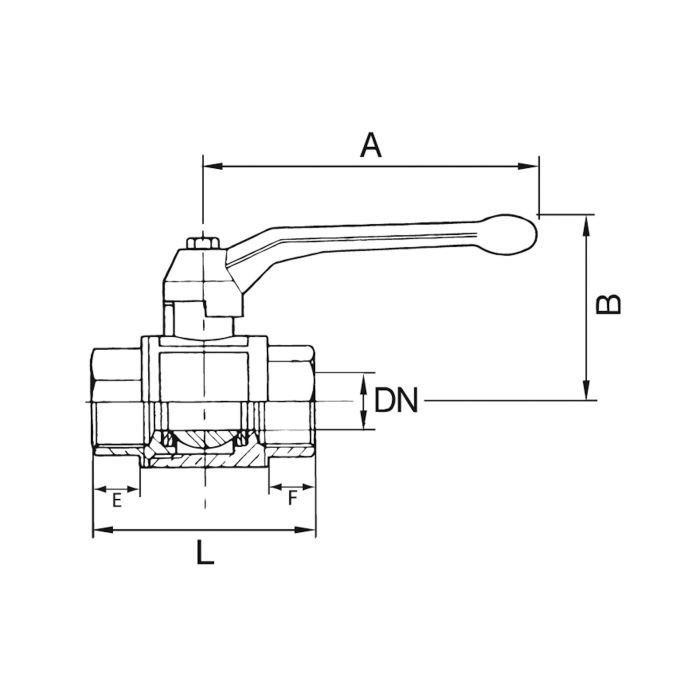

| A | 85 mm |
| B | 42 mm |
| L | 51 mm |
| E | 9.4 mm |
| F | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103137] RIEGLER Ball valve standard type, full passage, IT/ET, G 1](/web/image/product.template/171106/image_128/%5B103137%5D%20RIEGLER%20Ball%20valve%20standard%20type%2C%20full%20passage%2C%20IT-ET%2C%20G%201?unique=491c9b7)
|
Type number: 331.06 |
19.65 € | |

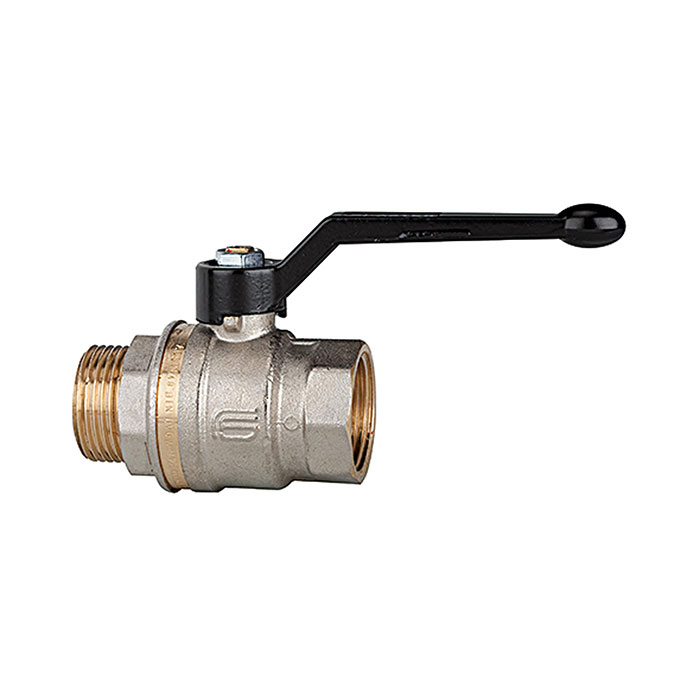

![[103139] RIEGLER Ball valve standard type, full passage, IT/ET, G 1 1/2](/web/image/product.template/171108/image_128/%5B103139%5D%20RIEGLER%20Ball%20valve%20standard%20type%2C%20full%20passage%2C%20IT-ET%2C%20G%201%201-2?unique=a4cffe9)
|
