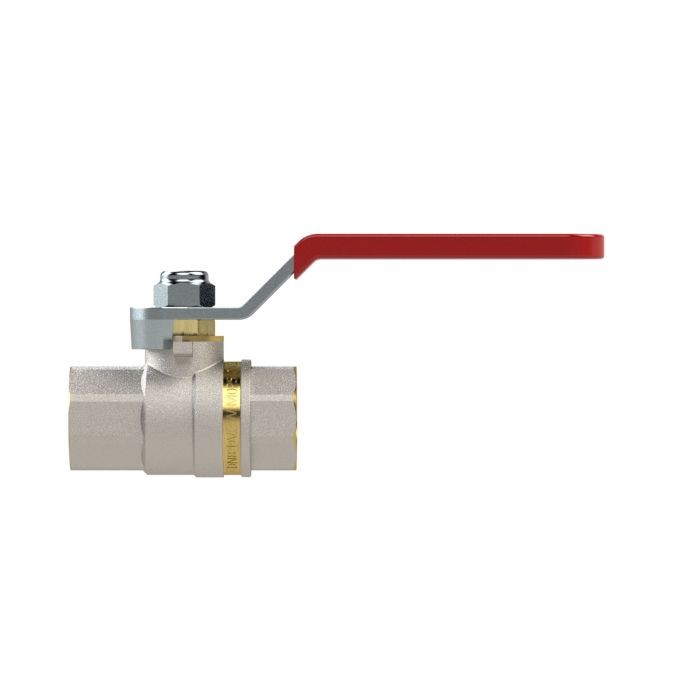

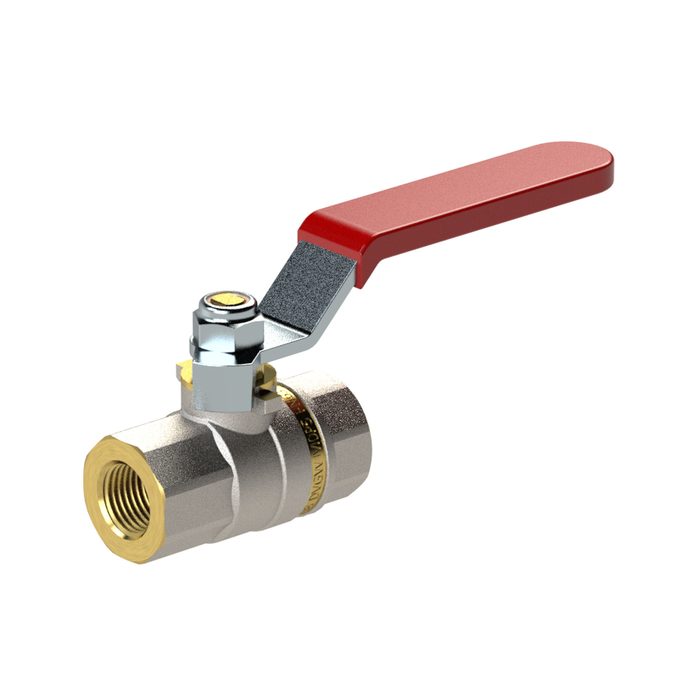

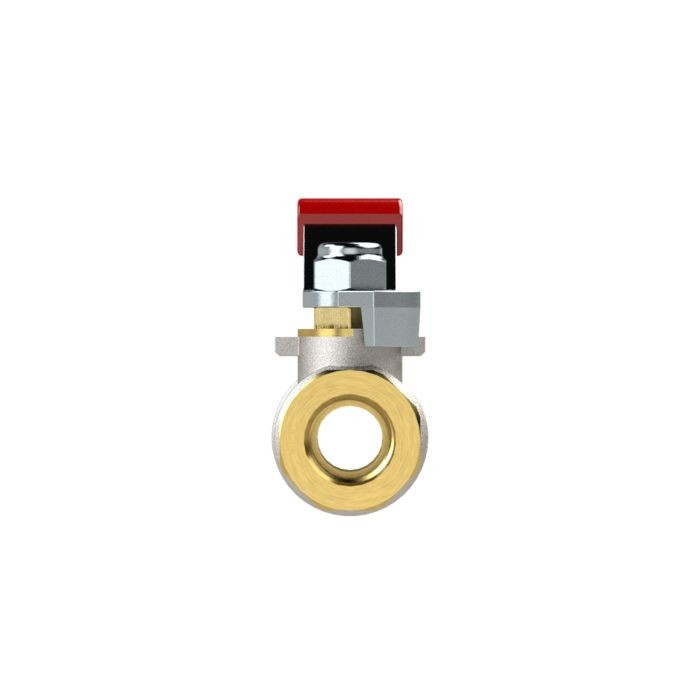

RIEGLER Ball valve standard design, red steel lever, IT/IT, G 1 1/4
Type number: 330.07-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve standard version made of nickel-plated brass, for industrial systems, G 1 1/4 - Type 330.07-R
The RIEGLER ball valve standard version, red lever, IG/IG, MS nickel-plated, G 1 1/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -15 °C and 90 °C. Connection thread G 1 1/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | 2 O-rings HNBR/EPDM peroxide cross-linked, PTFE sealing washer |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| PN | 40 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

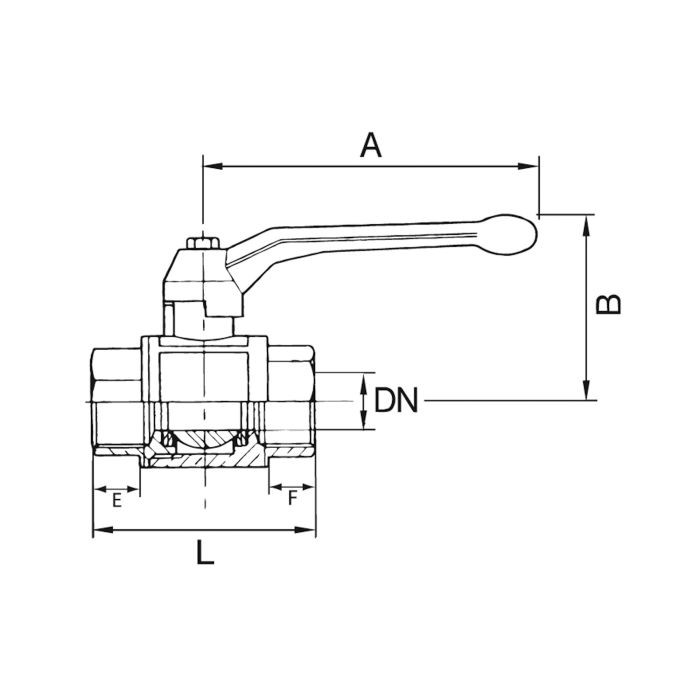

| A | 130 mm |
| B | 63.1 mm |
| L | 80 mm |
| E | 13.5 mm |
| F | 13.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
