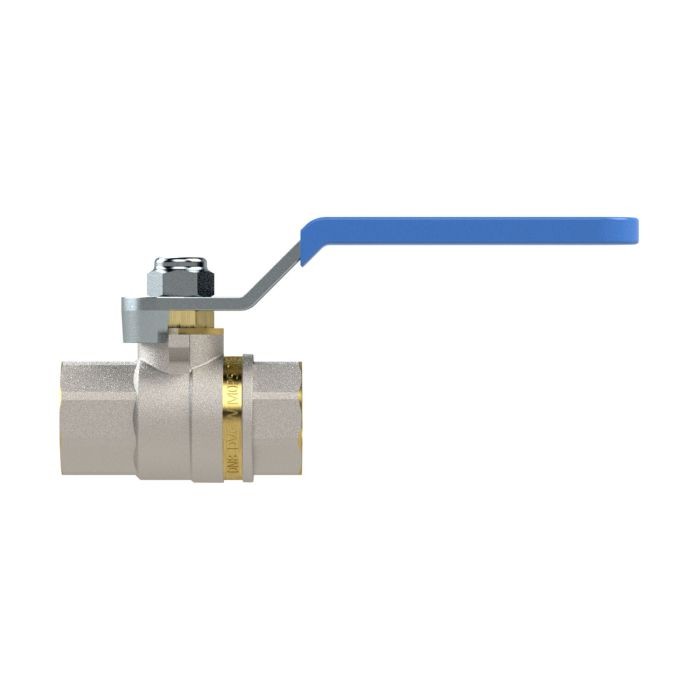

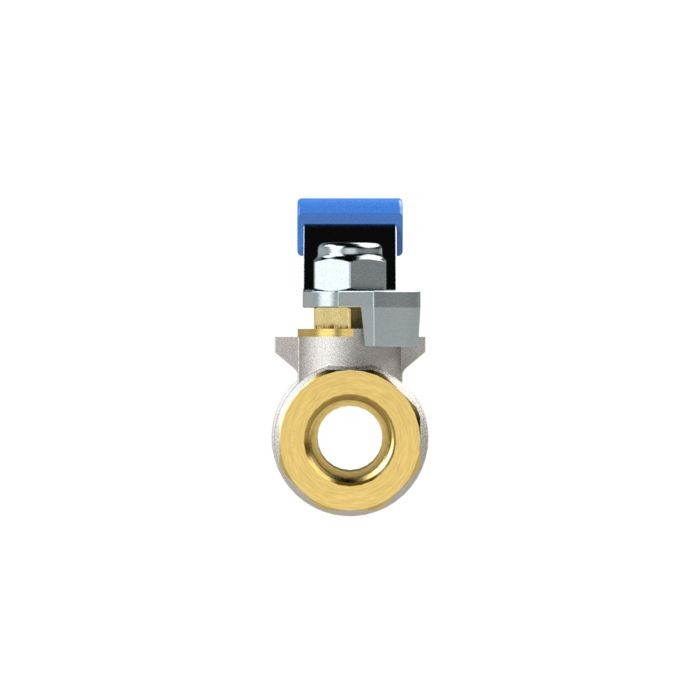

RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 1/4
Type number: 330.02-B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve standard version made of nickel-plated brass, for industrial systems, G 1/4 - Type 330.02-B
The RIEGLER ball valve standard version, blue lever, IG/IG, MS nickel-plated, G 1/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -15 °C and 90 °C. G 1/4 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | 2 O-rings HNBR/EPDM peroxide cross-linked, PTFE sealing washer |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/4 |
| DN | 8 |
| PN | 63 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

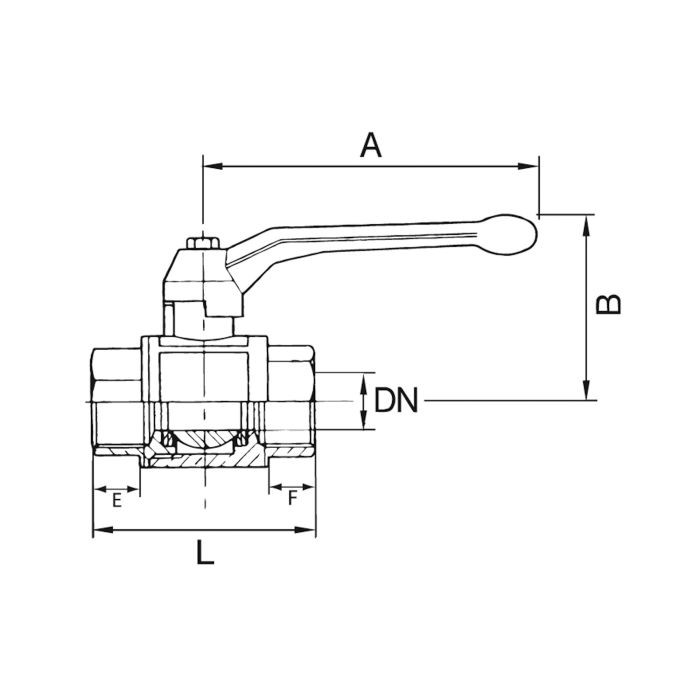

| A | 85 mm |
| B | 37.2 mm |
| L | 46 mm |
| E | 12 mm |
| F | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103181] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 1](/web/image/product.template/171150/image_128/%5B103181%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%201?unique=9294f4e)
|
Type number: 330.06-B |
20.77 € | |
![[103183] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 1 1/2](/web/image/product.template/171152/image_128/%5B103183%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%201%201-2?unique=1e32bdb)
|
Type number: 330.08-B |
50.52 € | |
![[103182] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 1 1/4](/web/image/product.template/171151/image_128/%5B103182%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%201%201-4?unique=dbbcc37)
|
Type number: 330.07-B |
33.56 € | |
![[103179] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 1/2](/web/image/product.template/171148/image_128/%5B103179%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%201-2?unique=44857a2)
|
Type number: 330.04-B |
9.56 € | |
![[103184] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 2](/web/image/product.template/171153/image_128/%5B103184%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%202?unique=e42fe4f)
|
Type number: 330.09-B |
76.70 € | |

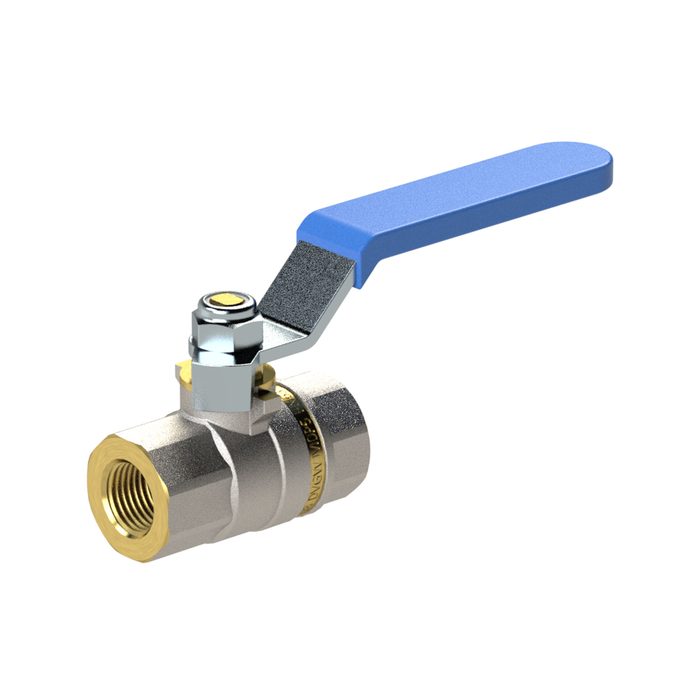

![[103185] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 2 1/2](/web/image/product.template/171154/image_128/%5B103185%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%202%201-2?unique=d8568c7)
|
Type number: 330.10-B |
151.14 € | |

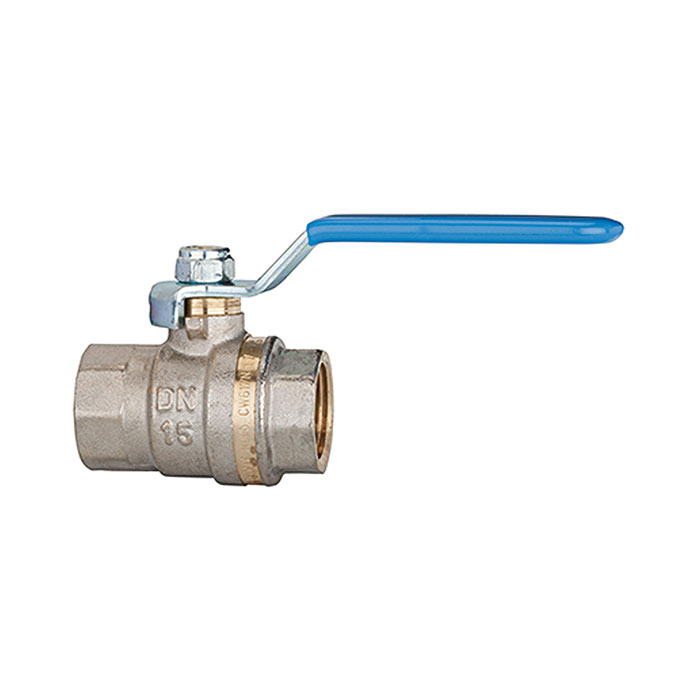

![[103186] RIEGLER Ball valve standard design, blue steel lever, IT/IT, G 3](/web/image/product.template/171155/image_128/%5B103186%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-IT%2C%20G%203?unique=d564f3c)
|
