RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 1/2
Type number: 331.04-B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve standard version made of nickel-plated brass, for industrial systems, G 1/2 - Type 331.04-B
The RIEGLER ball valve standard version, blue lever, IG/AG, MS nickel-plated, G 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -15 °C and 90 °C. G 1/2 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | 2 O-rings HNBR/EPDM peroxide cross-linked, PTFE sealing washer |
| Hand lever | Steel, with plastic coating |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/2 |
| DN | 15 |
| PN | 40 bar |
| Thread standard | G-thread according to DIN EN ISO 228-1 |

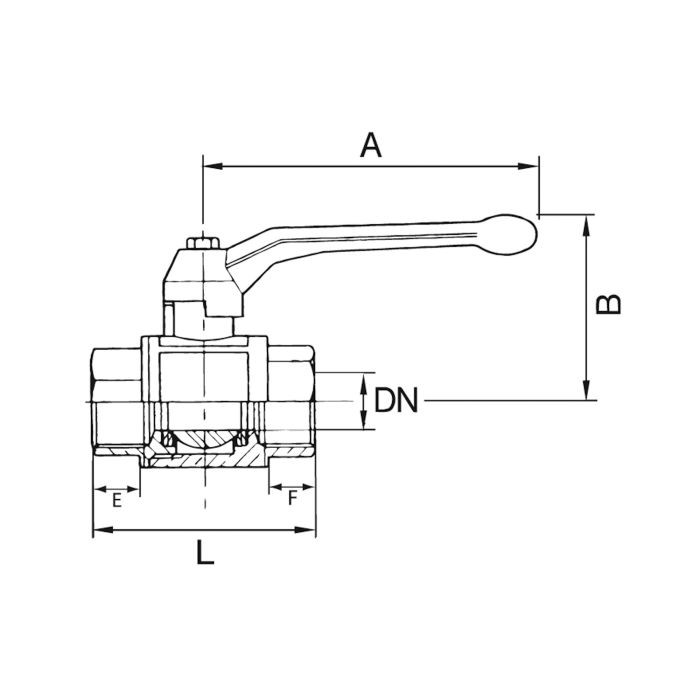

| A | 85 mm |
| B | 44.1 mm |
| L | 59.8 mm |
| E | 9.5 mm |
| F | 9.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103215] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 1](/web/image/product.template/171184/image_128/%5B103215%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%201?unique=011089d)
|
Type number: 331.06-B |
20.77 € | |
![[103217] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 1 1/2](/web/image/product.template/171186/image_128/%5B103217%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%201%201-2?unique=18551e0)
|
Type number: 331.08-B |
50.52 € | |
![[103216] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 1 1/4](/web/image/product.template/171185/image_128/%5B103216%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%201%201-4?unique=41aa068)
|
Type number: 331.07-B |
33.56 € | |
![[103211] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 1/4](/web/image/product.template/171180/image_128/%5B103211%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%201-4?unique=7c61b88)
|
Type number: 331.02-B |
9.39 € | |
![[103218] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 2](/web/image/product.template/171187/image_128/%5B103218%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%202?unique=cc0ce2e)
|
Type number: 331.09-B |
76.70 € | |
![[103214] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 3/4](/web/image/product.template/171183/image_128/%5B103214%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%203-4?unique=66dc9a9)
|
Type number: 331.05-B |
14.24 € | |

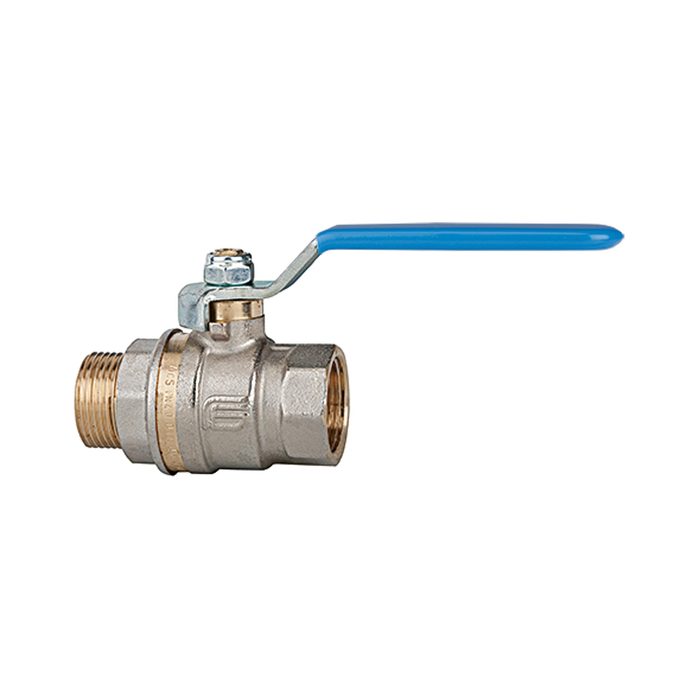

![[103212] RIEGLER Ball valve standard design, blue steel lever, IT/ET, G 3/8](/web/image/product.template/171181/image_128/%5B103212%5D%20RIEGLER%20Ball%20valve%20standard%20design%2C%20blue%20steel%20lever%2C%20IT-ET%2C%20G%203-8?unique=67664fb)
|
