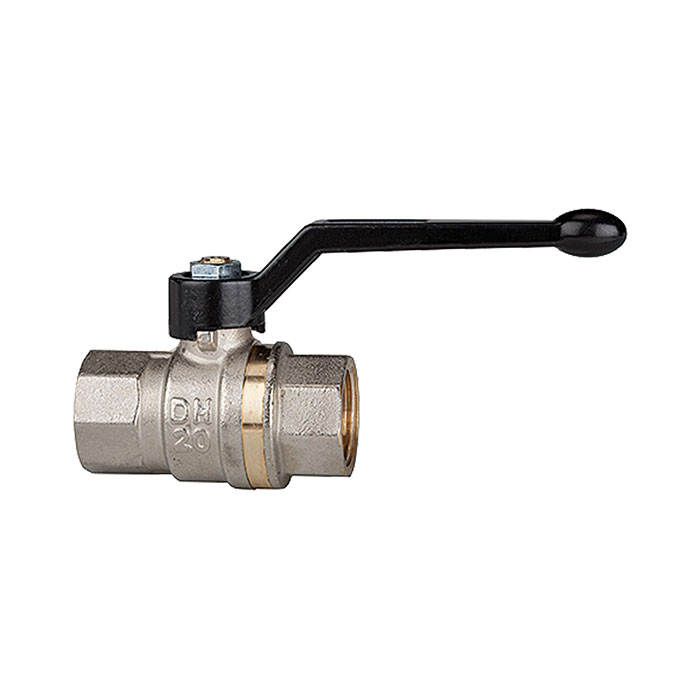

RIEGLER Ball valve long thread design, IT/IT, Rp 3/8
Type number: 336.03
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve long thread version, IG/IG, nickel-plated brass, operating temperature -15 °C to 90 °C, Rp 3/8, DN 10, PN max. 40 bar
| Max. operating pressure | 40 bar |
| Material | Nickel-plated brass |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | HNBR / EPDM / PTFE |
| Hand lever | Aluminum, painted black |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 90 °C |
| Thread | Rp 3/8 |
| DN | 10 |
| Thread standard | Thread according to ISO 7-1 |

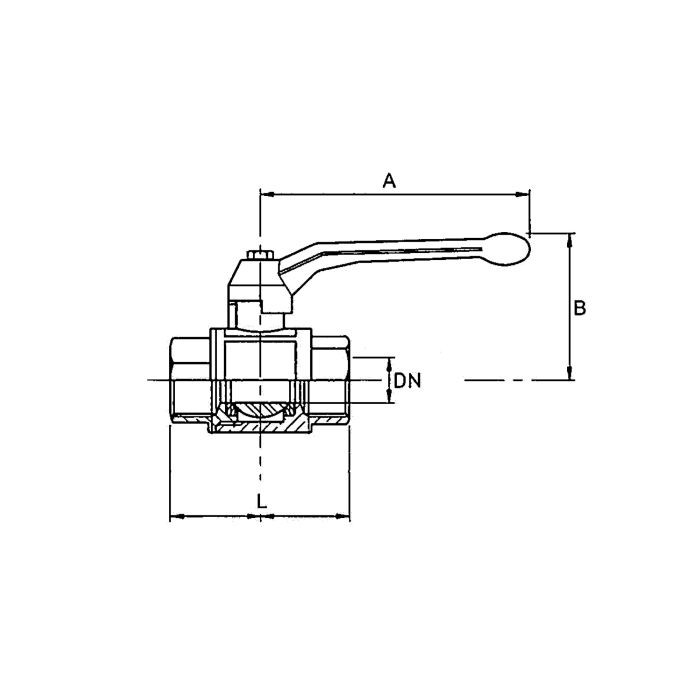

| A | 85 mm |
| B | 42 mm |
| L | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
