RIEGLER Ball valve not lockable, venting hole, Rp 1/2
Type number: 350.503
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass safety ball valve, for industrial systems, max. 12 bar - Type 350.503
The RIEGLER safety ball valve, non-locking, venting, MS nickel-plated, Rp 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass with PTFE seals. Designed for a maximum operating pressure of 12 bar. The operating temperature is between 0 °C and 60 °C. Connection thread Rp 1/2 (Rp thread to ISO 7-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Sealing material | PTFE |
| Max. operating pressure | 12 bar |
| Ball | Nickel-plated brass |
| Hand lever | Die-cast aluminum, black |
| Spindle | Nickel-plated brass |
| Stuffing box | Nickel-plated brass |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 60 °C |
| Thread | Rp 1/2 |
| DN | 15 |
| Thread standard | Rp thread according to ISO 7-1 |

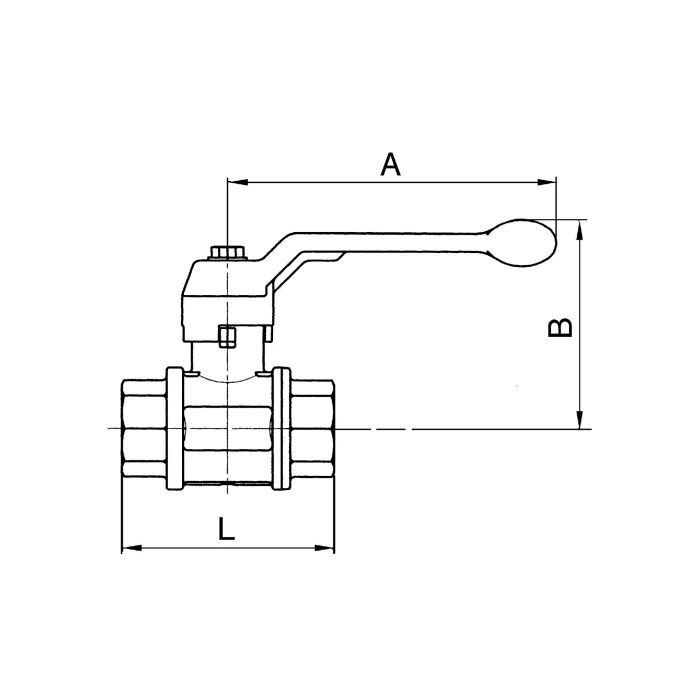

| A | 100 mm |
| B | 64 mm |
| L | 69 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Theme shop | SAFETY |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103257] RIEGLER Ball valve not lockable, venting hole, Rp 1](/web/image/product.template/171224/image_128/%5B103257%5D%20RIEGLER%20Ball%20valve%20not%20lockable%2C%20venting%20hole%2C%20Rp%201?unique=6308f88)
|
Type number: 350.505 |
43.68 € | |
![[103259] RIEGLER Ball valve not lockable, venting hole, Rp 1 1/2](/web/image/product.template/171226/image_128/%5B103259%5D%20RIEGLER%20Ball%20valve%20not%20lockable%2C%20venting%20hole%2C%20Rp%201%201-2?unique=260b471)
|
Type number: 350.507 |
98.47 € | |

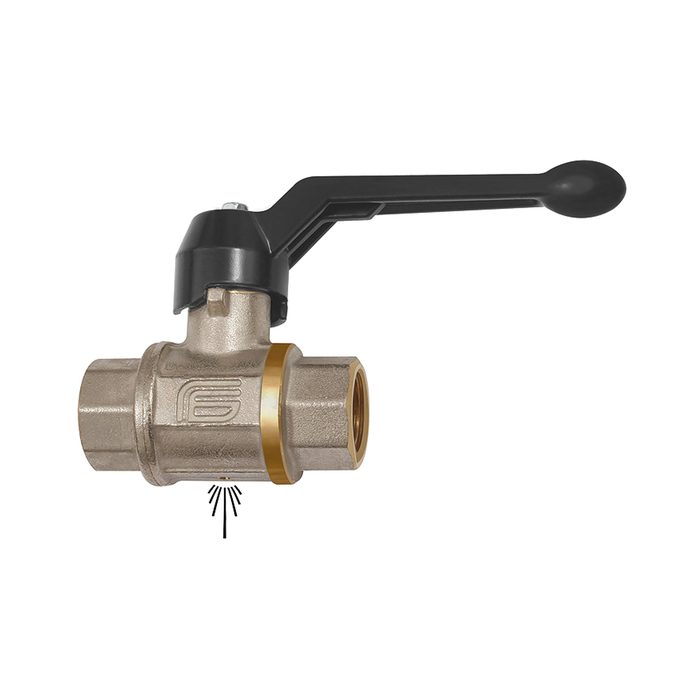

![[103258] RIEGLER Ball valve not lockable, venting hole, Rp 1 1/4](/web/image/product.template/171225/image_128/%5B103258%5D%20RIEGLER%20Ball%20valve%20not%20lockable%2C%20venting%20hole%2C%20Rp%201%201-4?unique=56f37f8)
|
