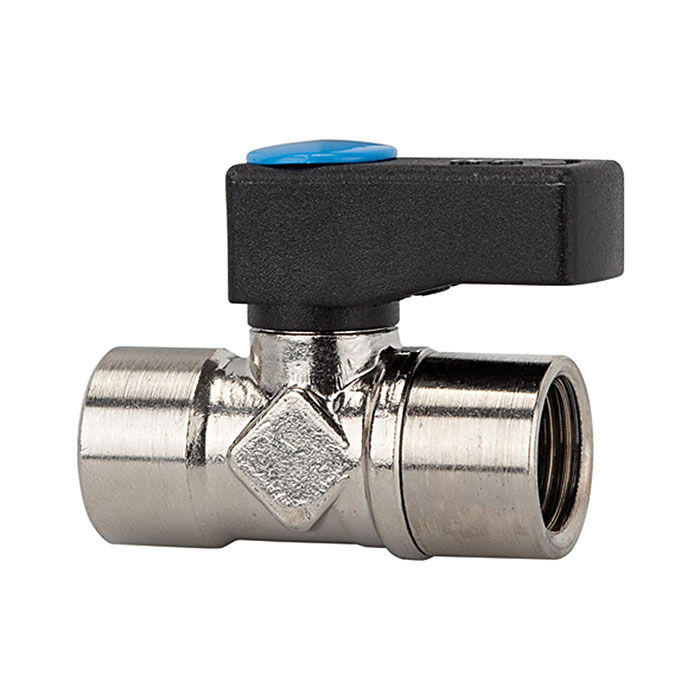

RIEGLER Mini ball valve, Rotating handle, nickel-plated brass, G 3/8 IT
Type number: 371.103
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini ball valve made of nickel-plated brass, for industrial systems, max. 10 bar - Type 371.103
The RIEGLER mini ball valve, rotary handle, nickel-plated brass, G 3/8 female thread opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -10 °C and 80 °C. Connection thread G 3/8 IG (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | Plastic |
| Thread | G 3/8 IG |
| DN | 8 |

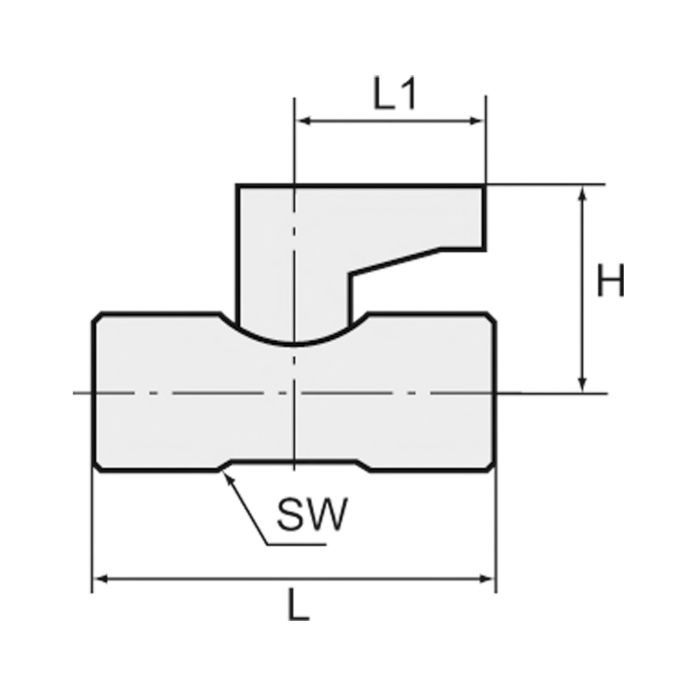

| SW | 17 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| L | 43 mm |
| H | 24 mm |
| L1 | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
