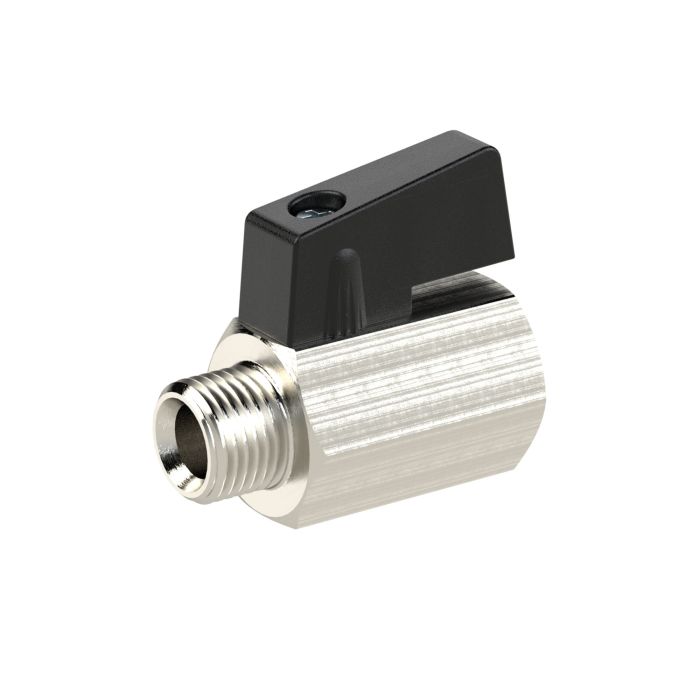

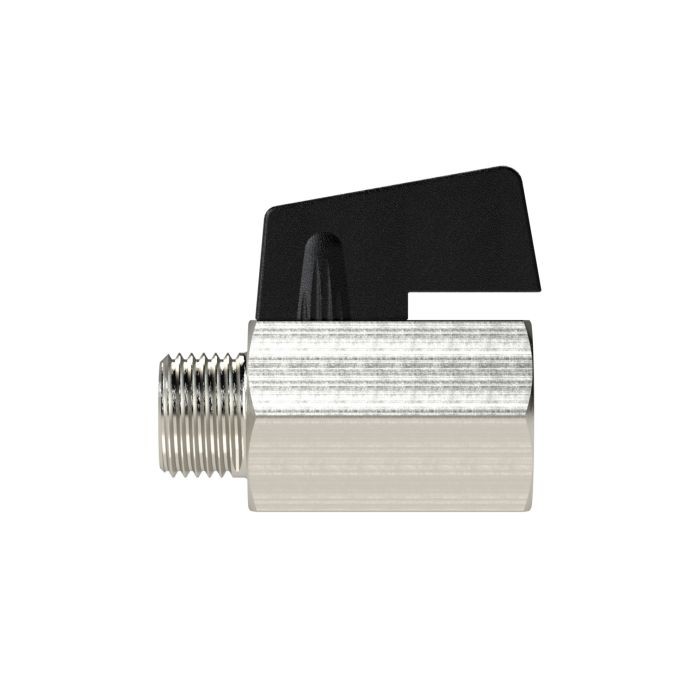

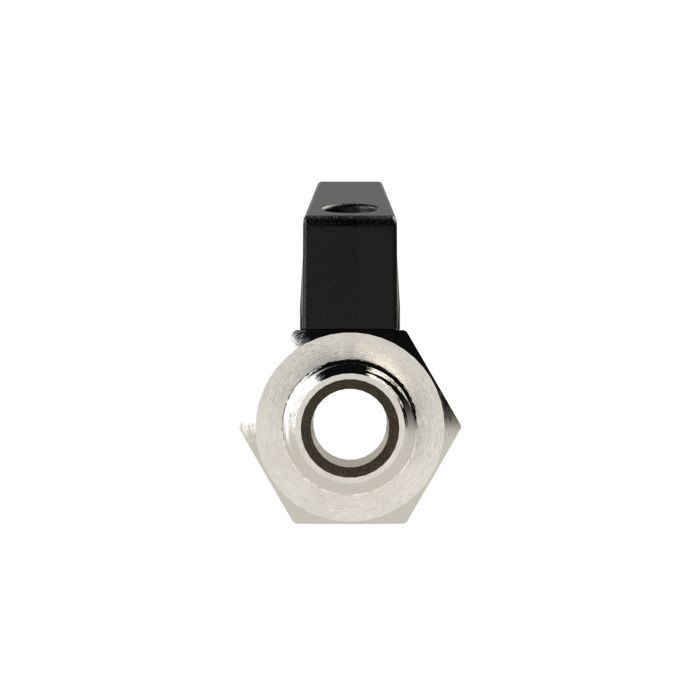

RIEGLER Mini ball valve Smooth surface nickel-plated brass G1/2IT/ET DN10
Type number: 375.33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mini ball valve, smooth surface, rotary handle, MS, medium/ambient temp. -10°C to 70°C (short-term 90°C) G 1/2 female/male, DN10, PN max. 10 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 70 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 70 °C |
| Area of application | Compressed air, water, oils, non-toxic gases |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | Plastic |
| Thread | G 1/2 IG/AG |
| DN | 10 |

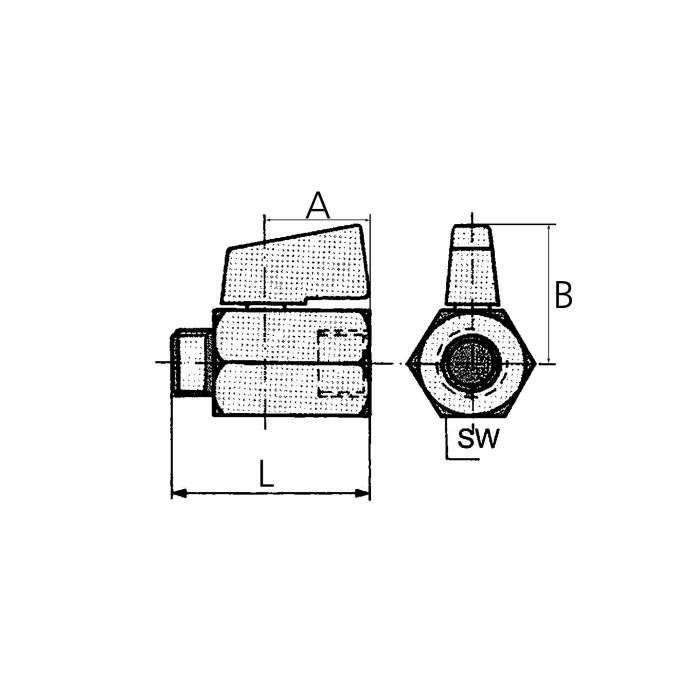

| SW | 24 mm |
| A | 22 mm |
| B | 29.5 mm |
| L | 45 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Nickel-plated brass |
| Class name | EASY |
