RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 1 1/2, DN 40
Type number: 1084 G
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-way ball valve made of nickel-plated brass, for industrial systems, Rp 1 1/2 - type 1084 G
The RIEGLER 3-way ball valve, T-bore, nickel-plated brass, Rp 1 1/2, DN 40 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass with PTFE / FKM seals. The permissible medium temperature is between -15 °C and 100 °C. Connection thread Rp 1 1/2 (Rp thread to ISO 7-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Sealing material | PTFE / FKM |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 100 °C |
| Ball | Brass bright |
| Hand lever | Aluminum, painted black |
| Spring | Stainless steel |
| Position indicator | Galvanized steel |
| Thread | Rp 1 1/2 |
| DN | 40 |
| Thread standard | Rp thread according to ISO 7-1 |
| Bore ball | 35 |
| Max. operating pressure at 20 °C | 16 bar |
| A | 195 mm |
| B | 125 mm |
| L | 147 mm |
| Execution | sealing on all sides, T-bore |
| E | 40 mm |
| F | 114 mm |
| C Ø | 78 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103396] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 1 1/4, DN 32](/web/image/product.template/171363/image_128/%5B103396%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%201%201-4%2C%20DN%2032?unique=10468b2)
|
Type number: 1084 F |
153.00 € | |
![[103393] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 1/2, DN 15](/web/image/product.template/171360/image_128/%5B103393%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%201-2%2C%20DN%2015?unique=4563b37)
|
Type number: 1084 C |
61.31 € | |
![[103391] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 1/4, DN 8](/web/image/product.template/171358/image_128/%5B103391%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%201-4%2C%20DN%208?unique=7711cf3)
|
Type number: 1084 A |
61.31 € | |
![[103395] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 1, DN 25](/web/image/product.template/171362/image_128/%5B103395%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%201%2C%20DN%2025?unique=e50a879)
|
Type number: 1084 E |
112.61 € | |
![[103398] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 2, DN 50](/web/image/product.template/171365/image_128/%5B103398%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%202%2C%20DN%2050?unique=110c371)
|
Type number: 1084 H |
274.05 € | |
![[103394] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 3/4, DN 20](/web/image/product.template/171361/image_128/%5B103394%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%203-4%2C%20DN%2020?unique=d159444)
|
Type number: 1084 D |
79.49 € | |

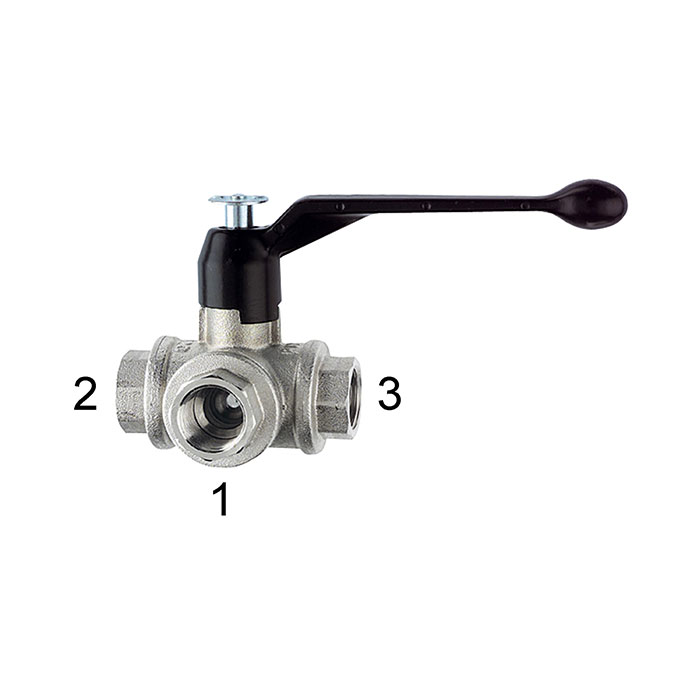

![[103392] RIEGLER 3-way ball valve, T-hole, nickel-plated brass, Rp 3/8, DN 10](/web/image/product.template/171359/image_128/%5B103392%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20nickel-plated%20brass%2C%20Rp%203-8%2C%20DN%2010?unique=aa0f33c)
|
