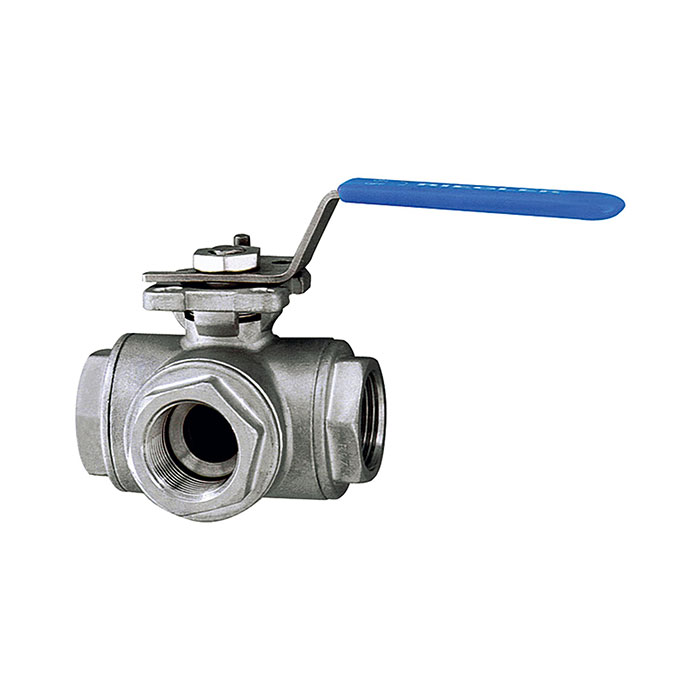

RIEGLER 3-way ball valve, T-hole, Stainless steel 1.4408, G 1 1/4, DN 32
Type number: 1082 F-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-way ball valve made of stainless steel 1.4408, for industrial systems, max. 63 bar - Type 1082 F-ES
The RIEGLER 3-way ball valve, T-bore, stainless steel 1.4408, G 1 1/4, DN 32 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408 with RTFE seals. Designed for a maximum operating pressure of 63 bar. Connection thread G 1 1/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Sealing material | RTFE |
| Max. operating pressure | 63 bar |
| Material | Stainless steel 1.4408 |
| Hand lever | Stainless steel |
| Operating temperature max. | 160 °C |
| Thread | G 1 1/4 |
| DN | 32 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 187 mm |
| B | 92 mm |
| L | 123 mm |
| C Ø | 25 mm |
