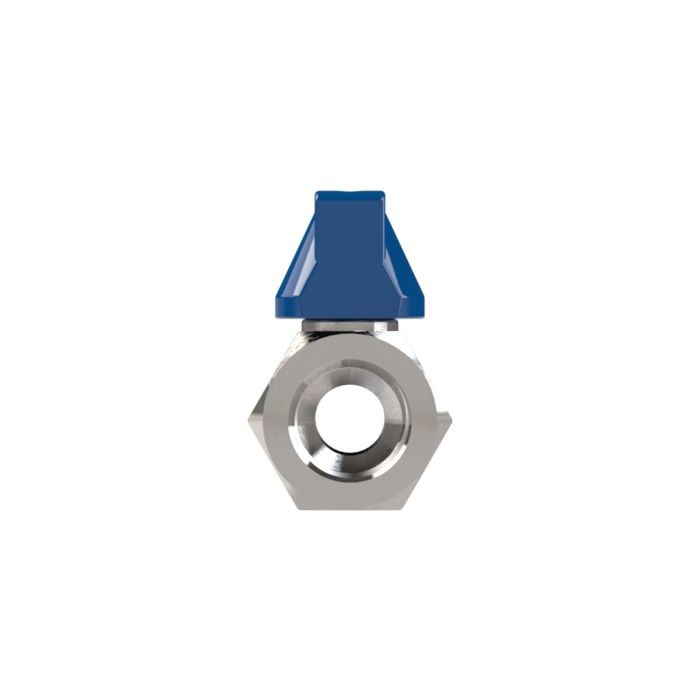

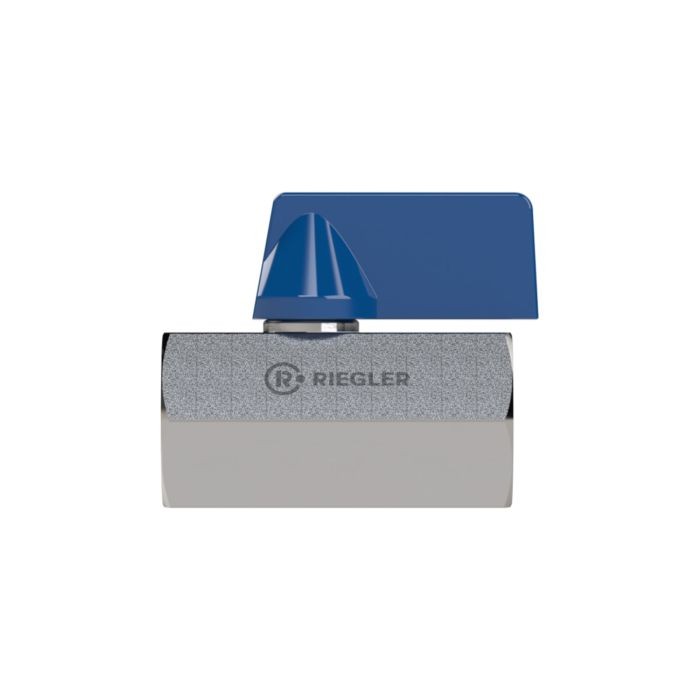

RIEGLER Mini ball valve, Stainless steel 1.4408 CF8M, IT/IT, G 1/4, DN 8
Type number: 376.01-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini ball valve made of stainless steel 1.4408 CF8M, for industrial systems, max. 63 bar - Type 376.01-ES
The RIEGLER mini ball valve, stainless steel 1.4401, IG/IG, G 1/4, DN 8 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408 CF8M with FKM seals. Designed for a maximum operating pressure of 63 bar. The operating temperature is between -20 °C and 120 °C. G 1/4 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Sealing material | FKM |
| Max. operating pressure | 63 bar |
| Material | Stainless steel 1.4408 CF8M |
| Ball seal | PTFE |
| Spindle | Stainless steel 1.4408 CF8M |
| Rotary handle | Aluminum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/4 |
| DN | 8 |

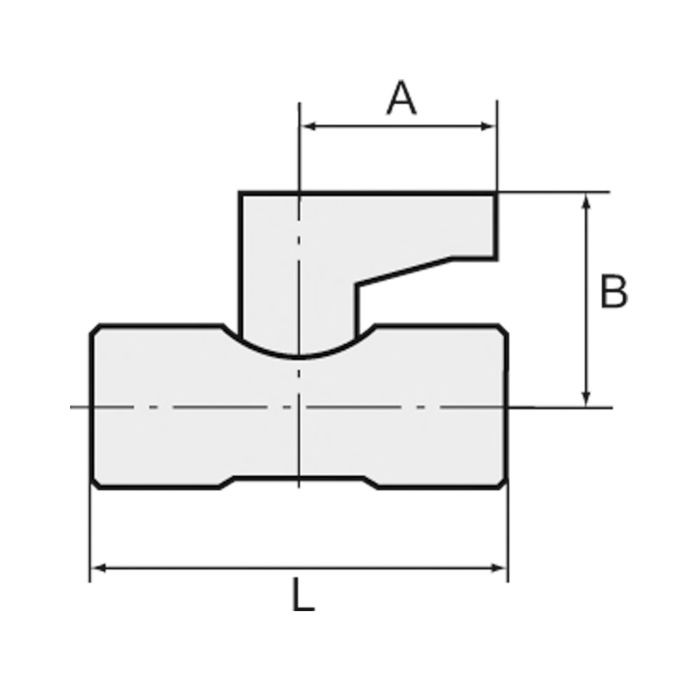

| A | 22.8 mm |
| B | 26.5 mm |
| L | 40 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

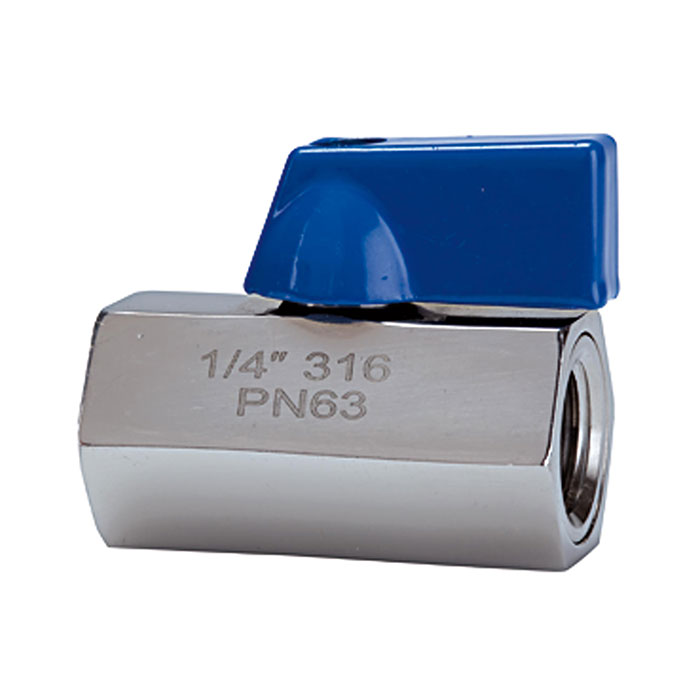

![[103491] RIEGLER Mini ball valve, Stainless steel 1.4408 CF8M, IT/IT, G 1/2, DN 15](/web/image/product.template/171453/image_128/%5B103491%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Stainless%20steel%201.4408%20CF8M%2C%20IT-IT%2C%20G%201-2%2C%20DN%2015?unique=2f4b3a2)
|
