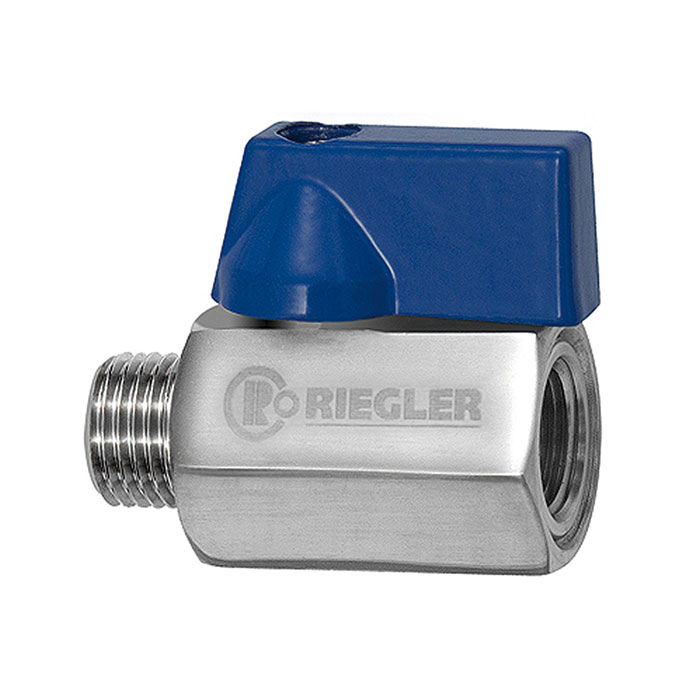

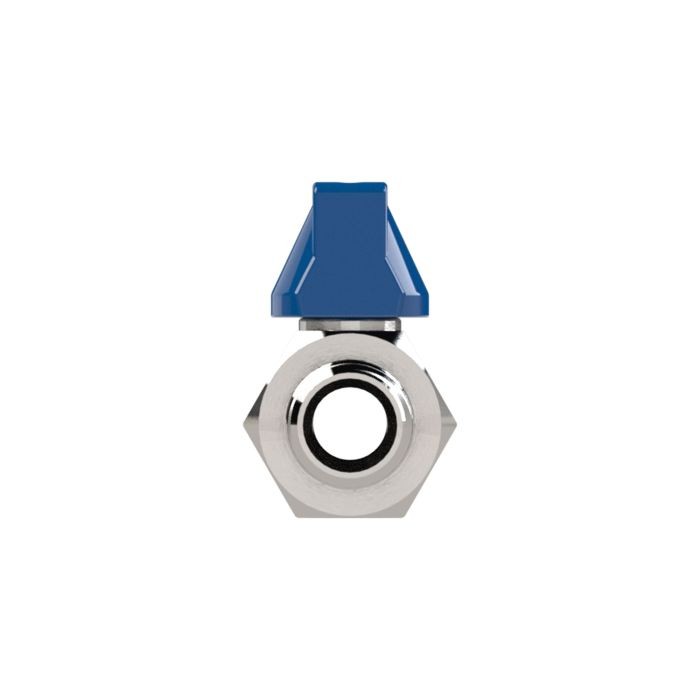

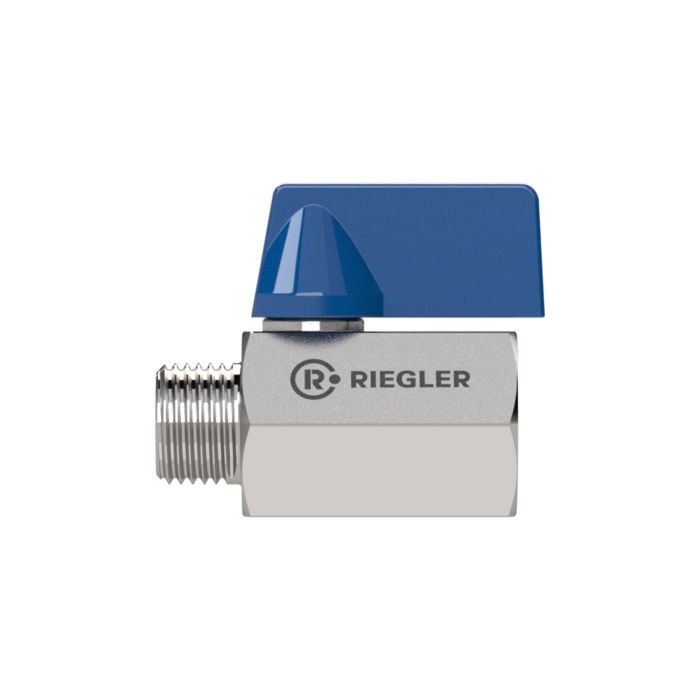

RIEGLER Mini ball valve, Stainless steel 1.4408 CF8M, IT/ET, G 1/2, DN 15
Type number: 377.03-ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve, Stainless steel 1.4408 CF8M, IT/ET, Operating temperature -20 °C to 120 °C, G 1/2, DN 15, PN max. 63 bar
| Sealing material | FKM |
| Max. operating pressure | 63 bar |
| Material | Stainless steel 1.4408 CF8M |
| Ball seal | PTFE |
| Spindle | Stainless steel 1.4408 CF8M |
| Rotary handle | Aluminum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/2 |
| DN | 15 |

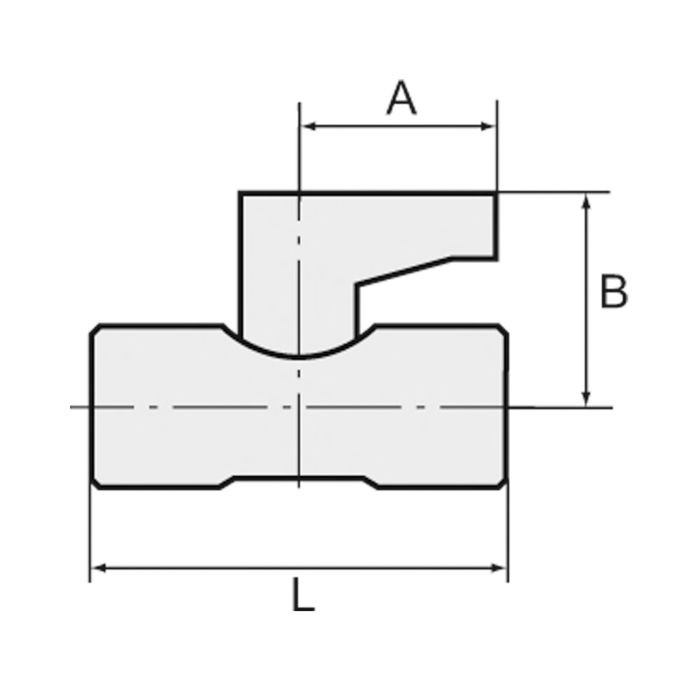

| A | 22.8 mm |
| B | 28.3 mm |
| L | 46 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

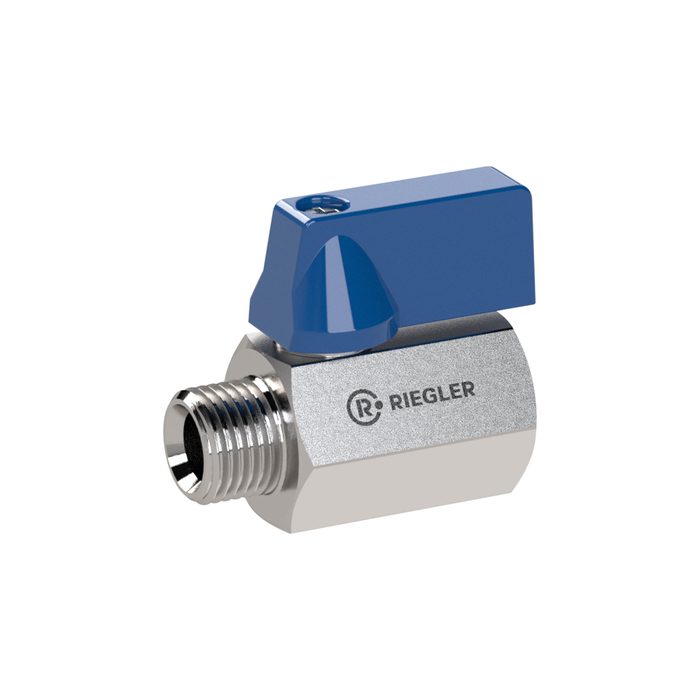

![[103492] RIEGLER Mini ball valve, Stainless steel 1.4408 CF8M, IT/ET, G 1/4, DN 8](/web/image/product.template/171454/image_128/%5B103492%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Stainless%20steel%201.4408%20CF8M%2C%20IT-ET%2C%20G%201-4%2C%20DN%208?unique=bf7055f)
|
