RIEGLER Stainless steel ball valve, Pneumat. actuation drive, T-hole T1
Type number: 350.914-T1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES-Kuha for industrial systems, max. 63 bar, Rp 1 - Type 350.914-T1
The RIEGLER ES-Kuha, pneumat. Actuator double-acting, T-bore T1, Rp 1 opens or blocks the media flow with a quarter turn - full flow with minimum pressure loss. Designed for a maximum operating pressure of 63 bar. The operating temperature is between -20 °C and 70 °C. Rp 1 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Max. operating pressure | 63 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | according to NAMUR |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Stainless steel 1.4401, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 |
| DN | 25 |
| SW | 41 mm |
| Position | T 1 |
| A | 133 mm |
| B | 148.5 mm |
| D | 28.5 mm |
| L | 90 mm |
| Execution | double-acting |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103626] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, T-hole T1](/web/image/product.template/171588/image_128/%5B103626%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20T-hole%20T1?unique=d36f013)
|
Type number: 350.912-T1 |
357.13 € | |
![[103629] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, T-hole T1](/web/image/product.template/171591/image_128/%5B103629%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20T-hole%20T1?unique=73e380c)
|
Type number: 350.915-T1 |
640.68 € | |
![[103630] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, T-hole T1](/web/image/product.template/171592/image_128/%5B103630%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20T-hole%20T1?unique=9a67f2b)
|
Type number: 350.916-T1 |
722.48 € | |

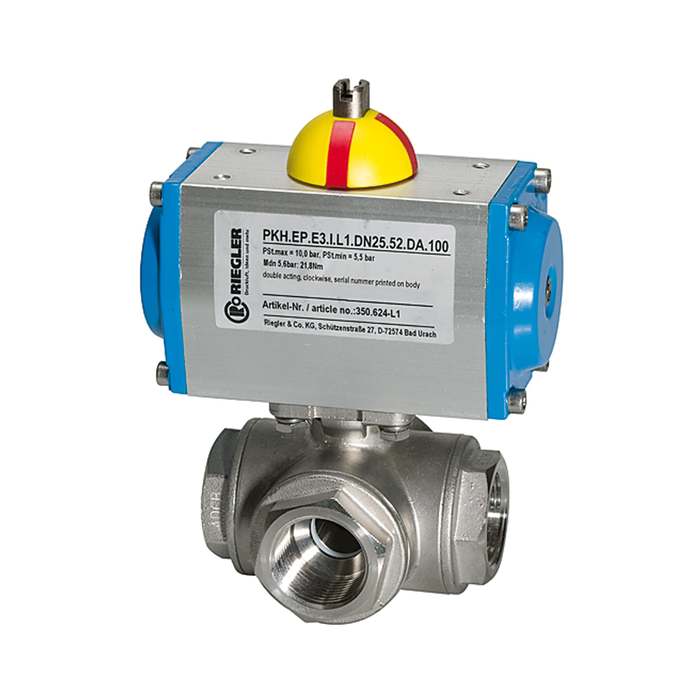

![[159746] RIEGLER Stainless steel ball valve, Pneumat. actuation drive, T-hole T1](/web/image/product.template/216138/image_128/%5B159746%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20Pneumat.%20actuation%20drive%2C%20T-hole%20T1?unique=b301e11)
|
